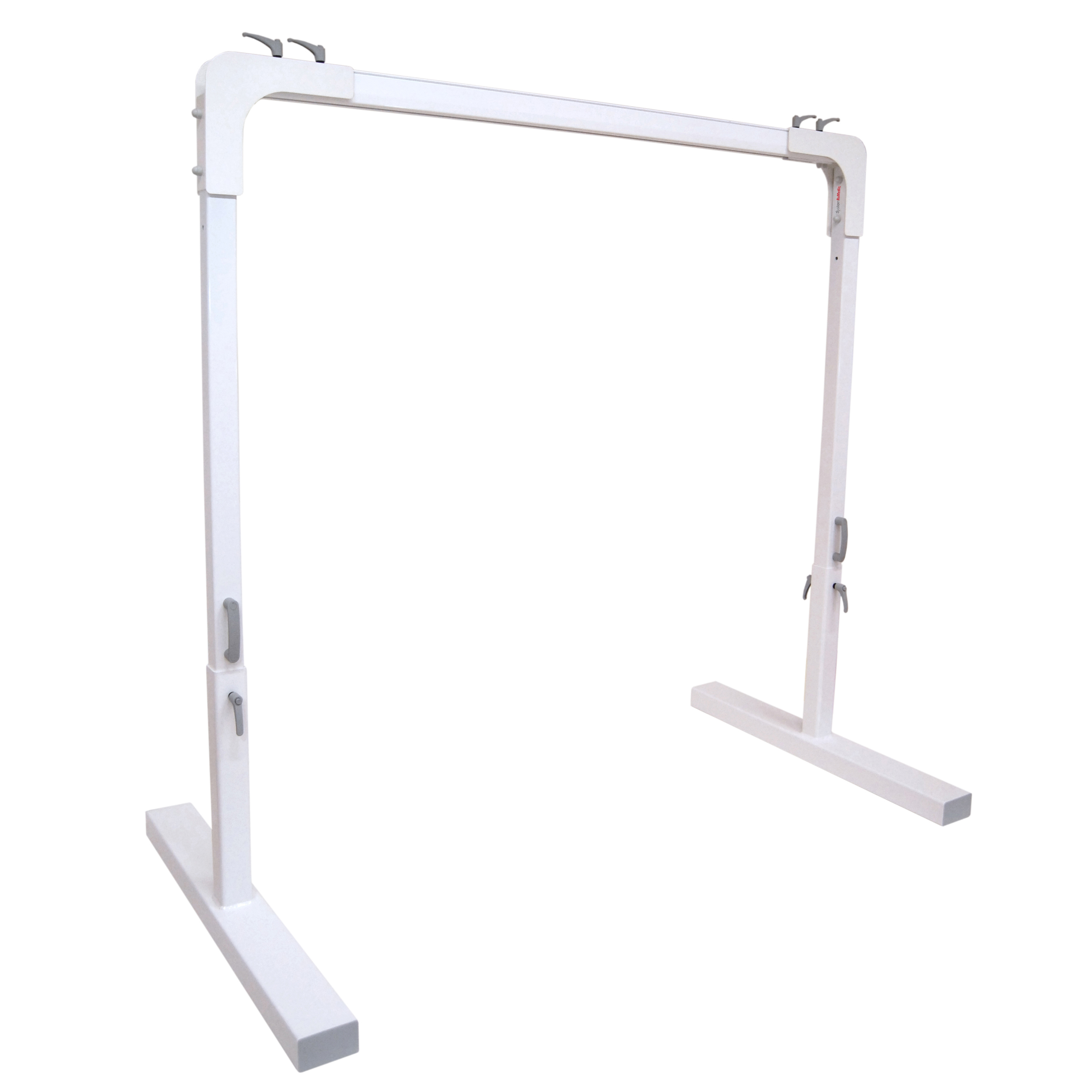

Castor gantry

Safe and flexible lifting solutions for all settings and users

Castor is a safe, high-performance and portable freestanding lift stand which, in combination with a rail and a ceiling lift unit, functions as a stationary lift system. Castor is an ideal solution for occasional lifting needs in a specific location, or where it is not possible to install a permanent rail system on the ceiling.

Low weight and large loading capacity

Castor is made of aluminium, which makes the lift stand light in relation to its large loading capacity (up to 300 kg/660 lbs). The design is both compact and discreet while at the same time making Castor one of the sturdiest freestanding lift stands on the market.

Easy to assemble, move and store

Castor is very easy to assemble and disassemble and therefore easy to move to locations where there is a need for lifting.

Flexible width and height of the lifting area

With Castor, you can create many safe and flexible lifting solutions that are ideally adapted for all settings and users. The rail is ordered separately, which allows you to choose the rail length and thereby adapt the lift stand’s width and the lifting area to optimally meet lifting needs in different settings. With the locking handles on the uprights, the height can easily be set at seven different positions to adapt the lift stand’s height and the lifting range according to the specific situation and lifting needs. With the same lift stand, it is also possible to perform both low and very high lifts.



  • Compact and discreet design
  • Very stable construction
  • Strong, for users weighing up to 300 kg/660 lbs
  • Aluminium for low weight
  • Easy to assemble and disassemble, with the locking handles available as an accessory, no tools are needed
  • Easy to move and store
  • Rail available in different lengths
  • Easy setting of height, 7 positions with 7.5 cm/2.95″ distance
  • Flexible width (lifting area) and height (lifting range)
  • For use with different types of ceiling lift units
  • Safe and flexible lifting solutions for all settings and users
  • Ceiling lift units and many accessories for safe, easy and individually adapted lifting of users in most transfer situations are available in the Handicare Lifting range

Send a message

  • This field is for validation purposes and should be left unchanged.
Application areas
  • From Wheelchair To Toilet
  • Higher Up In Bed
  • Lying To Sitting
  • Positioning In Chair
  • Rising To Sitting Down
  • Standing Training
  • Supine Transfer
  • Support For Gait Training
  • Turning In Bed
  • From Bed To Commode
  • Up From The Floor
  • From Bed To Wheelchair
Model specification
Art. no.503000045030000650400264504002695040028550400290
NameCastorCastorCastorCastorCastorCastor
DescriptionFreestanding lift stand, aluminium, white, without railQuick release, 4 pcs64 x 60 mm, 2 m, aluminium, white, ordered separately64 x 60 mm, 3 m, aluminium, white, ordered separately120 x 60 mm, 4 m, aluminium, white, ordered separately120 x 60 mm, 5 m, aluminium, white, ordered separately
SWL300 kg
Unit1s41111
Total height2000-2440 mm64 mm64 mm120 mm120 mm
Lifting range1920-2270 mm
Total length2000 mm3000 mm4000 mm5000 mm
DescriptionFreestanding lift stand, aluminium, white, without rail, SWL 300 kg / 660 lbsQuick release, accessory for Castor2 m / 78.74", ordered separately3 m / 118.11", ordered separately4 m / 157.48", ordered separately5 m / 196.85", ordered separately
