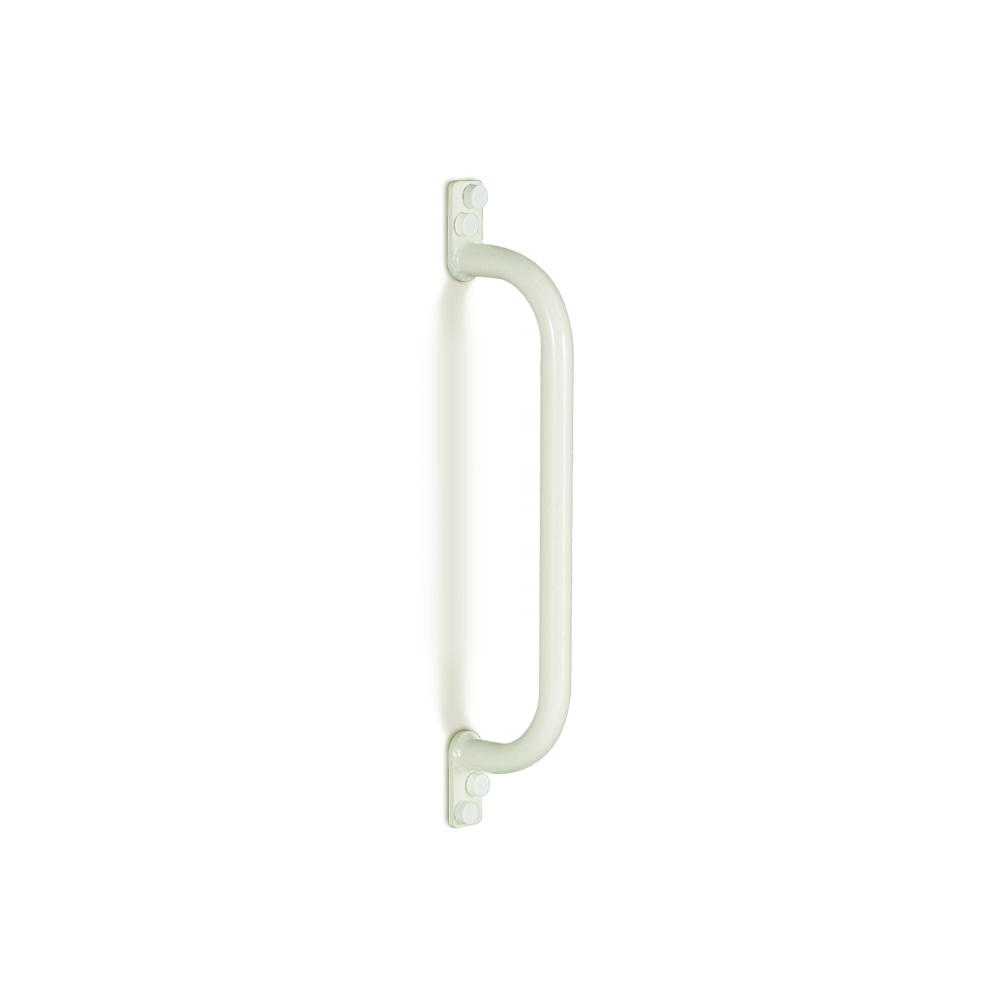

Handicare Door Frame Grab RailsHandicare Door Frame Grab Rails Art. No. 2619 045 Door frame grab rails For extra support when crossing a doorstep Doors are often fitted with doorsteps creating a difference in height. Extra support may be required for a user to cross such a doorstep but the question is often where such support can be securely installed and still be within easy reach. Handicare’s Door frame grab rail has been specially designed to be installed on a door frame; the extremely narrow flange is only 30 mm wide. Door frame grab rail is available in three lengths, all made from coated steel and available in neutral white colour only. For support when crossing a doorstep, extremely narrow flanges allow for installation on door frames Three lenghts available Tube diameter 22 mm, provides a secure grip The distance between tube and wall provides plenty of room for the hand Durable steel Hygienic design with rounded shapes and sleek surfaces Easy to install, Wall mounting set (art. no. LI2807.0000-00) is available as an accessory Supplied complete with Insulation set M6 x 4 (art. no. LI2860.0000-00), which provides for electrical insulation and covering of fixing points for a stylish look and to make the grab rail easy to keep clean Extremely secure, provides reliable support for users weighing up to 150 kg 5 years warranty Send a messageName*Email* Country*MessageCommentsThis field is for validation purposes and should be left unchanged.

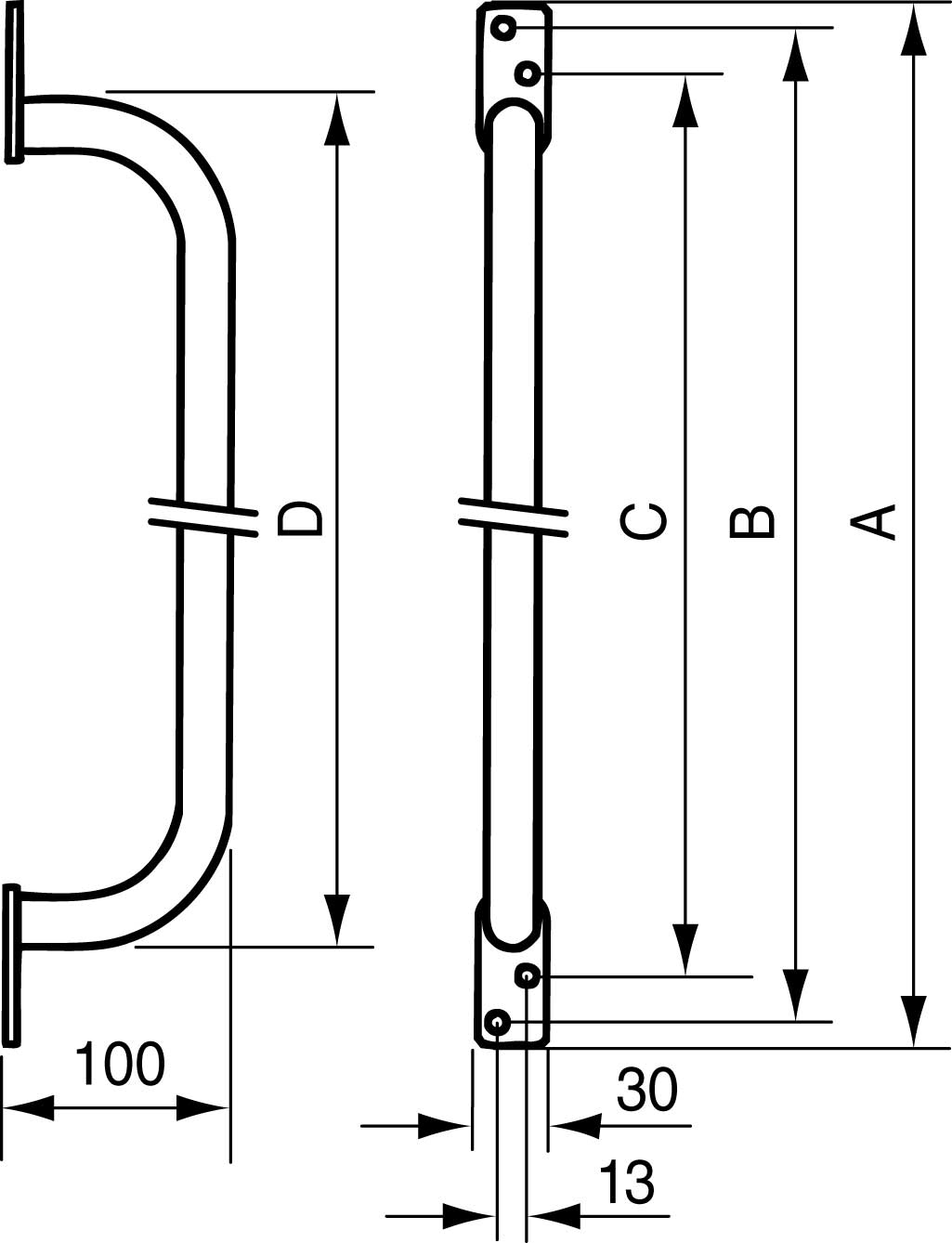

Model specification Documents Model specificationArt. no.LI2619.0301-02LI2619.0451-02LI2619.0601-02NameDoor frame grab railsDoor frame grab railsDoor frame grab railsDescriptionCoated steel, white, grip length 215 mm, incl. Insulation set M6 x 4Coated steel, white, grip length 365 mm, incl. Insulation set M6 x 4Coated steel, white, grip length 515 mm, incl. Insulation set M6 x 4Total length300 mm450 mm600 mmTube diameter22 mm22 mm22 mmNumber of flanges222Max. user weight150 kg150 kg150 kgUnit111Material(s)Coated steelCoated steelCoated steel DocumentsDocument nameTypeSize Technical Drawings Door Frame Grab Rails 105 KB User manual Door frame grab rails (multilingual) 814 KB Ergonomic mounting advice EN INT 106 KB Technical mounting advice EN INT 42 KB Care instructions EN INT 170 KB
