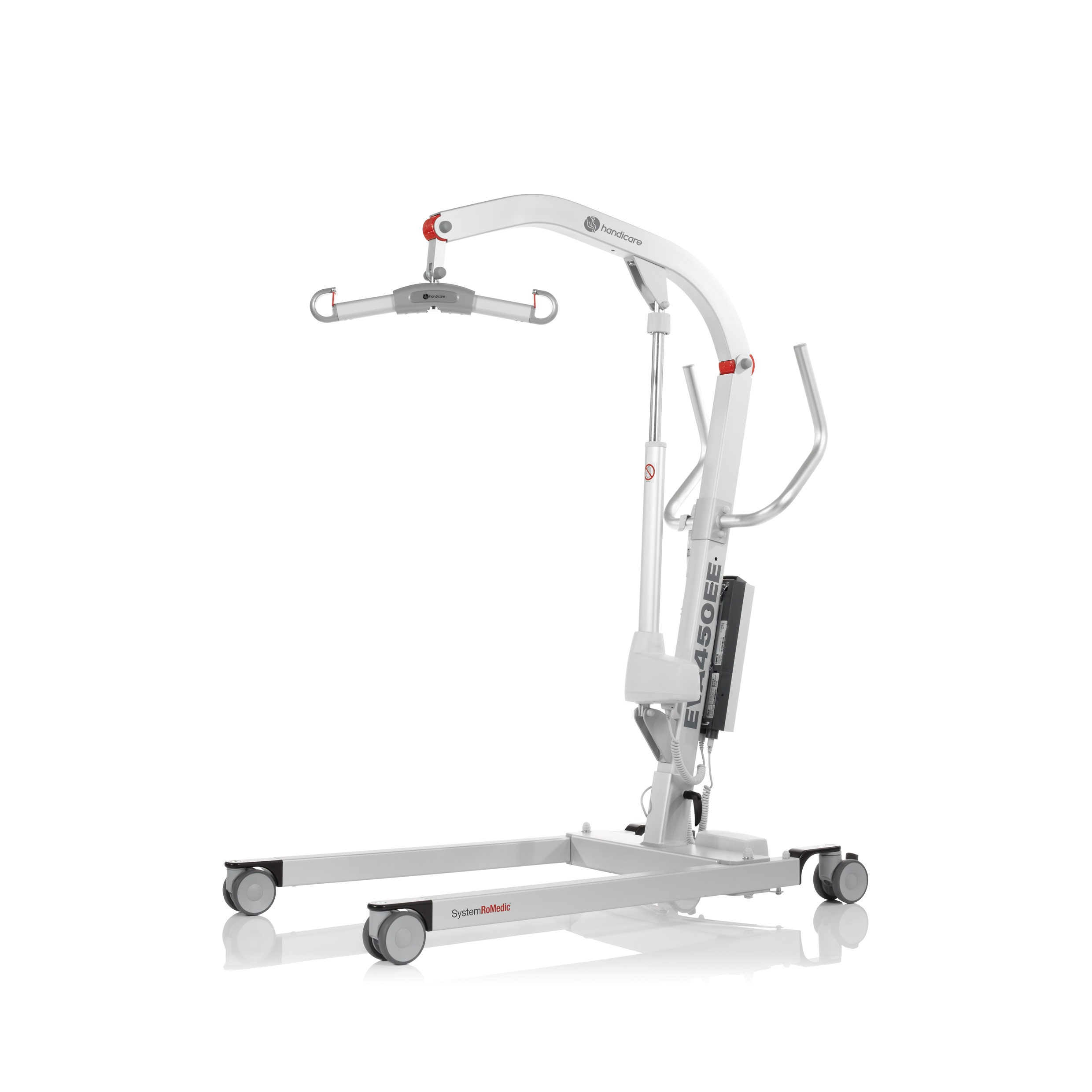

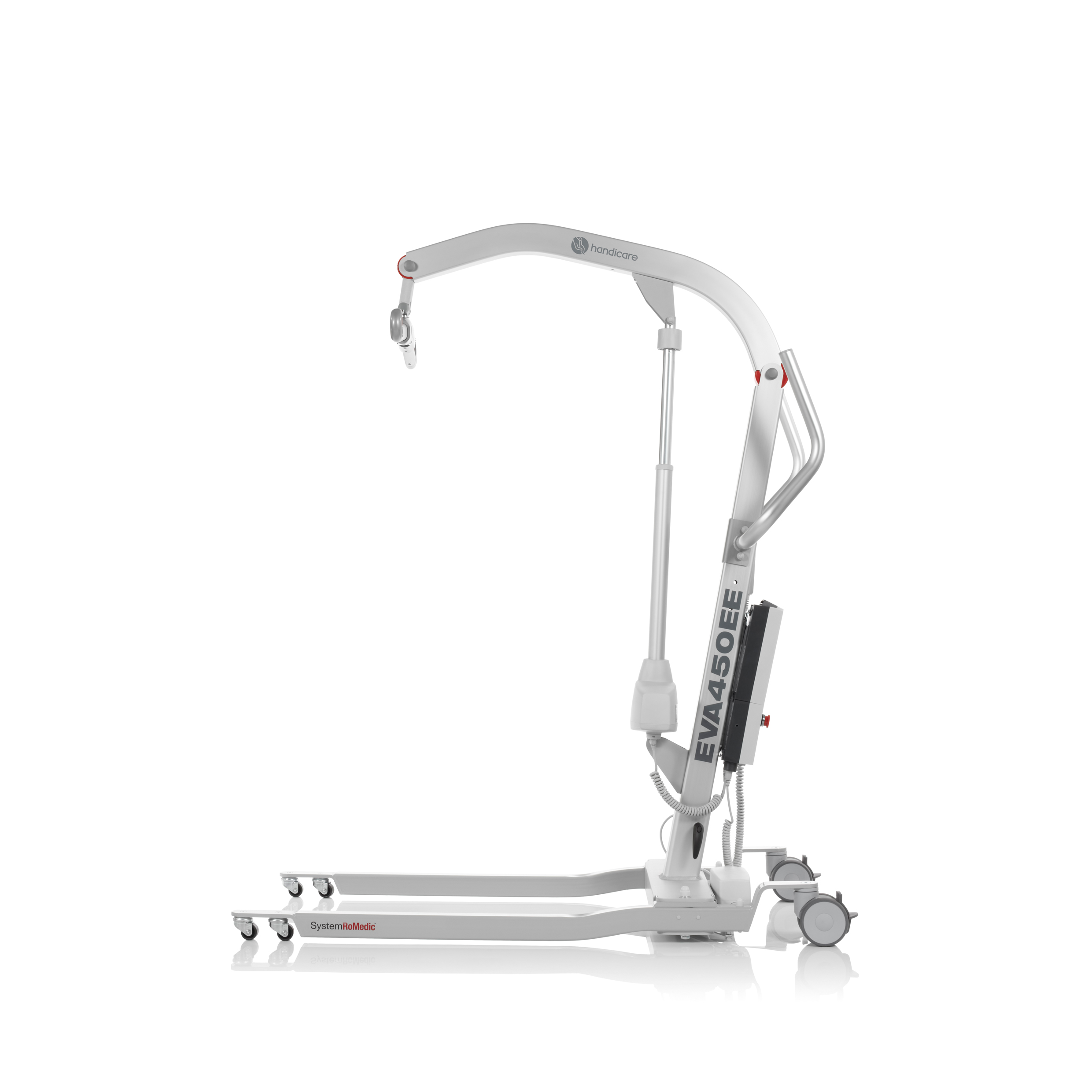

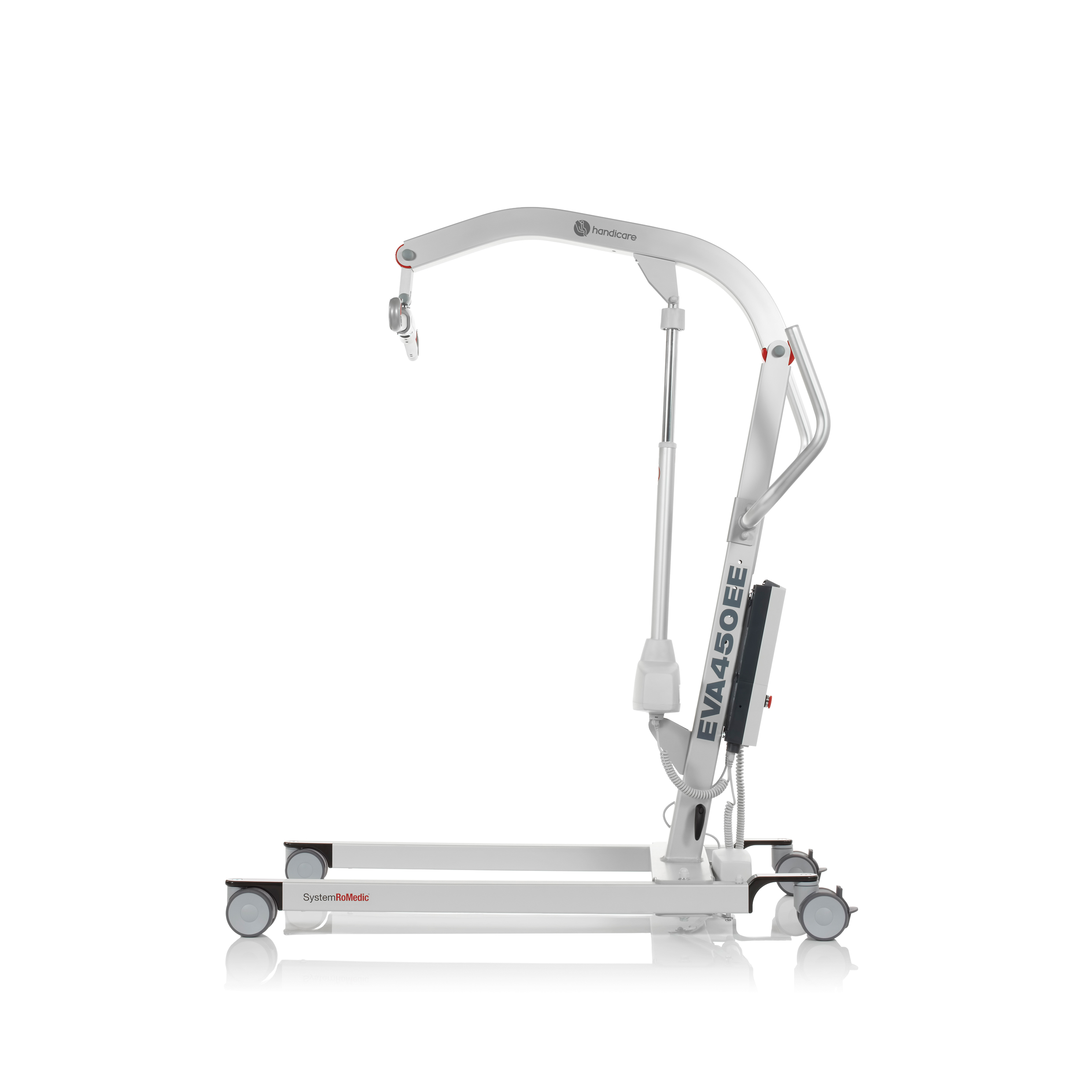

Eva450Eva450Eva450Eva450 AmbulationArmEva450 Low legsHandkontroll 4Knappar 1503 Videos All videos Eva450EE Strong, safe and easy to manoeuvre Eva450 is a versatile mobile patient lift for all lifting situations and for users weighing up to 205 kg/450 lbs. When used with Handicare’s functional and easy-to-use lifting accessories, Eva450 is the right choice for lifting in connection with transfers to and from the floor, chair or bed, as well as for horizontal lifting and gait training. Eva450 is available with standard height legs or in a special low leg version for use with low hight beds. All variants of Eva450 are supplied complete and ready to use, fitted with a stable sling bar with reliable safety latches and a hand control. The sling bar is standard width (450 mm/17.7″) which is suitable for most users and lifting situations. Strong and stable, SWL 205 kg/450 lbs Aluminium for low weight – easy to manoeuvre Mast adjustable to three height positions – large lifting range Height-adjustable handle bars – comfortable and ergonomic working positions Stable aluminium sling bar with reliable safety latches Standard width sling bar – suitable for most users and situations Available with regular height or low legs for use with lower beds Encapsulated twin castors – easy rolling and maintenance-free The special versions with low legs are fitted with double front castors with a diameter of 35 mm/1.4″ Available with electrical or manual base widening Electrical emergency stop button readily available on the control box Electrical and manual emergency lowering High capacity battery with long service life Built-in charging Quick guide on the lift Many accessories for safe, easy and individually adapted lifting of users All variants of Eva450 comply with requirements of the Medical Devices Directive for Class 1 products (MDD93/42/EEC). Handicare lifting slings and other accessories To create optimal solutions for users with different needs, Eva450 can be used in combination with lifting slings and many clever and functional lifting accessories in Handicare’s Lifting range. AmbulationArm, for example, is an accessory which can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift. Click “Accessories” hereunder for more information. Send a messageName*Email* Country*MessageEmailThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Turning In Bed From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Model specificationArt. no.6010000260100006NameEva450EEEva450EEDescriptionMobile lift with electrical base widening, complete with sling bar and hand controlMobile lift with electrical base widening, with low legs, complete with sling bar and hand controlBase width, outer dimensions685-980 mm685-980 mmBase width, inner dimensions585-880 mm585-880 mmTotal weight34 kg34 kgLifting range500-1790 mm500-1790 mmLifting speed without load35 mm/s35 mm/sBattery capacity2.9 Ah2.9 AhSling bar width450 mm450 mmProtection classIPX4IPX4SWL205 kg205 kgFront castors, diameter100 mm35 mmRear castors, diameter100 mm100 mmUnit11MaterialAluminiumAluminiumBase wideningElectricalElectricalEmergency loweringManual and electricalManual and electricalMaterial, sling barAluminiumAluminium DocumentsDocument nameTypeSize User Manual Eva (multilingual) 10 MB Care instructions (multilingual) 2 MB Re-conditioning EVA450 EN 157 KB Safety information (multilingual) 2 MB Rekonditionering Eva450 SE 158 KB Technical data sheet Eva450EE 998 KB Technical data sheet Eva450EE low legs 959 KB
