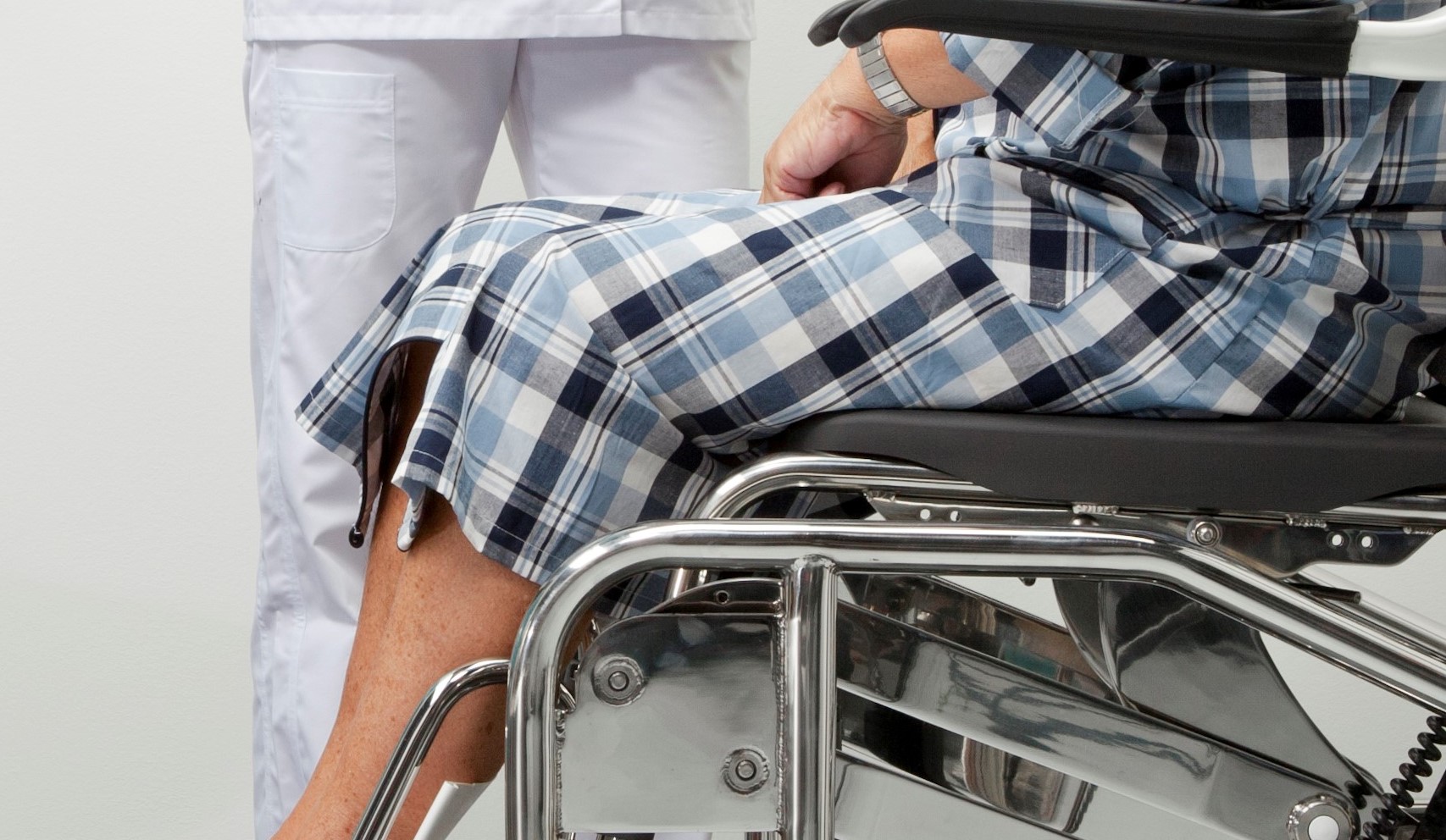

Handicare Height Adjustable Tilting Commmode Shower ChairHandicare Height Adjustable Tilting Commmode Shower Chair Art. No. 2161 321Handicare Tilting Chair User ImpressionHandicare Tilting Chair ImpressionHandicare Height Adjustable Tilting Commmode Shower ChairHandicare Shower Chair New Wheel Height adjustable tilting commode/shower chair A reliable, height adjustable reclining chair for showering and toileting Handicare’s Height adjustable tilting commode/shower chair is an assistive device allowing the user to sit down safely and comfortably during showering or toileting. It is supplied complete with toilet rails and can be used freestanding, with a bucket which is available as an accessory, or standing over a toilet. Height adjustable tilting commode/shower chair provides stable and secure support for less active users with weak legs, low stamina and/or poor balance, who are not able to sit up straight or who sit on the chair for longer periods of time and who require more support and assistance during showering, hair washing, toileting and seated transfers. The chair can be reclined, at any angle between 0º and 35º. In order to ensure that the user always maintains a stable hip angle of 90º, the seat and backrest recline simultaneously. The height of the seat can also, easily and smoothly, be adjusted to between 580 and 1040 mm. These features allow the caregiver to always work in an ergonomic way when assisting the user; without having to bend over, and with no strain on the back, shoulders, arms and knees as a result. The wide range of seat heights also facilitates transfers and enables the caregiver to maintain eye contact with the user during washing and showering. Two variants with manual or powered operation Height adjustable tilting commode/shower chair is available in two variants. One features manual height adjustment (using a hydraulic pump) and manual tilting operation (using a gas spring). The other variant features powered/electric height adjustment and tilting operation using a remote-controlled battery. The powered variant is well insulated and protected (IP X5) to ensure that water can not come into contact with the electrical components. Comfortable and practical toilet seat Both variants of Height adjustable tilting commode/shower chair feature a soft and comfortable toilet seat with an open front making it easier for the user to reach intimate body parts without standing up. The seat can be placed on the frame with the opening to the front or to the back of the chair. The seat can also be completely removed for easier cleaning. Replacement seats and an insert for the toilet opening are available as accessories. The removable toilet rails for the bucket are located directly underneath the seat, keeping the distance between the bucket and the toilet seat to a minimum for improved hygiene. Excellent back support for increased comfort and security The backrest of the chair is curved and features a strong textile covering which is firmly attached to the frame and which adapts to the body temperature during use. This construction creates a depth which provides more support for the sides of the user’s body as well as a greater feeling of security, which is much appreciated by users. The chair also provides lumbar support for the lower back. This prevents the user from slipping backwards when the chair is reclined. Optimal support for the head Supporting the head is crucial when the chair is in the reclined position. In order to provide the best possible support, Height adjustable tilting commode/shower chair is fitted with a headrest with adjustable height and depth. The covering of the headrest is concave, thereby effectively preventing the user’s head from slipping. Strong, practical armrests Height adjustable tilting commode/shower chair features strong, practical armrests designed to withstand a lot of load, including the sideways forces that are exerted during sideways transfers. The armrests offer comfortable support for the forearms while sitting and they are long enough to provide sustained support when standing up and sitting down. The armrests can be folded up individually, e.g. to facilitate a sideways transfers. When folded down, the armrest rests behind the backrest thereby preventing fingers, skin or hair from getting caught. Height adjustable, swing-away footrests The footrests are individually height adjustable and can be swung away not to get in the way for the user during sitting down or standing up from the chair. If necessary, the footrests can also be completely removed. The chair is also fitted with a removable calf support offering comfort and support for the user’s legs when the chair is in the reclined position. Durable, double breaked castors Height adjustable tilting commode/shower chair is mobile, fitted with four plastic castors with a diameter of 125 mm, making the chair very easy to move between different locations as well as to manoeuver, turn and adjust to different positions in various settings and situations. The castors are extremely robust and have a long track record of use in wet environments such as bathrooms. The double brakes on each castor ensure that the chair remains in a stable, fixed position when providing care and performing transfers. Both variants of Handicare’s Height adjustable tilting commode/shower chair are available in polished stainless steel and in coated stainless steel (both are available in the colour white only). The backrest cover is made from woven polyester with plastic coating available in neutral white colour only. The toilet seat and the armrests are made from polyurethane (PUR) foam with a closed cell structure and available in anthracite colour only. Height adjustable tilting commode/shower chair is supplied complete with safety belt, lumbar support, calf support and removable toilet rails for buckets with a diameter of 300-315 mm. Note: If a polished stainless steel frame is chosen for the chair, the armrests are supplied with a white finish. Stable and comfortable reclining support with smooth and easy height adjustment Provides for ergonomically correct working positions for the caregiver Prevents strain on back, shoulders and arms For showering and toileting; freestanding (with bucket) or standing over a toilet The seat height can be adjusted to ensure the optimal distance between toilet and chair Wide height adjustment range; manual/hydraulic or powered operation 35º manual or powered tilting operation Excellent support in reclined position (head support, back and side support, lumbar support, calf support) Soft and comfortable toilet seat with open front or back for optimal hygiene Headrest with adjustable height and depth Individually folding armrests with ergonomic shape Height adjustable and removable swing-away footrests Mobile and very easy to move and manoeuver Durable, double braked castors, Ø 125 mm Watertight construction; solid tubular frame Durable materials; stainless steel, textile and polyurethane foam, suitable for wet environments Easy maintenance, clean regularly with normal household detergent Extremely sturdy, provides reliable support for users weighing up to 150 kg Tilting commode/shower chair without height adjustment Handicare’s range of tilting commode/shower chairs also includes a model not featuring height adjustment; Tilting commode/shower chair. Please click the link at the bottom of this page for more information. Send a messageName*Email* Country*MessageEmailThis field is for validation purposes and should be left unchanged.
Model specification Documents Model specificationArt. no.LI2161.1212-00LI2161.1214-02LI2161.3212-00LI2161.3214-02NameHeight adjustable tilting commode/shower chairHeight adjustable tilting commode/shower chairHeight adjustable tilting commode/shower chairHeight adjustable tilting commode/shower chairDescriptionManual tilt, polished stainless steel, complete with safety belt, lumbar support, calf support and removable toilet rails for buckets with a diameter of 300-315 mmManual tilt, coated stainless steel, white, complete with safety belt, lumbar support, calf support and removable toilet rails for buckets with a diameter of 300-315 mmPowered tilt, polished stainless steel, complete with safety belt, lumbar support, calf support and removable toilet rails for buckets with a diameter of 300-315 mmPowered tilt, coated stainless steel, white, complete with safety belt, lumbar support, calf support and removable toilet rails for buckets with a diameter of 300-315 mmTotal width625 mm625 mm625 mm625 mmTotal height1195-1655 mm1195-1655 mm1195-1655 mm1195-1655 mmClearance, height840-1400 mm840-1400 mm840-1400 mm840-1400 mmBackrest width450 mm450 mm450 mm450 mmArmrests length410 mm410 mm410 mm410 mmArmrests width60 mm60 mm60 mm60 mmArmrests height250 mm250 mm250 mm250 mmUnit1111Total depth775 mm775 mm775 mm775 mmSeat height580-1040 mm580-1040 mm580-1040 mm580-1040 mmSeat depth450 mm450 mm450 mm450 mm Max user weight150 kg150 kg150 kg150 kgSeat width470 mm470 mm470 mm470 mmMax. load on armrest75 kg75 kg75 kg75 kgCastors diameter (Ø)125 mm125 mm125 mm125 mmMaterial, frameStainless steelStainless steelStainless steelStainless steelMaterial, backrestTextile; woven polyester with plastic coatinTextile; woven polyester with plastic coatinTextile; woven polyester with plastic coatinTextile; woven polyester with plastic coatinMaterial, seatPolyurethane (PUR)Polyurethane (PUR)Polyurethane (PUR)Polyurethane (PUR) DocumentsDocument nameTypeSize Technical Drawing Height adjustable tilting commode/shower chair EN 138 KB Care instructions EN INT 170 KB Manual Height adjustable tilting commode/shower chair 3 MB Manual Height adjustable tilting commode/shower chair, Manual/hydraulic tilt 807 KB
