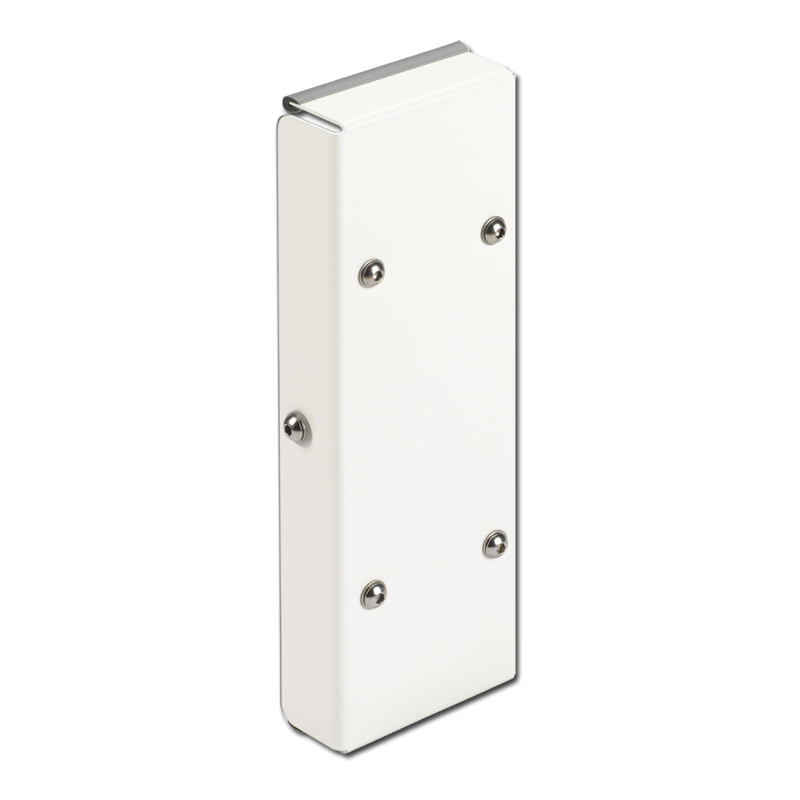

Height adjustment system for arm supports

Provides the perfect fit for each user

In order for an arm support to provide maximum benefit, the height of the arm support must be tailored to the user. And when several users use the same arm supports, it is necessary to be able to adjust the height of the arm supports to achieve the perfect fit for each user.

Linido™ Height adjustment system allows for smooth and easy height adjustment of Hinged arm support, when and as required, without drilling of extra holes in the wall or new installation. The adjustment range of 150 mm is more than sufficient to achieve the correct height for both short and tall users. Height adjustment system is also an excellent solution for growing children.

With a set of Adjustable clamp levers, which is available as an accessory (art. no. LI2815.0010-00), adjusting the height of Hinged arm support is as easy as can be.

Handicare’s Height adjustment system is very easy to install, both for new and for existing installations of Hinged arm support. It can also be used to prepare a toilet for the future installation of Hinged arm support. The arm supports can then be fitted to the height adjustment system when they are required.

The Height adjustment system of Handicare is available in coated stainless steel and only available in the colour white.

  • For smooth height adjustment of all Handicare’s Hinged arm support
  • Easy adaptation of height provides the perfect fit for each user
  • Adjustment range 150 mm
  • Durable stainless steel
  • Watertight construction
  • Hygienic design with sleek surfaces
  • Very easy to install
  • After installation, the fixing points and the height adjustment system are covered and concealed for a stylish look and for easy cleaning
  • Extremely secure, for users weighing up to 150 kg
  • 5 years warranty



Send a message

  • This field is for validation purposes and should be left unchanged.
Model specification
Art. no.LI2615.3004-02
NameHeight adjustment system for arm supports
DescriptionCoated stainless steel, white. For all variants of Hinged arm support, for one wall plate.

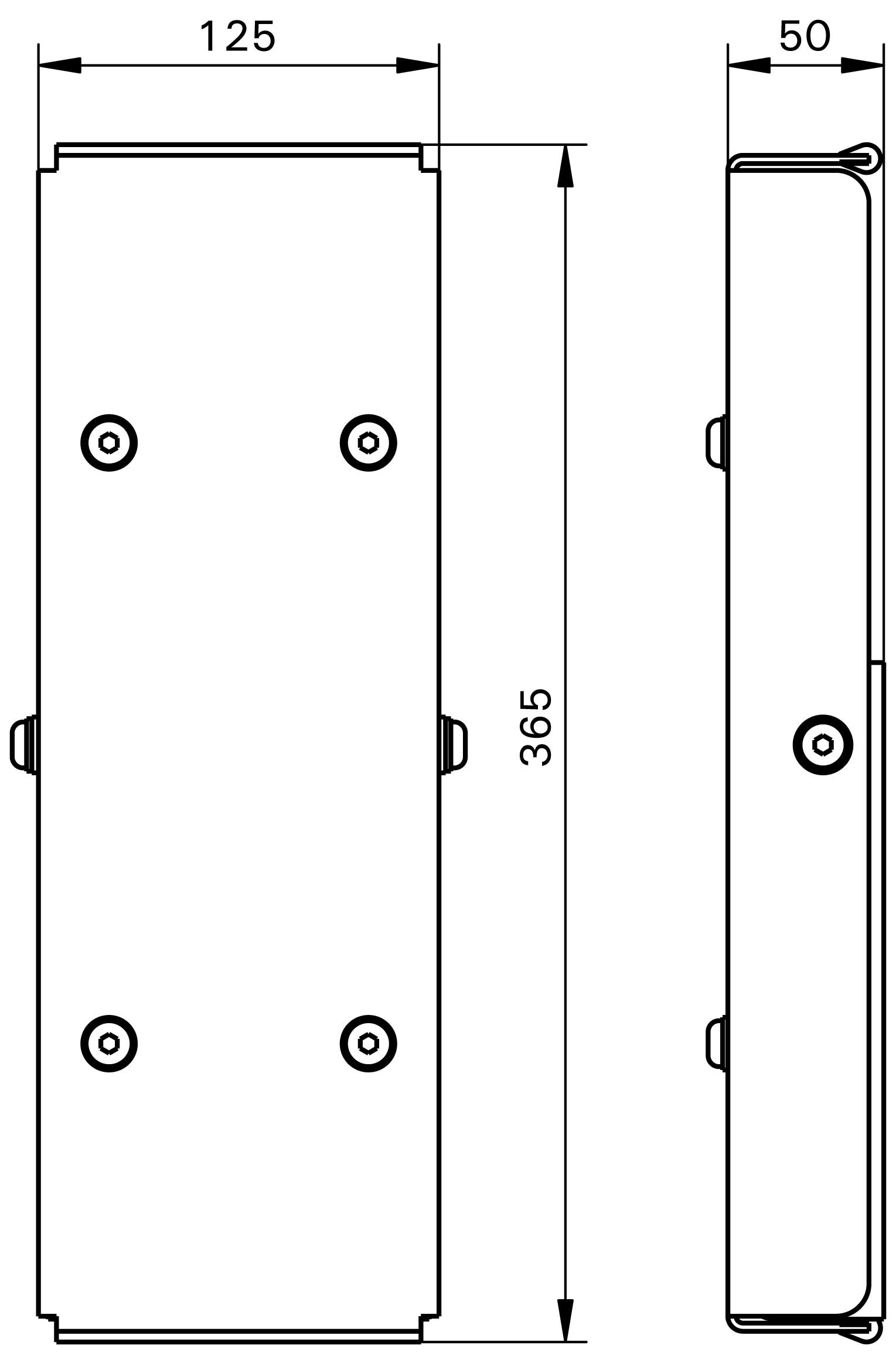

Total width125 mm
Total height365 mm
Max. user weight150 kg
Unit1
Material(s)Coated stainless steel
