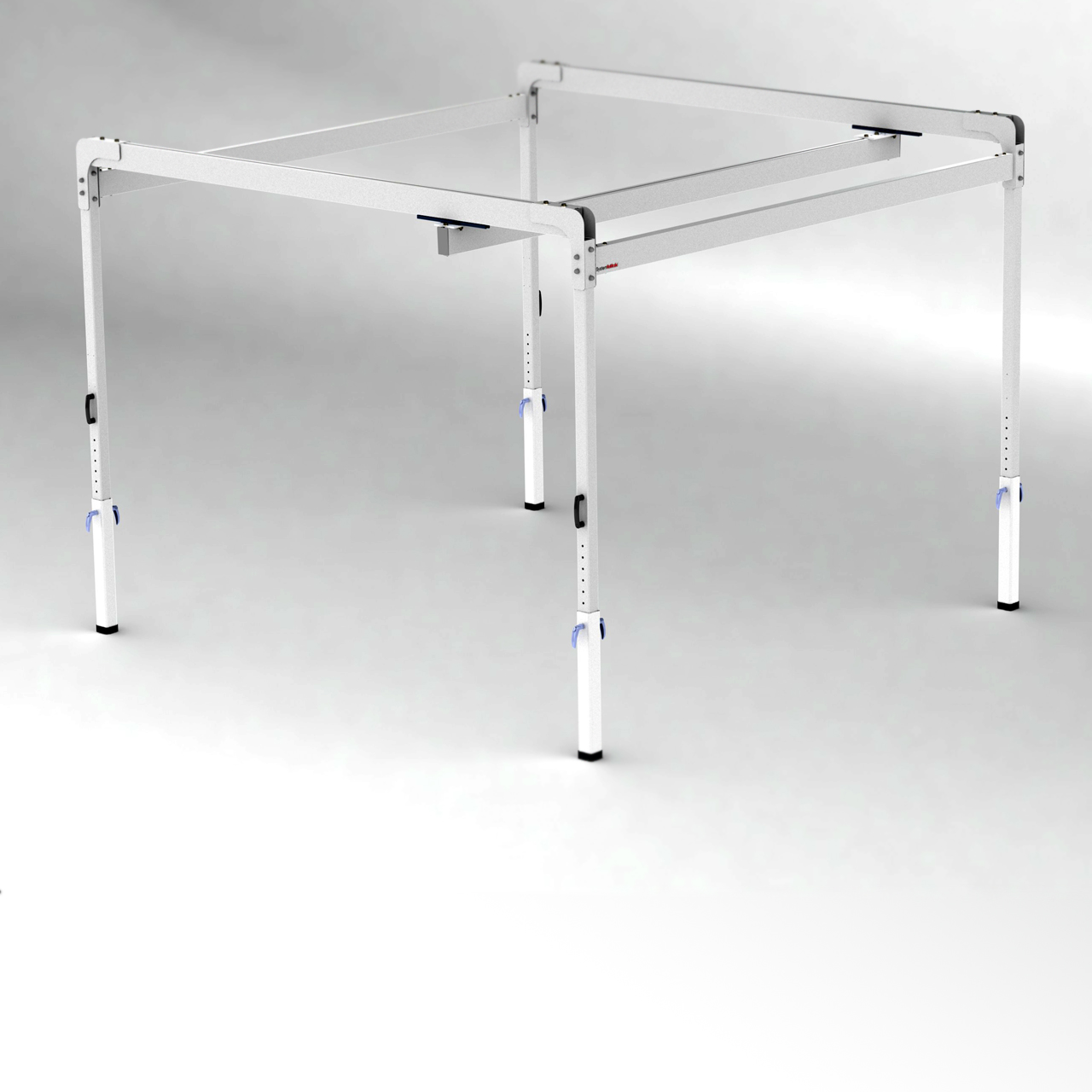

Helena Helena A freestanding traverse system for users weighing max 285 kg/628 lbs Helena is a safe, high-performance freestanding lift stand with a cross-rail. Together with a ceiling lift unit, Helena functions as a stationary (x-y) lift system. The cross-rail is suspended in trolleys and can travel sideways in fixed rails along the total width of the lift stand. This way, the ceiling lift unit can travel in all directions and be used anywhere in the lifting area, both for very low and very high lifting. Helena is an ideal solution for occasional lifting needs in a specific location, or where it is not possible to install a permanent rail system on the ceiling. Should the lifting needs change, the lift stand can also be disassembled and moved to other locations. Low weight and large loading capacity Helena is made of aluminium, which makes the lift stand light in relation to its large loading capacity; up to 285 kg/628 lbs. The design is both compact and discreet while at the same time making Helena one of the sturdiest freestanding lift stands on the market. Three models provide lifting areas of different sizes Helena is available in three models with different measurements providing lifting areas of different sizes. For all models, the height can be set at ten different positions to provide the optimal lifting range according to the specific situation and lifting needs. All models of Helena are supplied complete and ready for mounting and use. They can be used with all Handicare ceiling lift units. Freestanding traverse system, for occasional lifting needs in a specific location or where it is not possible to install a permanent rail system on the ceiling Easy to assemble Can be disassembled and moved to other locations should the lifting needs change Aluminium for low weight Compact and discreet design Strong and stable, for users weighing up to 285 kg/628 lbs Three models provide lifting areas of different sizes To provide the optimal lifting range, the height can be set at 10 positions with 50 mm/2″ distance Safe and convenient lifting solutions for all settings and users Ceiling lift units and many accessories for safe, easy and individually adapted lifting of users in most transfer situations are available in the Handicare Lifting range Send a messageName*Email* Country*MessageNameThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas Turning In Bed From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Model specificationArt. no.503000095030001050300011NameHelenaHelenaHelenaDescriptionFreestanding lift stand with cross rail, complete, 3157 x 3104 mm (w x l)Freestanding lift stand with cross rail, complete, 4157 x 3104 mm (w x l)Freestanding lift stand with cross rail, complete, 5157 x 4104 mm (w x l)SWL285 kg285 kg285 kgUnit1s1s1sTotal length3104 mm3104 mm4104 mmTotal width3157 mm4157 mm5157 mmTotal height2040-2490 mm2040-2490 mm2040-2490 mmTotal weight126 kg137 kg168 kgMaterialAluminiumAluminiumAluminium DocumentsDocument nameTypeSize Care instructions (multilingual) 2 MB Safety information (multilingual) 2 MB Product catalogue SystemRoMedic EN INT Manual Helena NO 930 KB Gebrauchsanweisung Helena DE 931 KB Manual Helena DK 930 KB User Manual Helena EN INT 927 KB Manual Helena FR 930 KB Bruksanvisning Helena SE 924 KB
