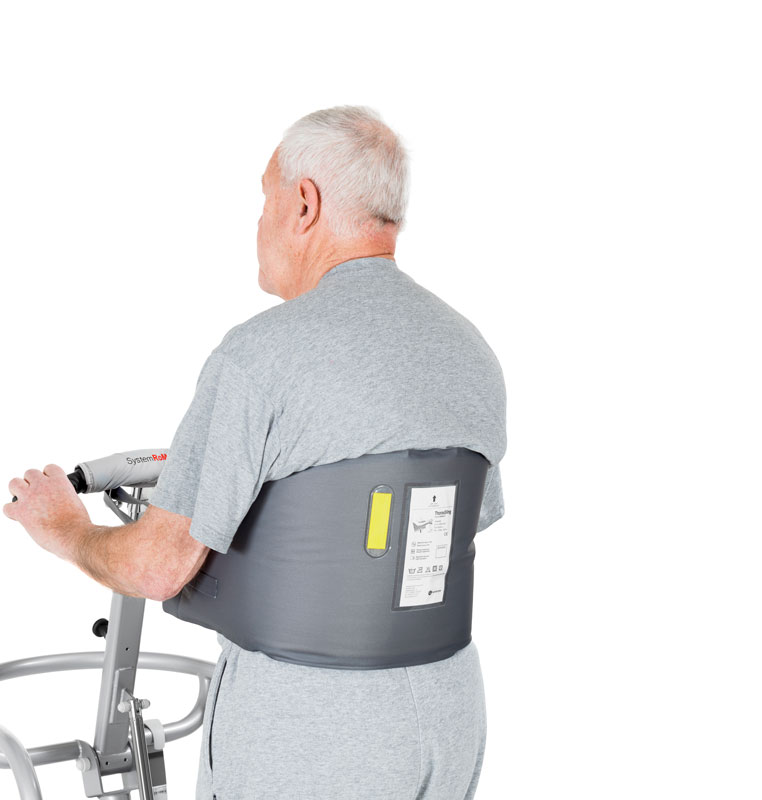

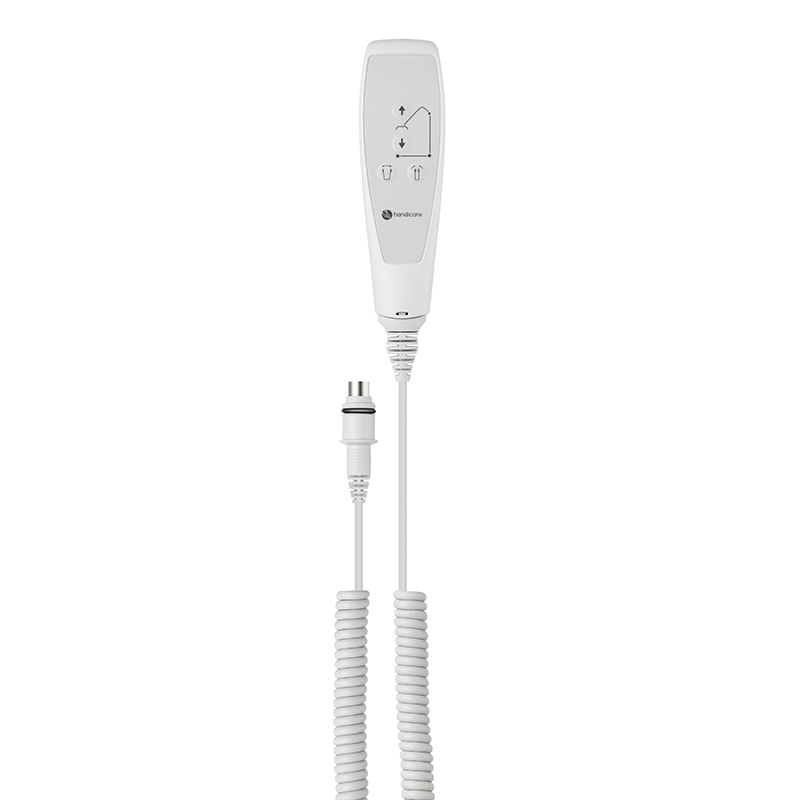

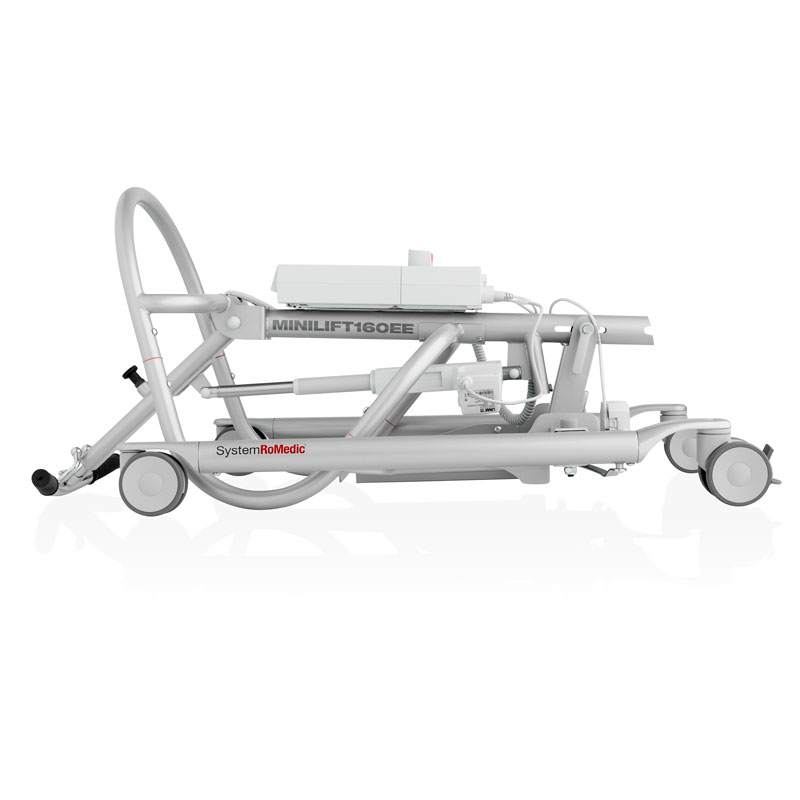

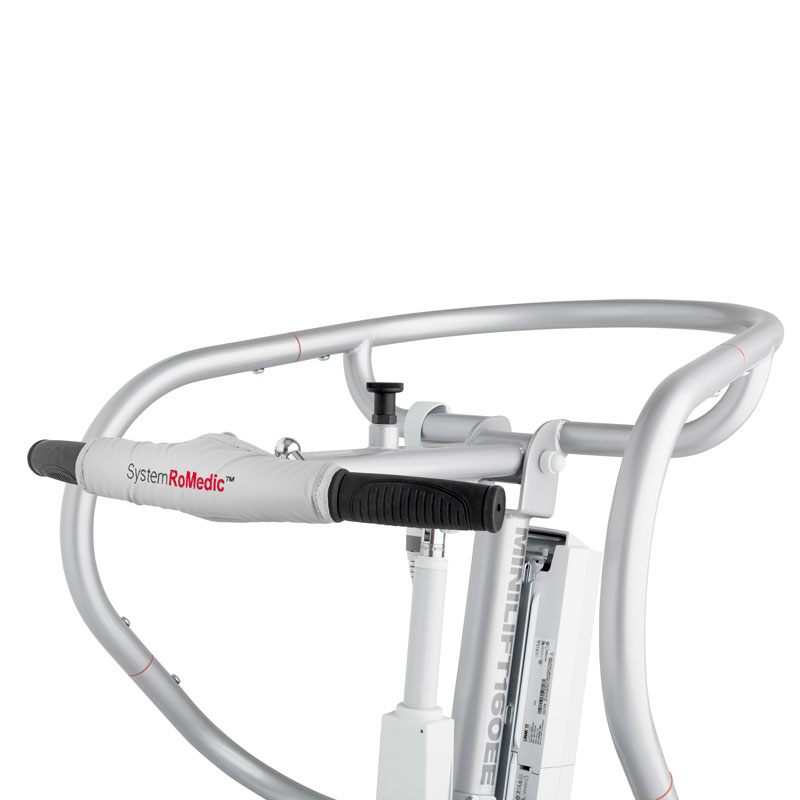

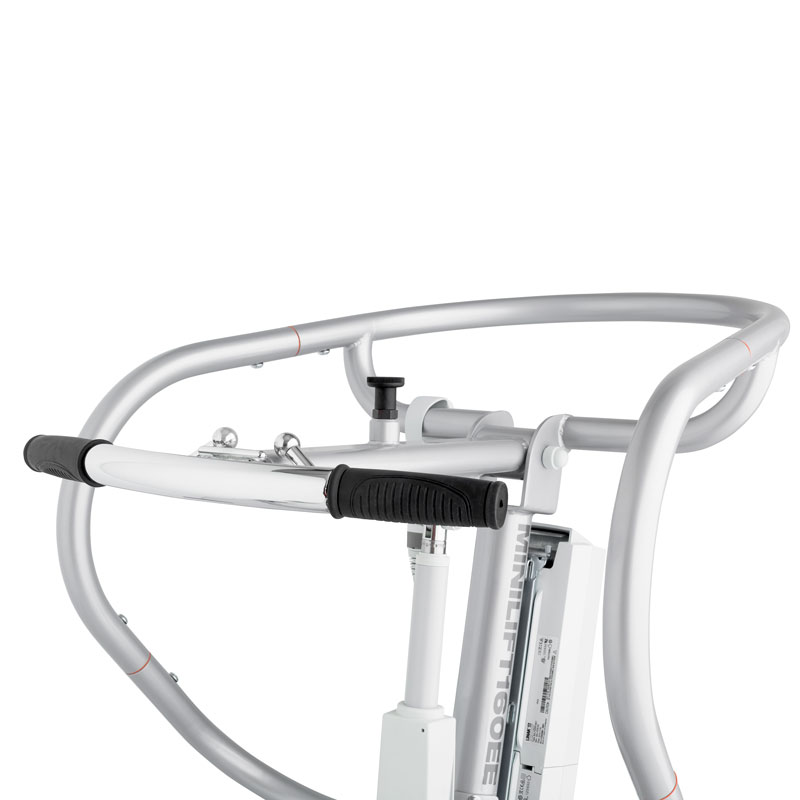

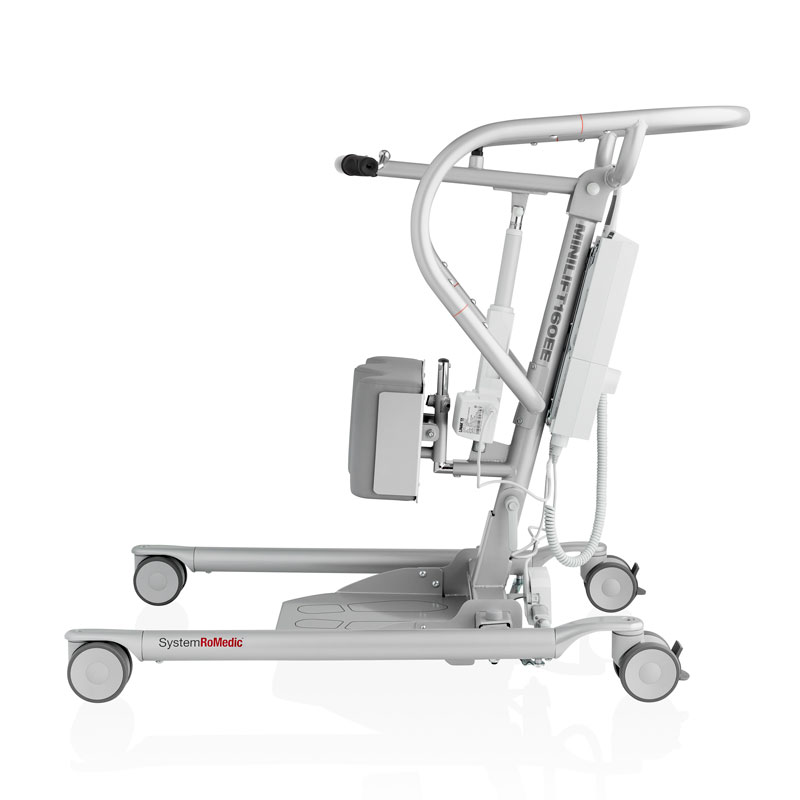

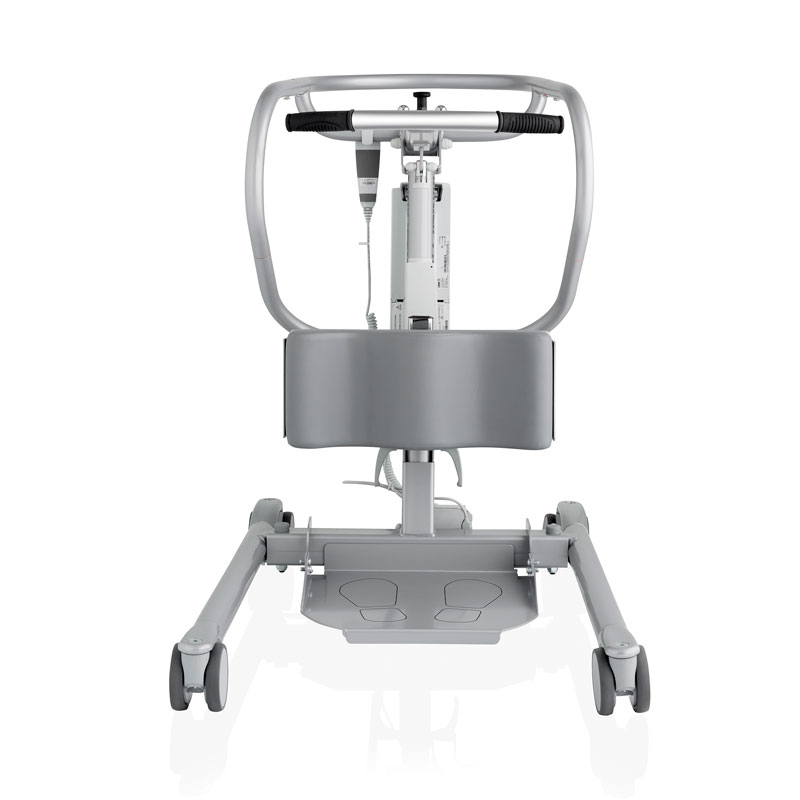

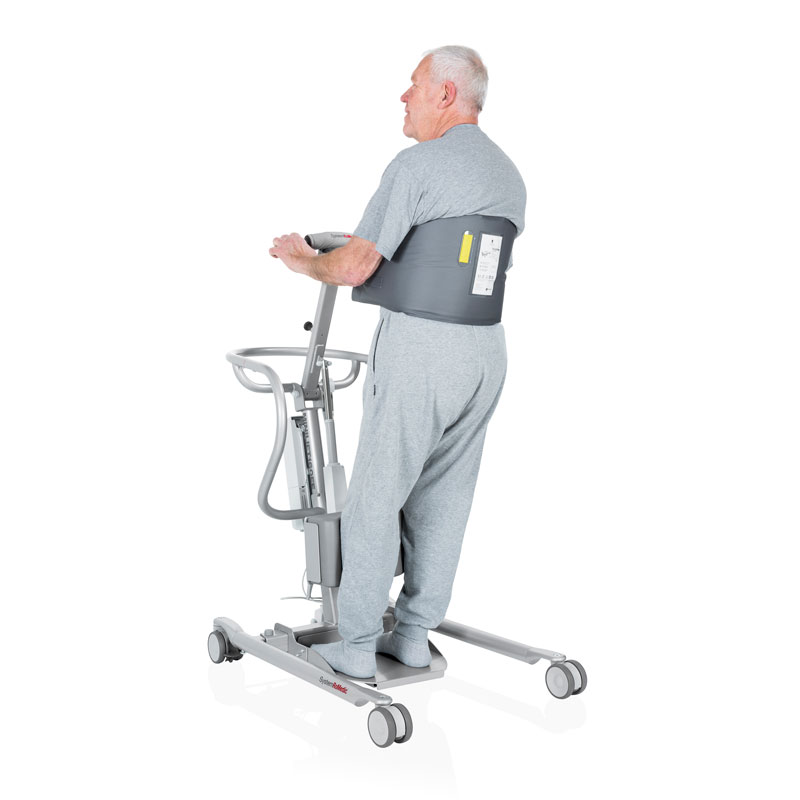

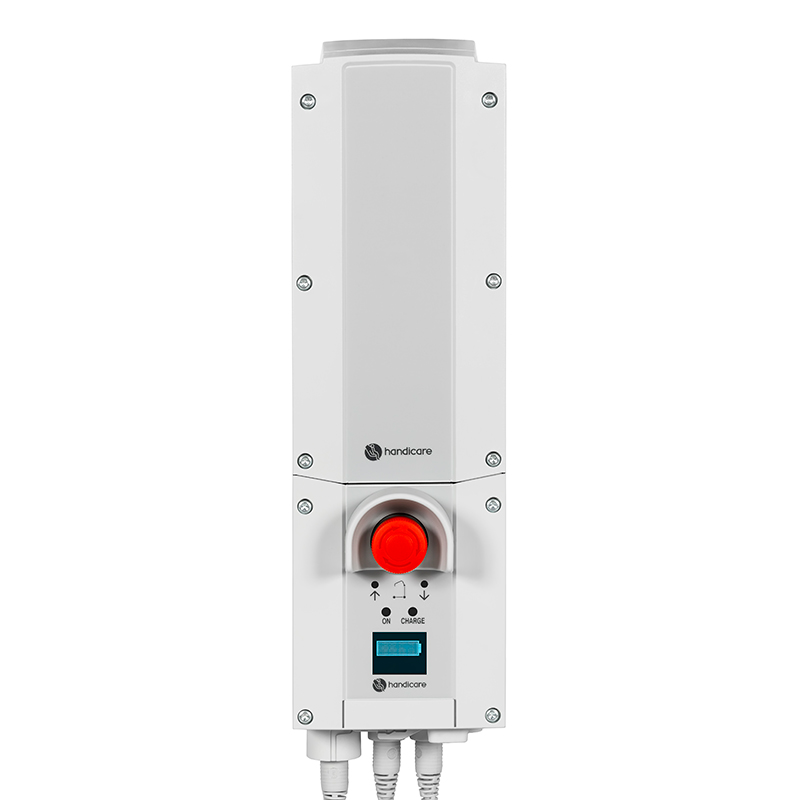

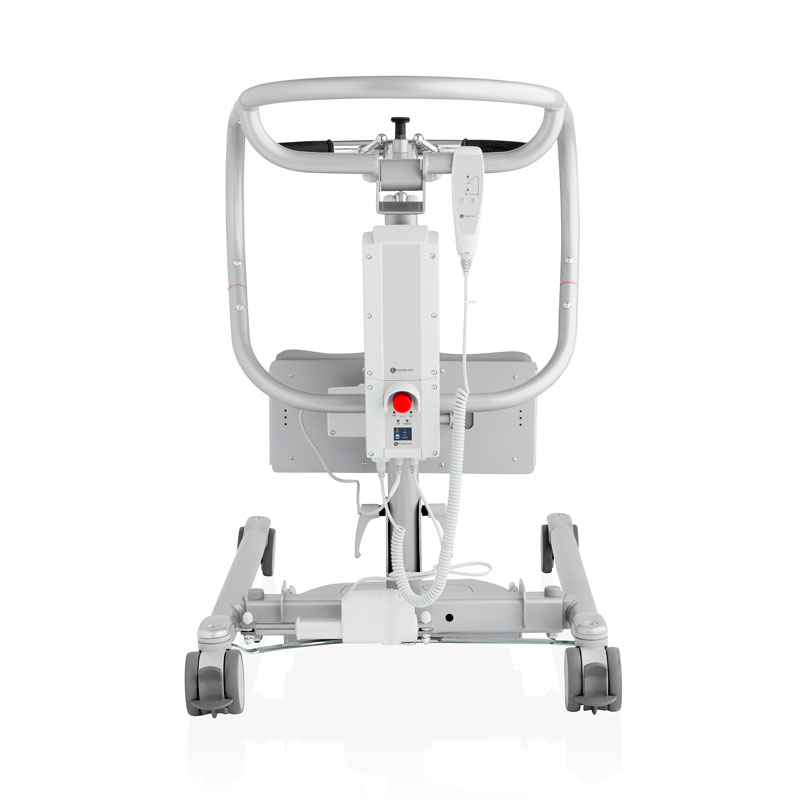

MiniLift160 1MiniLift160 2MiniLift160 3MiniLift160 4Minilift160 5Minilift160 6Minilift160 7Minilift160 8Minilift160 handlebarMinilift160 handlebar with wrapHandkontroll 2Knappar 1503Handkontroll 4Knappar 1503Kontrollbox WebMiniLift160Offers a totally unique and very comfortable sit-to-stand experienceMiniLift160 is a mobile sit-to-stand lift which has been developed to, as gently as possible, assist the user when rising from a sitting to a standing position. When MiniLift160 is combined with the appropriate lifting accessories, the user gets support under the feet, for the front of the lower legs and behind the back, which provides for a safe and secure, yet active sit-to-stand procedure.Extremely comfortable, active sit-to-stand with natural movement patternTo be able to understand how comfortable MiniLift160 is compared with other sit-to-stand devices on the market, it must be tried! The construction safely moves the user forwards and upwards in a natural movement pattern and, at the same time, the leg muscles and balance are exercised.Four variants are availableMiniLift160 is available in four variants with electrical (EE) or manual (EM) base widening and with standard height or low legs for use with lower beds. All variants are manufactured in steel for stability and strength and are suitable for users weighing up to 160 kg/350 lbs. MiniLift160 offers a unique combination of functionality, performance and quality in relation to price. A more economical solution is hard to find!MiniLift160EM/EE – features and advantagesUnique solution – extremely comfortable, active sit-to-stand with natural movement patternSmall and convenientEasy to manoeuvreErgonomic and easy-to-use hand control with 2 (EM) or 4 (EE) buttonsQuick guide on the liftGrip-friendly handles with multiple options for hand placementSoft, adjustable lower leg supportLow foot plate with anti-slip surfaceEasy rolling, maintenance-free castorsLockable rear castorsHigh capacity battery with long service lifeControl box with diagnostics, e.g. lift counter and overload indicatorElectrical emergency stop readily available on the control boxAlso available with low legs for use with lower bedsHandicare lifting slings and other accessoriesTo create optimal solutions for users with different needs, MiniLift160 can be used in combination with various accessories such as ThoraxSling, a specially adapted sit-to-stand vest, and CalfStrap. The bar of MiniLift160 can also be provided with a soft protection, SlingBarWrap MiniLift, which is sometimes needed for users with uncontrolled movements. Click “Accessories” hereunder for more information. MiniLift160 meets the requirements of the Medical Devices Directive for Class 1 products 93/42/EEC. Send a messageName*Email* Country*MessageCommentsThis field is for validation purposes and should be left unchanged. This iframe contains the logic required to handle Ajax powered Gravity Forms.
Application areas Model specification Documents Application areas From Bed To Commode From Bed To Wheelchair From Wheelchair To Toilet Positioning In Chair Rising To Sitting Down Standing Training Model specificationArt. no.60300010603000116030001260300013NameMiniLift160MiniLift160MiniLift160MiniLift160DescriptionMobile sit-to-stand lift with manual base wideningMobile sit-to-stand lift with manual base widening and low legsMobile sit-to-stand lift with electrical base wideningMobile sit-to-stand lift with electrical base widening and low legsSWL160 kg160 kg160 kg160 kgUnit1111Recommended user height1400-2000 mm1400-2000 mm1400-2000 mm1400-2000 mmTotal weight40.5 kg40.5 kg40.5 kg40.5 kgFront castors, diameter100 mm35 mm100 mm35 mmRear castors, diameter100 mm100 mm100 mm100 mmLifting speed without load35 mm/s35 mm/s35 mm/s35 mm/sMaterialPowder-coated steelPowder-coated steelPowder-coated steelPowder-coated steelEmergency loweringManual and electricalManual and electricalManual and electricalManual and electrical DocumentsDocument nameTypeSize Technical data sheet MiniLift160 EN INT 137 KB Care instructions (multilingual) 2 MB Safety information (multilingual) 2 MB User Manual MiniLift160 (multilingual) 11 MB
