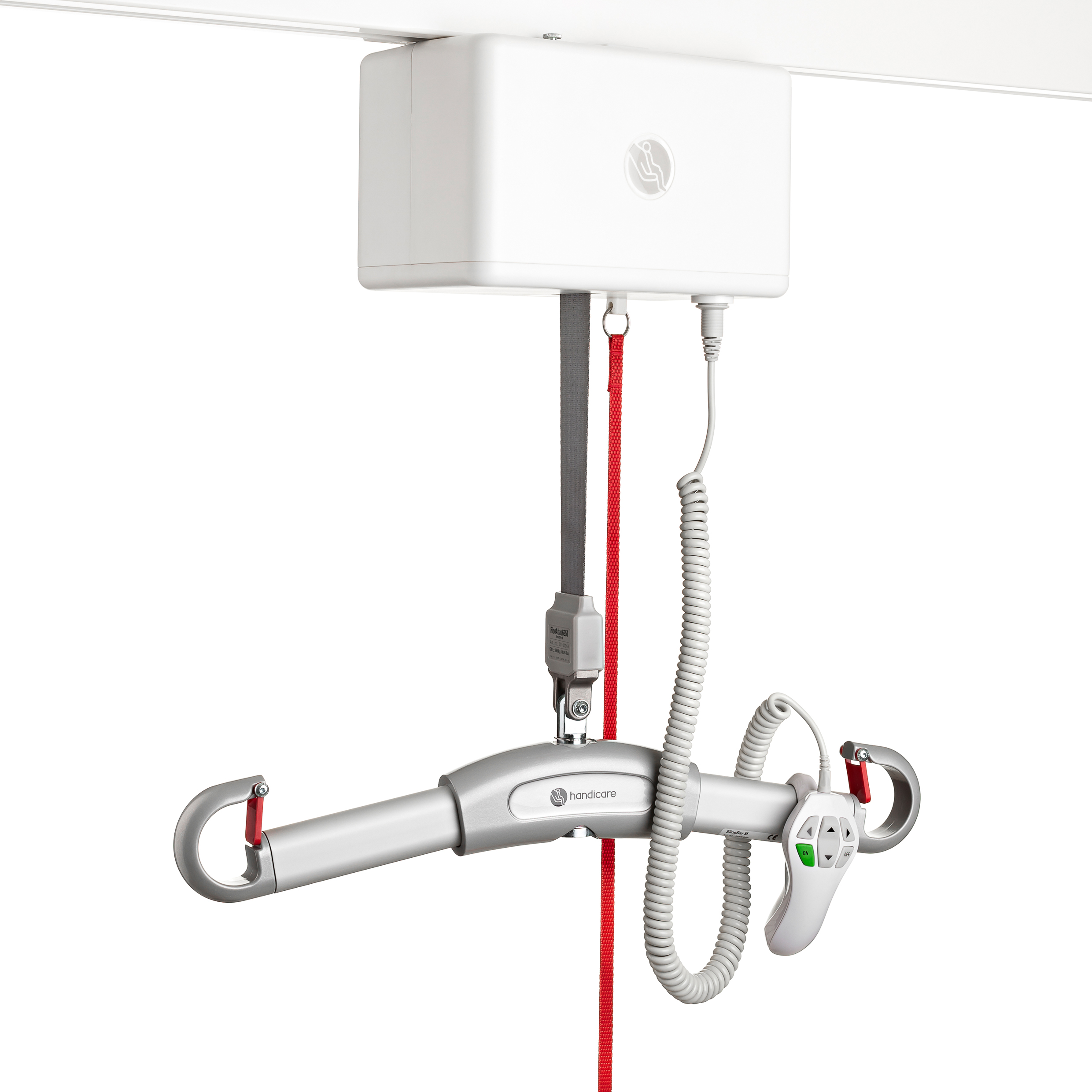

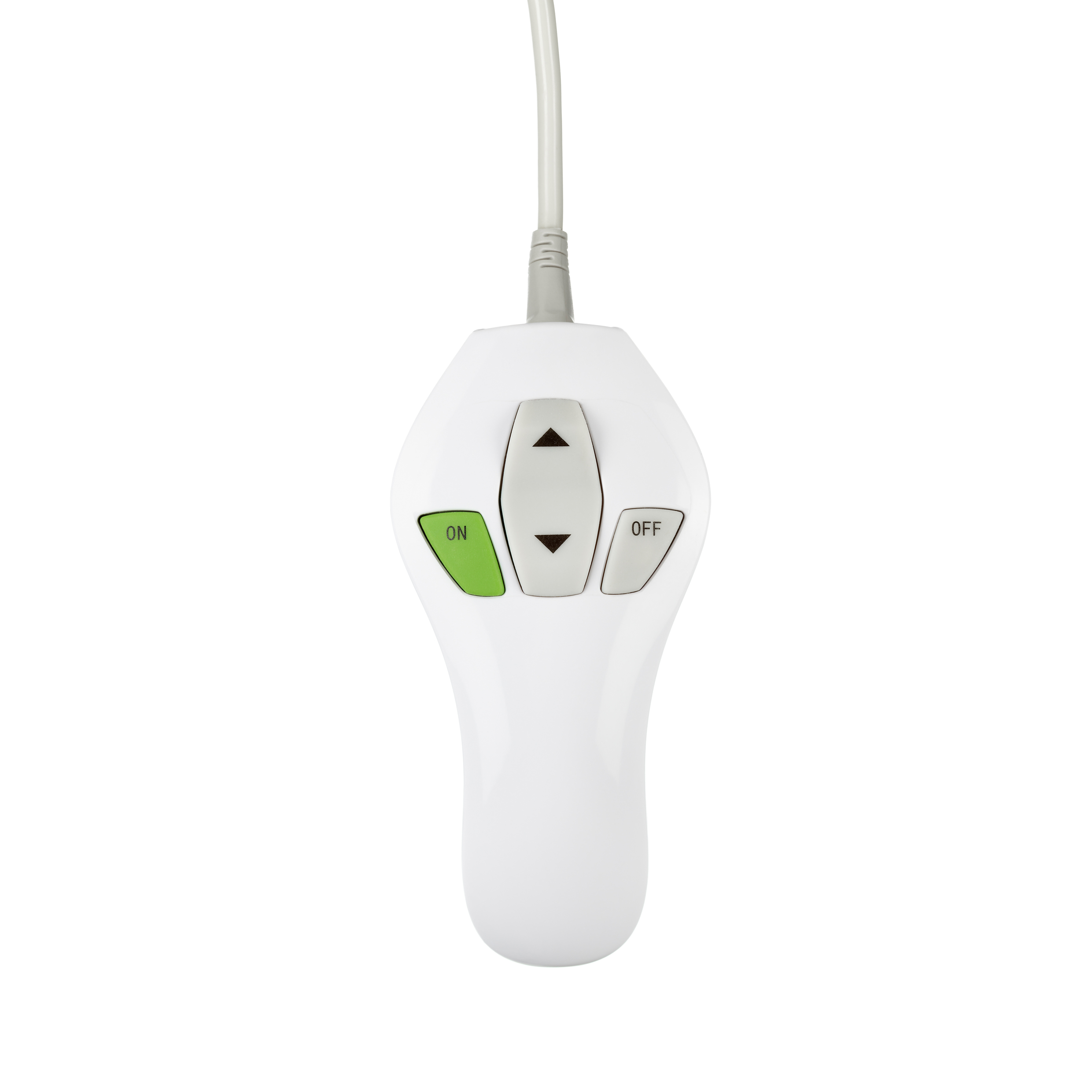

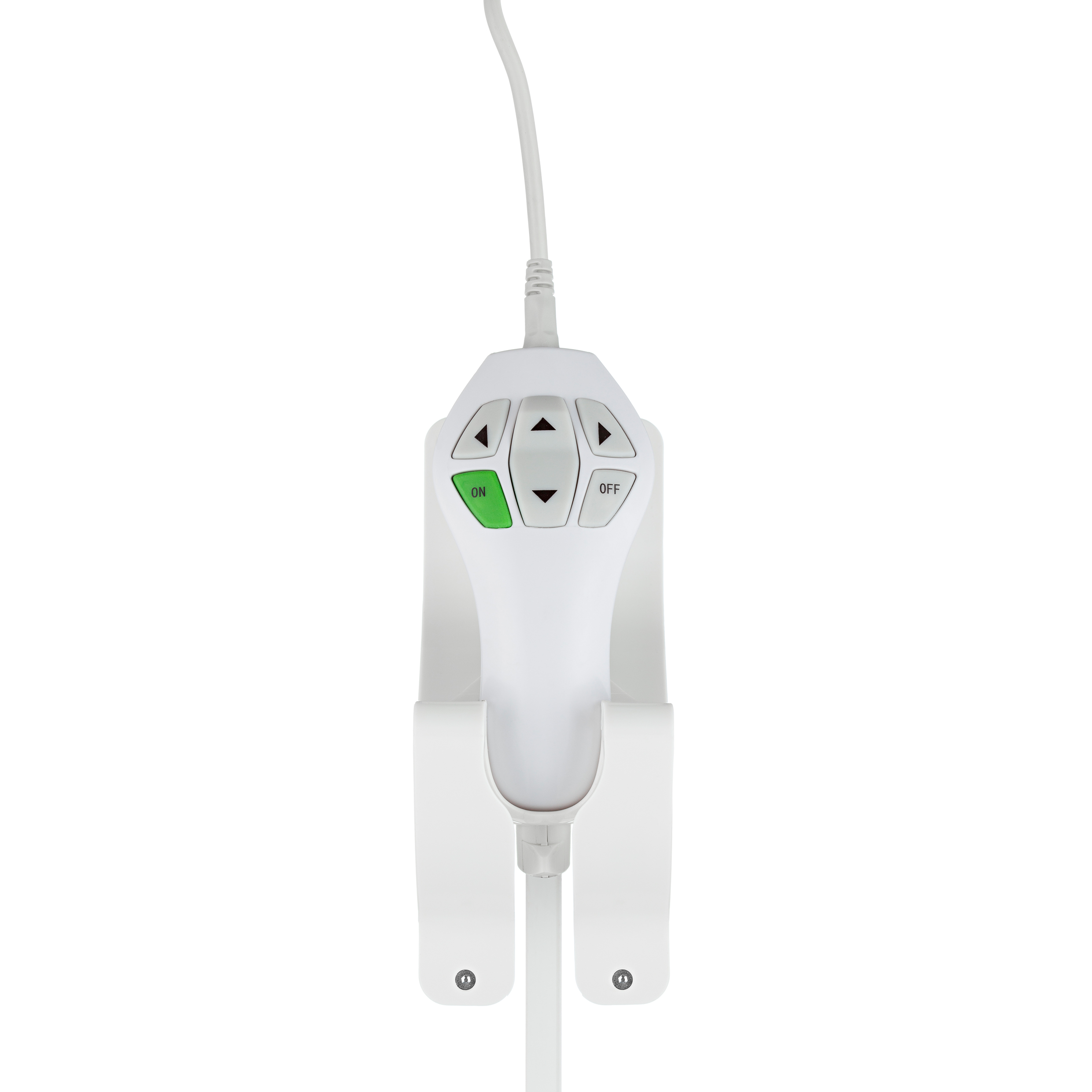

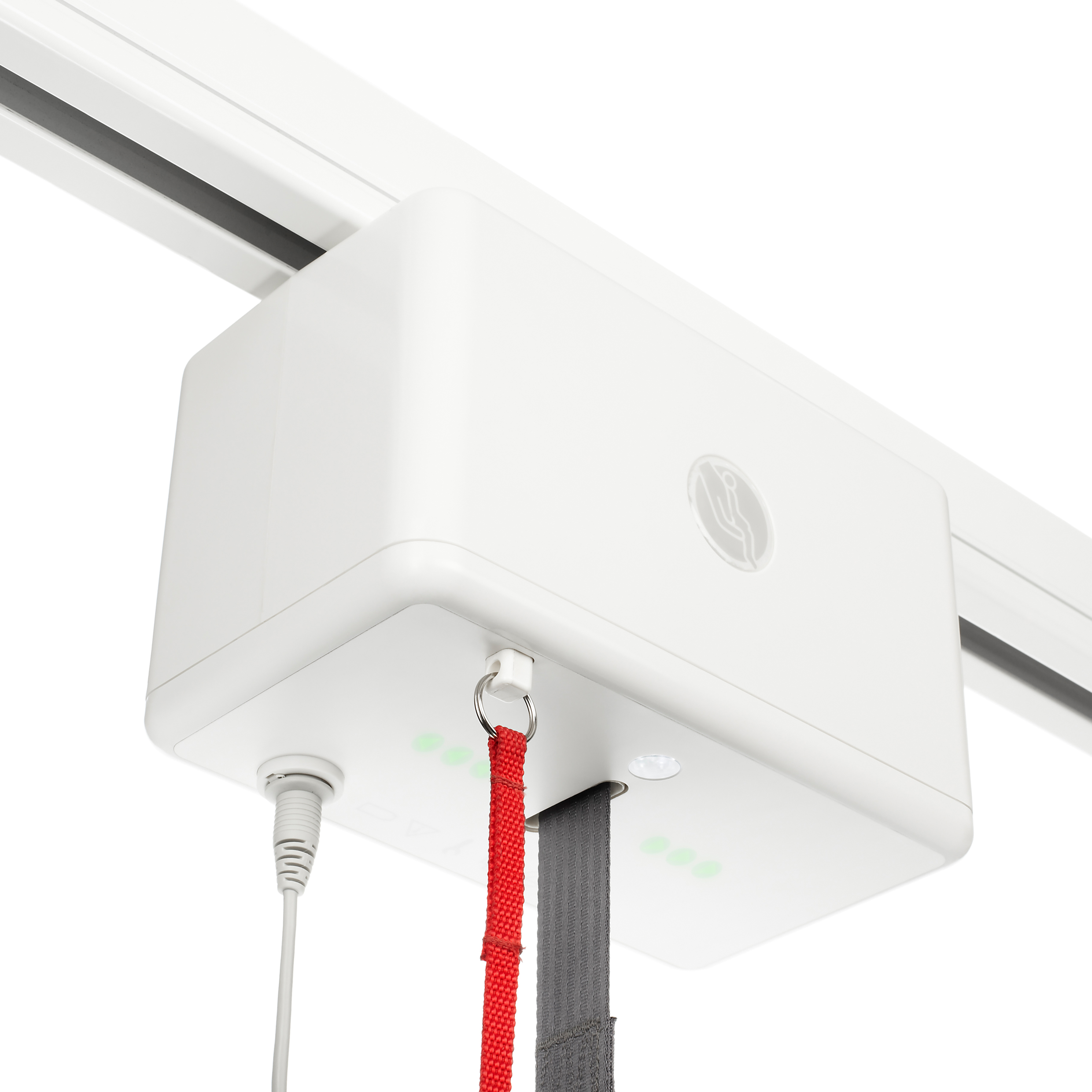

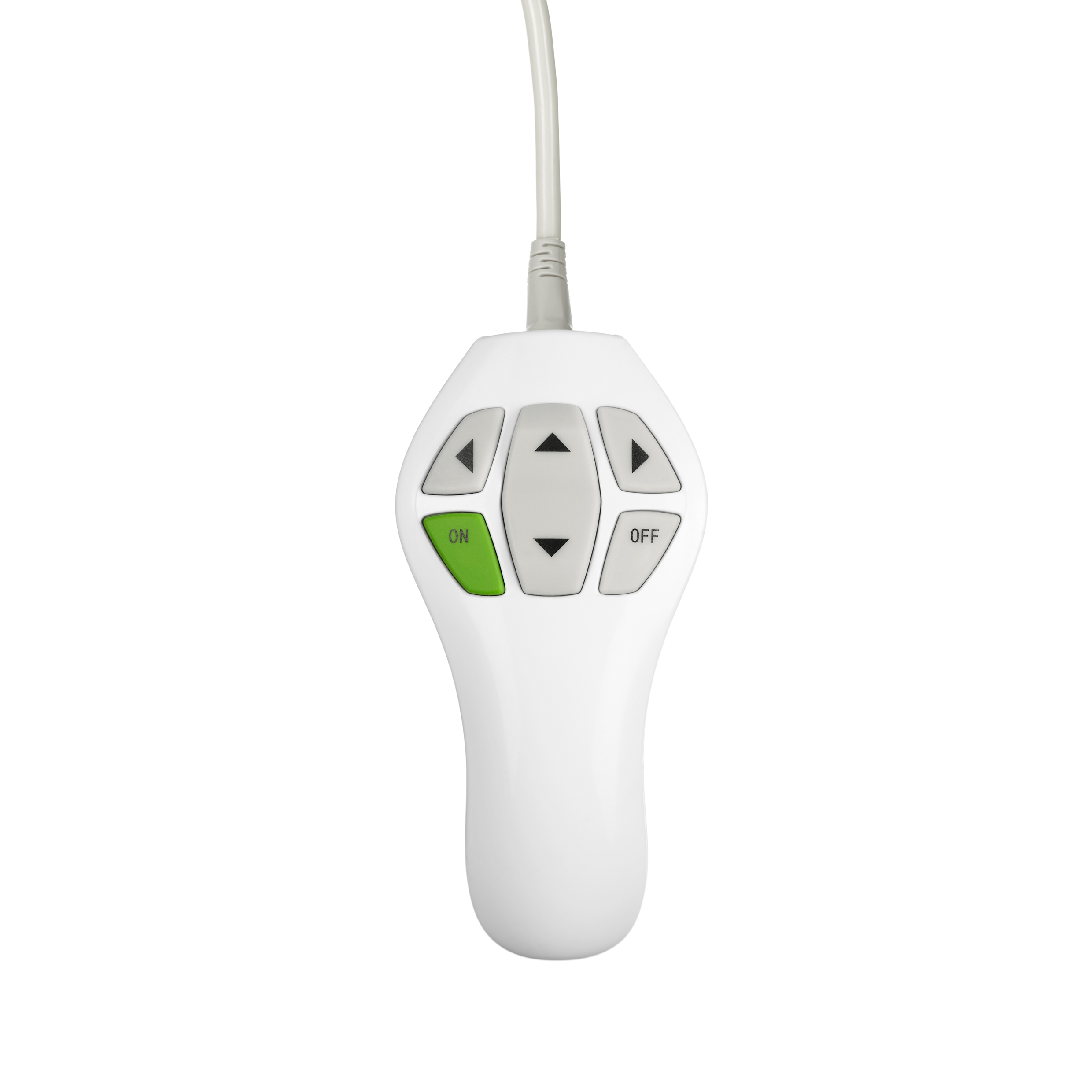

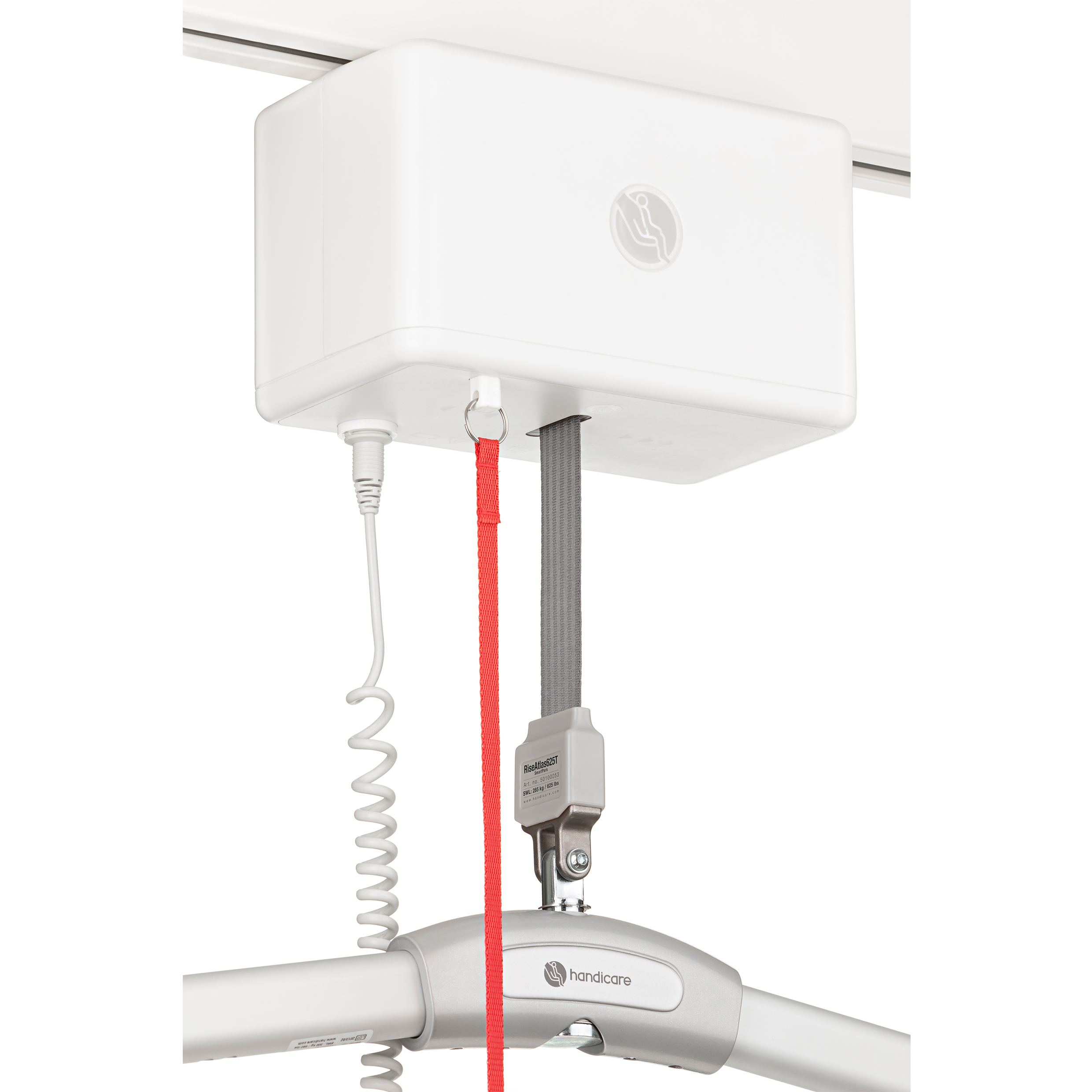

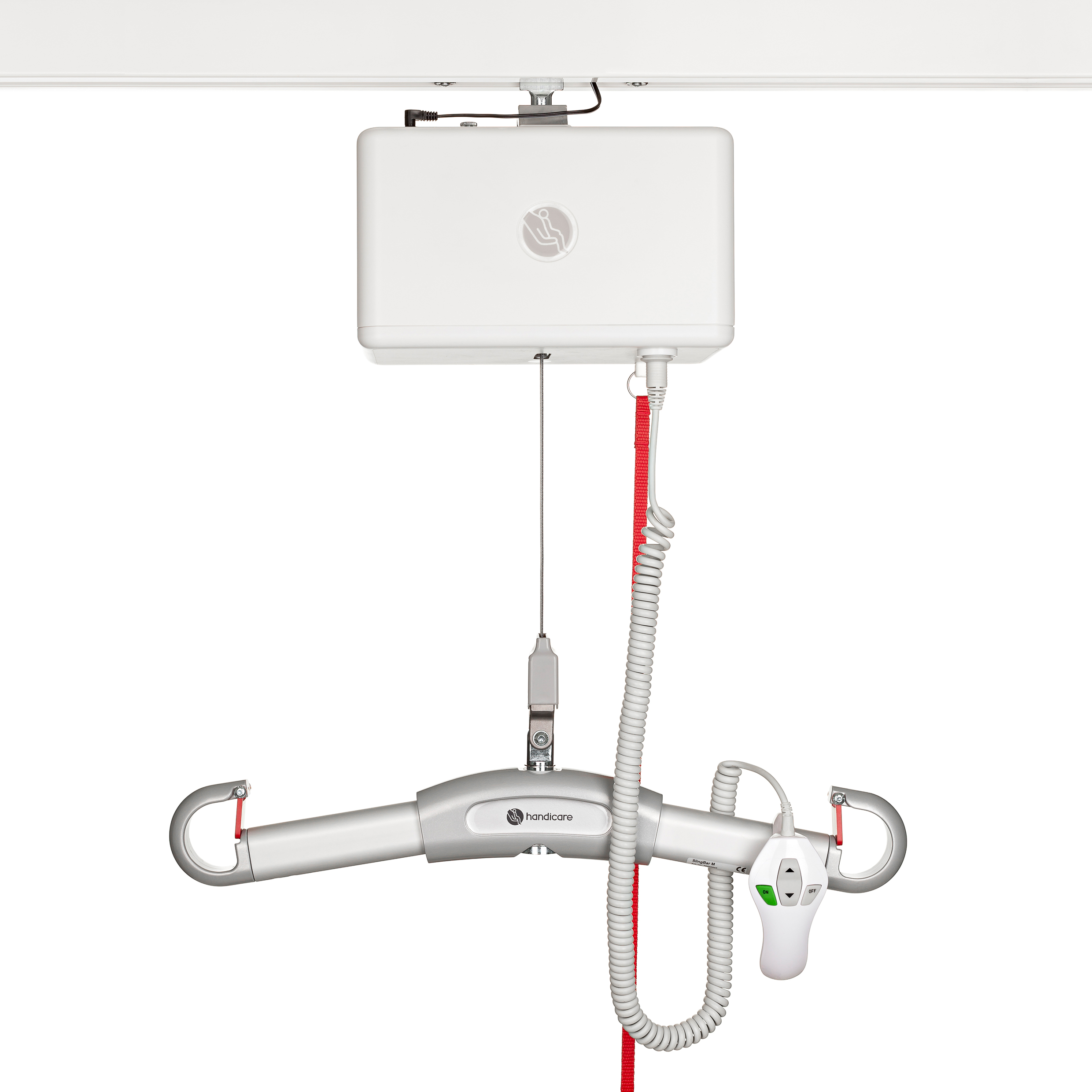

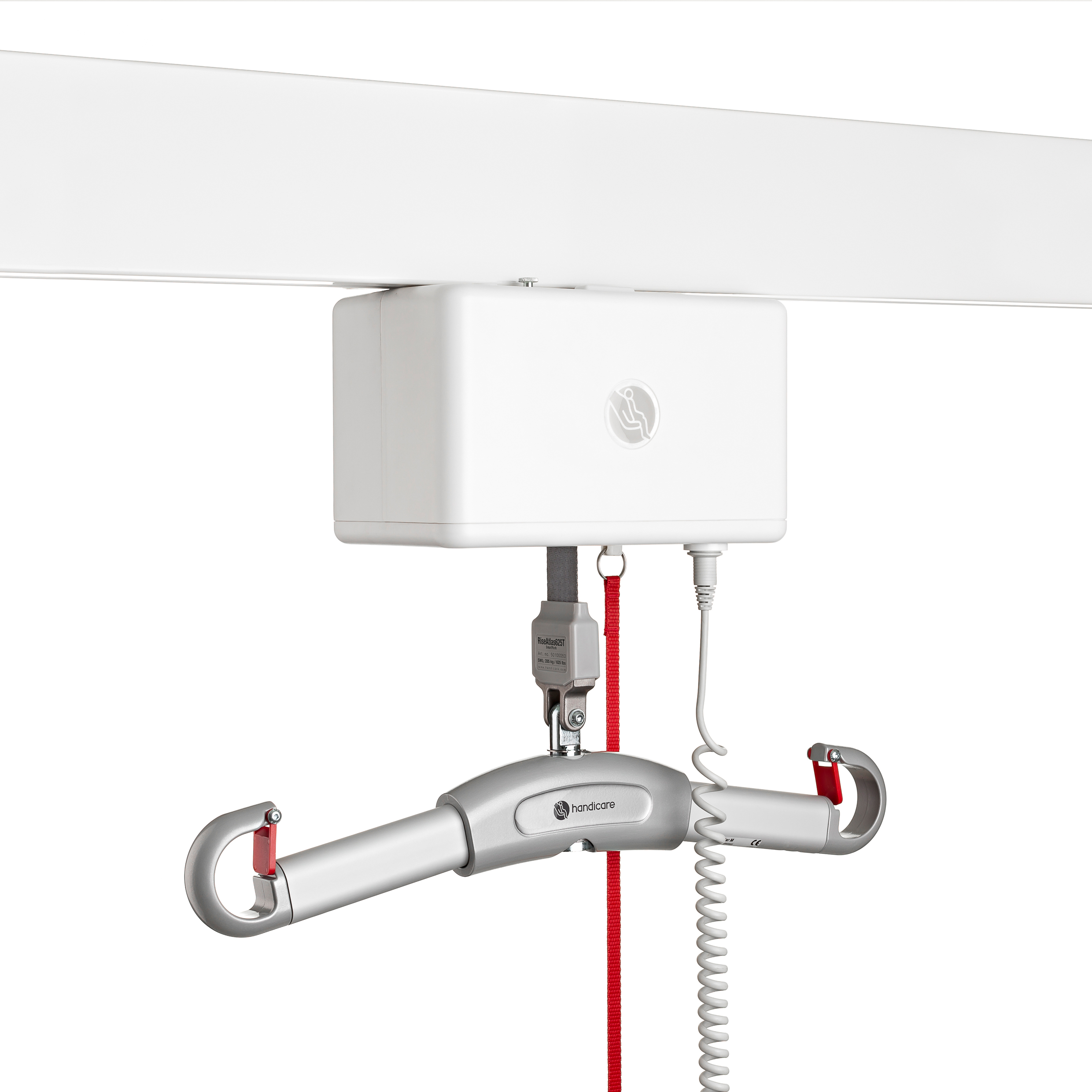

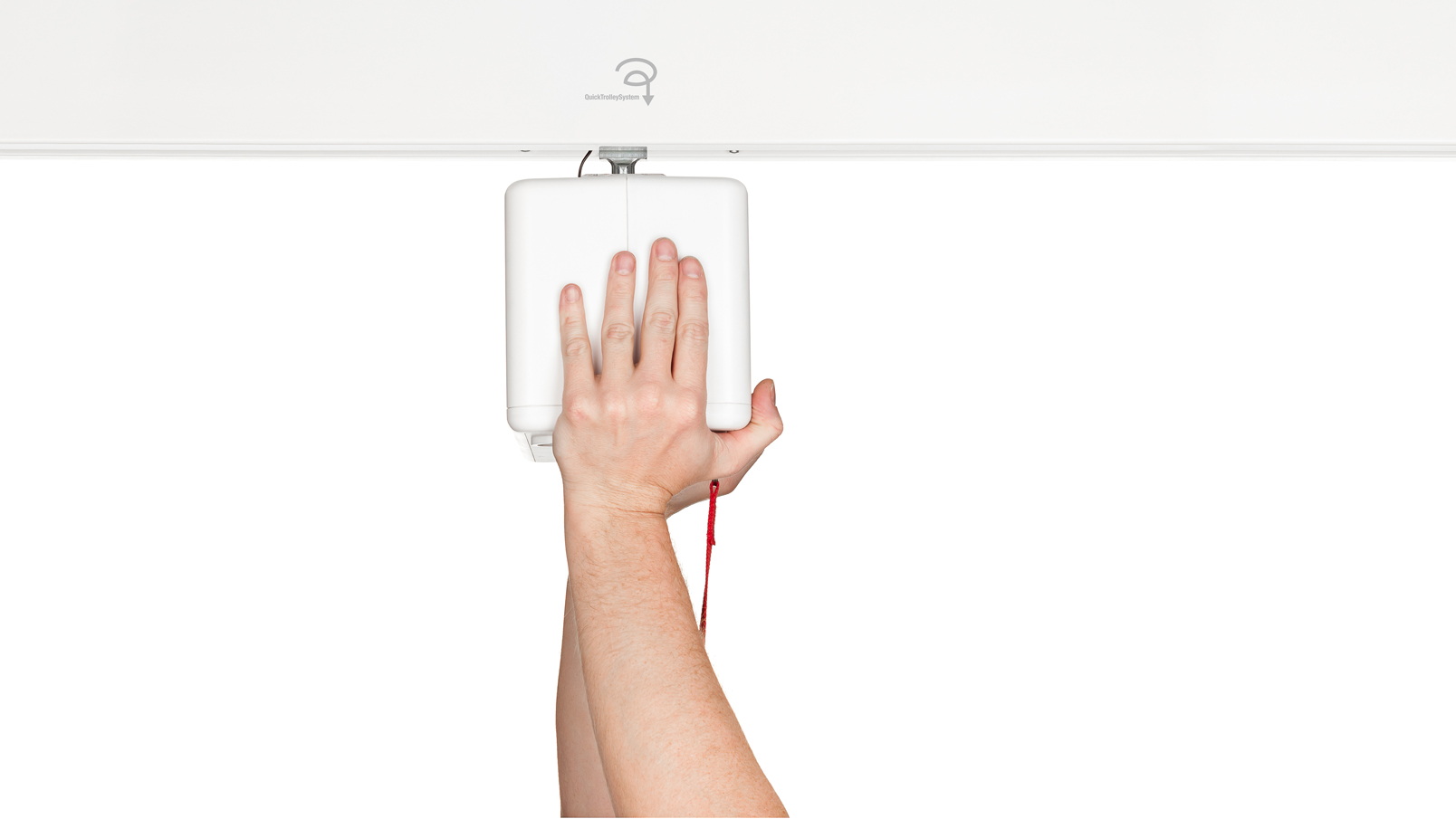

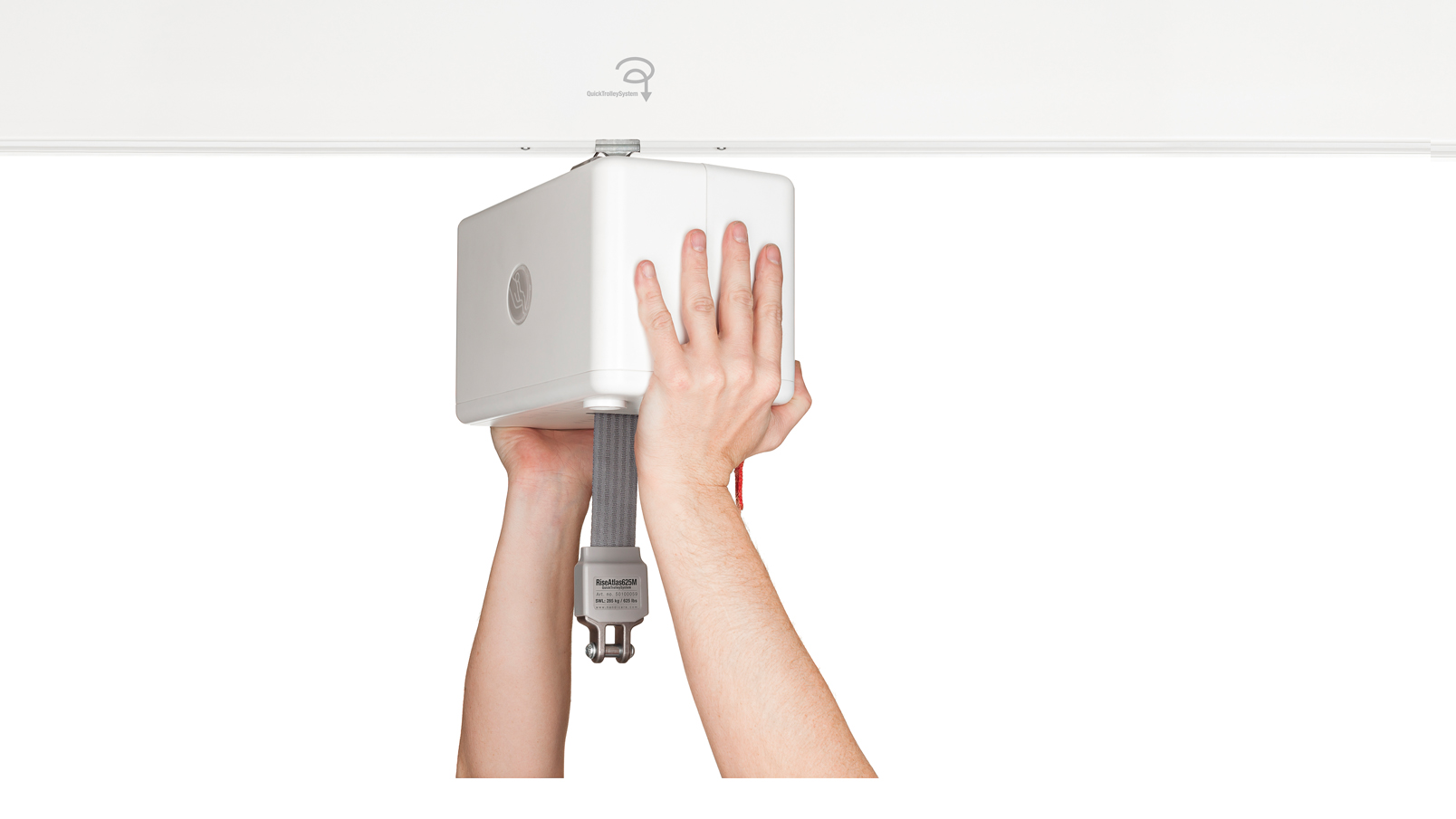

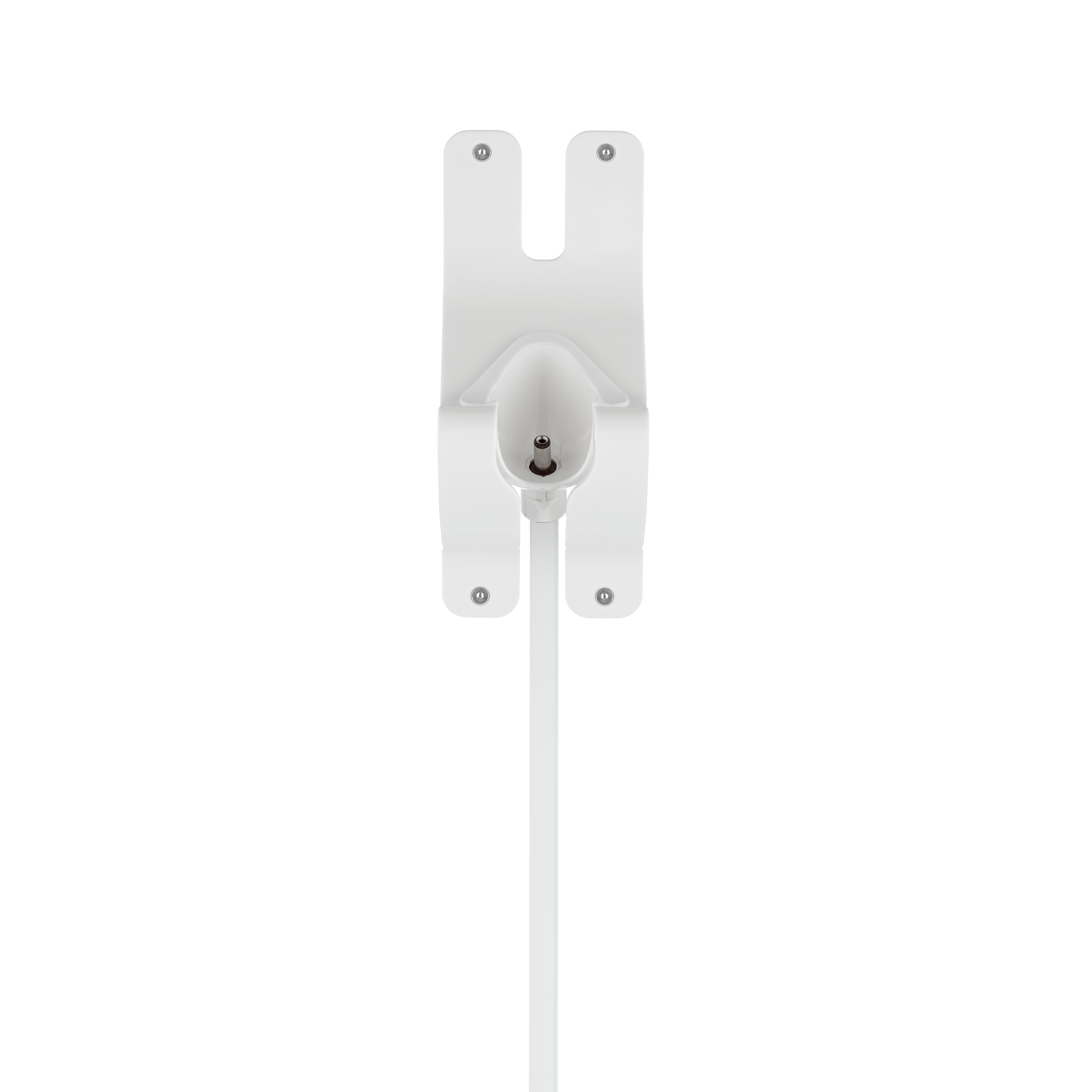

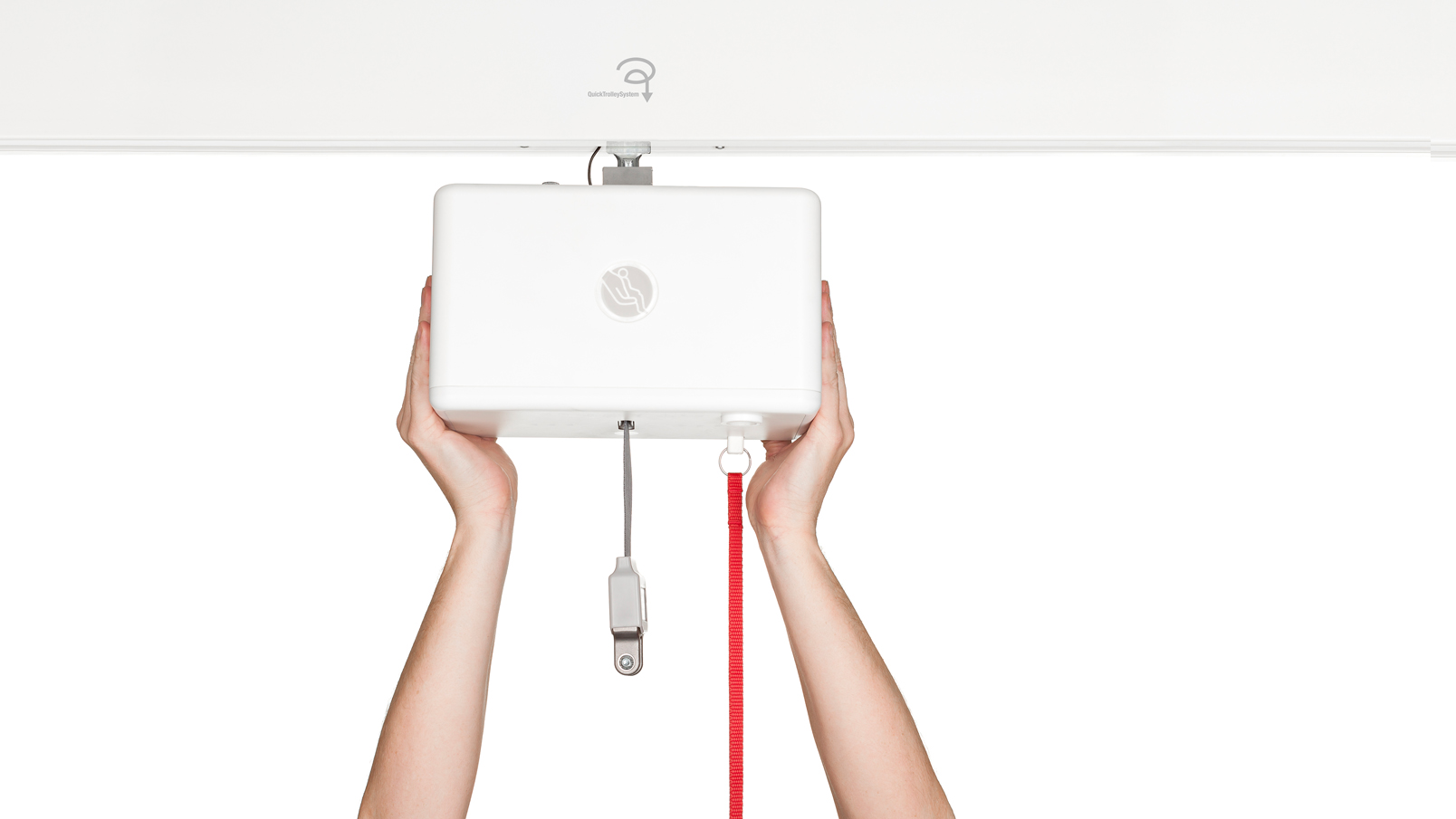

RiseAtlas625RiseAtlas625RiseAtlas625RiseAtlas625RiseAtlas625RiseAtlas625Hand control 4Hand control 6Handcontrol StationHandcontrol Station 4Handcontrol Station 6qtqt (1)qt (2)qt (3) Videos All videos RiseAtlas 625 Unlimited lifting solutions - for users weighing up to 285 kg/625 lbs RiseAtlas625 is a safe and easy-to-use stationary ceiling lift unit available in two models and one special version with and without built-in transfer motor and other features and functionalities. The choice depends on what settings and situations the ceiling lift unit will be used in and, of course, the needs of the users. Manual transfer and QuickTrolleySystem RiseAtlas625M is manually transferred along the rail (M for manual) and features Handicare’s unique QuickTrolleySystem. This model is supplied fitted with a quick release trolley which readily allows for dismantling of the ceiling lift unit from the rail. When used with a specially designed trolley, QuickTrolleyUniversal 360, which is available as an accessory, the ceiling lift unit and the lift strap can also be preset to an angle of 45 or 90 degrees towards the rail for smooth and convenient transfers of users from one room to another. Hand control charging RiseAtlas625M, with QuickTrolleySystem feature easy and convenient hand control charging as standard. The charging station is integrated in a small and discreet holder and parking place for the hand control. The holder is easily installed on the wall, in convenient proximity of the ceiling lift unit’s parking place. In-rail and end point charging The SmartPark special version of RiseAtlas625T features a unique charging solution, with one trolley for two charging options as standard. The ceiling lift unit can be set to function either with end point charging or with in-rail charging. If necessary, the settings can easily be altered. As an optional extra, RiseAtlas ceiling lift units with hand control charging can also be equipped with this unique charging solution. For all rail systems and settings, in all situations and for all user needs RiseAtlas625 can be used in all settings and in all types of rooms, both on permanent rail systems and on portable, freestanding lift stands. When used with the appropriate lifting accessories, RiseAtlas625 provides secure, comfortable and individually adapted lifting of users in connection with seated or horizontal transfers to and from the bed, wheelchair or toilet. RiseAtlas625 offers a large lifting area and the possibility of both very low and very high lifting, making it an excellent solution also for lifting from the floor and for gait training and standing training. RiseAtlas625 can also be used for convenient transfer of users from one room to another. Compact and light-weight RiseAtlas625 features unusually small measurements, extremely low weight and a number of unique and very practical features as standard. The handy size offers many practical advantages. And combined with the modern and elegant design of the ceiling lift unit, it also contributes to the creation of professional and highly functional environments with a harmonic and human atmosphere. In fact, RiseAtlas625 is a modern and stylish ceiling lift unit offering unlimited lifting solutions with more performance, more flexibility, more simplicity and convenience, and more reliability compared to other ceiling lift units available on the market. Compact and extremely light-weight Modern, elegant and hygienic design Very easy to use, providing safe working conditions and allowing the caregiver to remain close to the user throughout the entire lifting procedure Moves silently and gently, soft start and stop Ergonomic and easy-to-use hand control On/Off-button on the hand control prevents unauthorized use of lift functions Night light Manual emergency stop Electrical and manual emergency lowering Overload protection Over speed protection Slack strap switch Efficient strap control preventing accidental twisting of the lift strap High capacity, environmentally friendly NiMH battery Easy and convenient hand control charging as standard (except for the SmartPark special version) The SmartPark special version features a unique charging solution, with one trolley for two charging options In-rail/end point charging is also available as an accessory for models with hand control charging as standard Discreet information panel Easy to service Diagnostics, a special software available as an accessory allows a PC to access further information about the ceiling lift unit Many accessories for safe, easy and individually adapted lifting of users Handicare lifting slings and other accessories To create optimal solutions for users with different needs, all models and special versions of RiseAtlas 625 can be used in combination with lifting slings and many clever and functional lifting accessories in Handicare’s Lifting range. Click “Accessories” and “See also” hereunder for more information. RiseAtlas625 meets the requirements of the Medical Devices Directive for Class 1 products 93/42/EEC. Send a messageName*Email* Country*MessageCommentsThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Turning In Bed Model specificationArt. no.5010005950100060NameRiseAtlas625RiseAtlas625DescriptionWith QuickTrolleySystem. With hand control and charger. Sling bar is ordered separately.With hand control and charger. Sling bar is ordered separately.Total length266 mm266 mmTotal width151 mm151 mmTotal height156 mm156 mmTotal weight7.3 kg7.5 kgLifting range2400 mm2400 mmLifting speed without load50 mm/s50 mm/sLifting speed with load39 mm/s39 mm/sSound level with load55 db(A)55 db(A)BatteryNiMH 24V 3.2 Ah/768WhNiMH 24V 3.2 Ah/768WhProtection class, lift unitIP20IP20Protection class, hand controlIPX4IPX4SWL285 kg285 kgUnit11Transfer speed without load140 mm/sTransfer speed with load120 mm/sMaterial, chassisAluminiumAluminiumMaterial, coverNon flammable ABS plasticNon flammable ABS plasticEmergency loweringElectrical and manualElectrical and manualEmergency stopManualManualHand controlElectrical, 4 buttonsElectrical, 6 buttonsHand control chargingStandardStandardIn-rail chargingOptional, accessoryOptional, accessoryEnd point chargingOptional, accessoryOptional, accessoryEfficient strap controlStandardStandardTransfer in railManualTransfer motor DocumentsDocument nameTypeSize Product brochure RiseAtlas EN INT 2 MB User manual RiseAtlas450T & 625T SmartPark EN INT 2 MB Care instructions (multilingual) 2 MB Technical data sheet RiseAtlas625M QT EN INT 651 KB User manual RiseAtlas450T & 625T Multilingual 9 MB User Manual RiseAtlas625M with Quick Trolley Multilingual 20 MB Safety information (multilingual) 2 MB Technical data sheet RiseAtlas625T EN INT 649 KB User manual RiseAtlas625M QuickTrolley EN INT 2 MB Technical data sheet RiseAtlas625T SP EN INT 660 KB Gebrauchsanweisung RiseAtlas450T & 625T SmartPark DE 2 MB Gebrauchsanweisung RiseAtlas625M QuickTrolley DE 2 MB Manual RiseAtlas450T & 625T SmartPark FR 2 MB Manual RiseAtlas625M QuickTrolley FR 2 MB Handleiding Riseatlas450T & 625T SmartPark NL 2 MB Handleiding Riseatlas625M QuickTrolley NL 2 MB Manual RiseAtlas450T & 625T SmartPark ES 2 MB Manual RiseAtlas625M & Quicktrolley ES 2 MB Manual Riseatlas450T & 625T SmartPark IT 2 MB Manual RiseAtlas625M QuickTrolley IT 2 MB Bruksanvisning RiseAtlas450T & 625T SmartPark SE 2 MB Bruksanvisning RiseAtlas625M QuickTrolley SE 2 MB Manual Riseatlas450T & 625T SmartPark NO 2 MB Manual RiseAtlas450T & 625T SmartPark DK 2 MB Käyttöohje RiseAtlas450T & 625T SmartPark FI 2 MB Technical information and accessories - overview (multilingual) 687 KB
