Stair newel grab rails

Extra support on spiral staircases and on corners

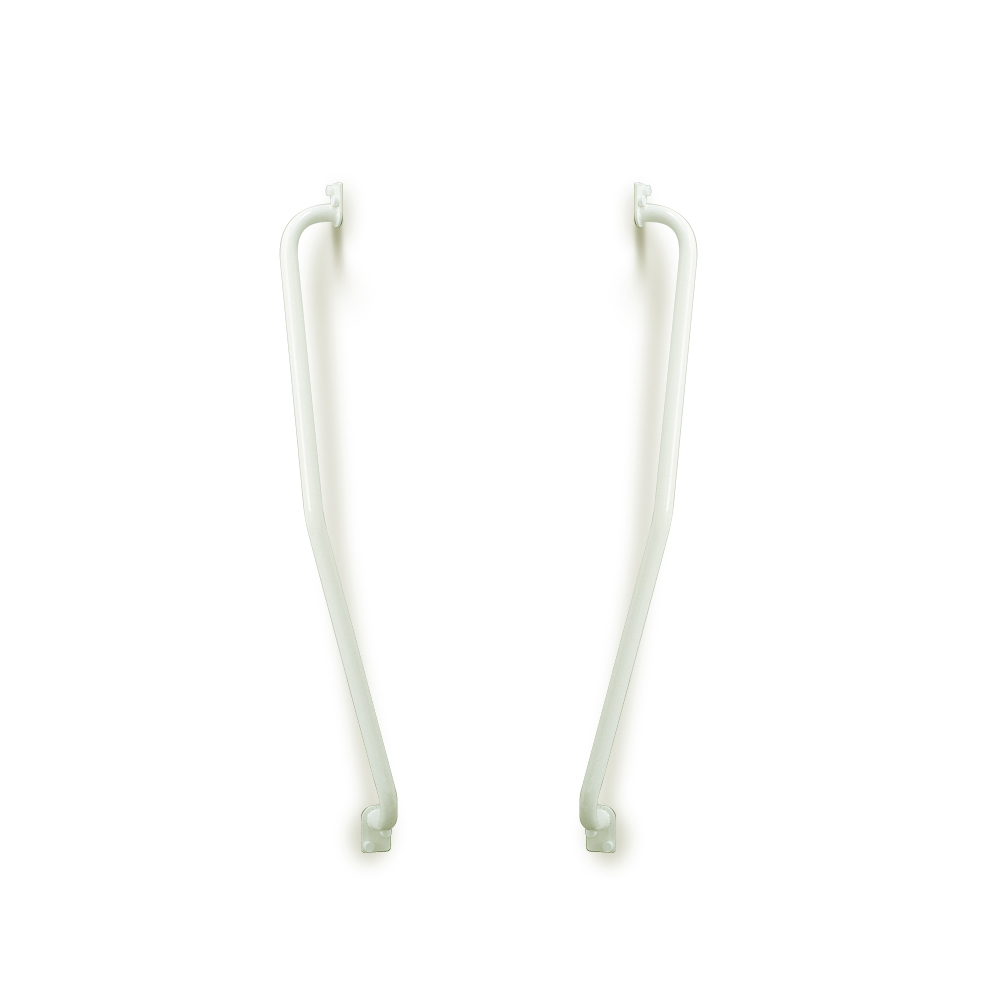

On spiral staircases it is often difficult to provide support on the newel side. The Linido™ Stair newel grab rail offers support on the newel side of the staircase allowing users to hold on to the continuous rail when going up and down the stairs.

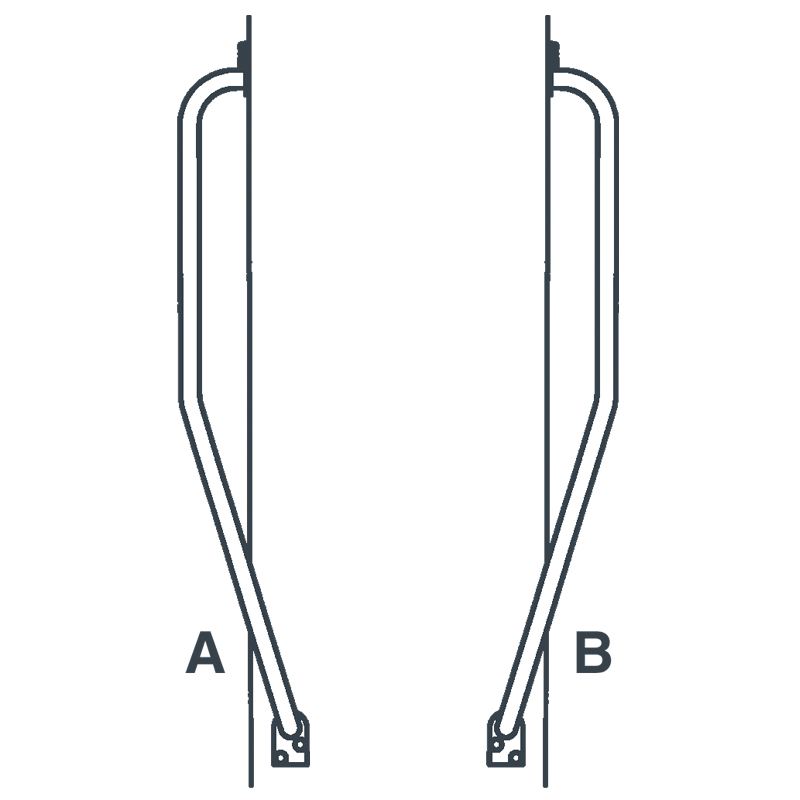

Handicare’s Stair newel grab rail is available in two variants: for installation on a left side and on a right side stair newel. The grab rails can also be installed in regular staircases and on the external corner of two walls.

As there is often limited space for affixing flanges on the newel, the flanges have been designed to be as small as possible; only 50 mm wide and 80 mm high.

Order information

Handicare’s Stair newel grab rails are available in several materials and colours; coated steel and coated stainless steel (white/anthracite) and polished stainless steel. For complete article numbers, please consult the Order information document which is available as a pdf in the “Documentation” section hereunder.

  • Two variants; for stair newels on the left and on the right hand side
  • Can also be installed on regular staircases and on the external corner of two walls
  • Ergonomic diameter; 28.6 mm (steel) and 28 mm (stainless steel), provides a secure grip
  • The distance between tube and wall provides plenty of room for the hand
  • Durable steel or stainless steel
  • Hygienic design with rounded shapes and sleek surfaces
  • Easy to install, Wall mounting set (art. no. LI2807.0000-00) is available as an accessory
  • Supplied complete with Insulation set M6 x 4 (art. no. LI2860.0000-00), which provides for electrical insulation and covering of fixing points for a stylish look and to make the grab rail easy to keep clean
  • Extremely secure, provides reliable support for users weighing up to 150 kg
  • 5 years warranty

Send a message

  • This field is for validation purposes and should be left unchanged.
Model specification
Art. no.LI2611.011x-xxLI2611.012x-xx
NameStair newel grab railsStair newel grab rails

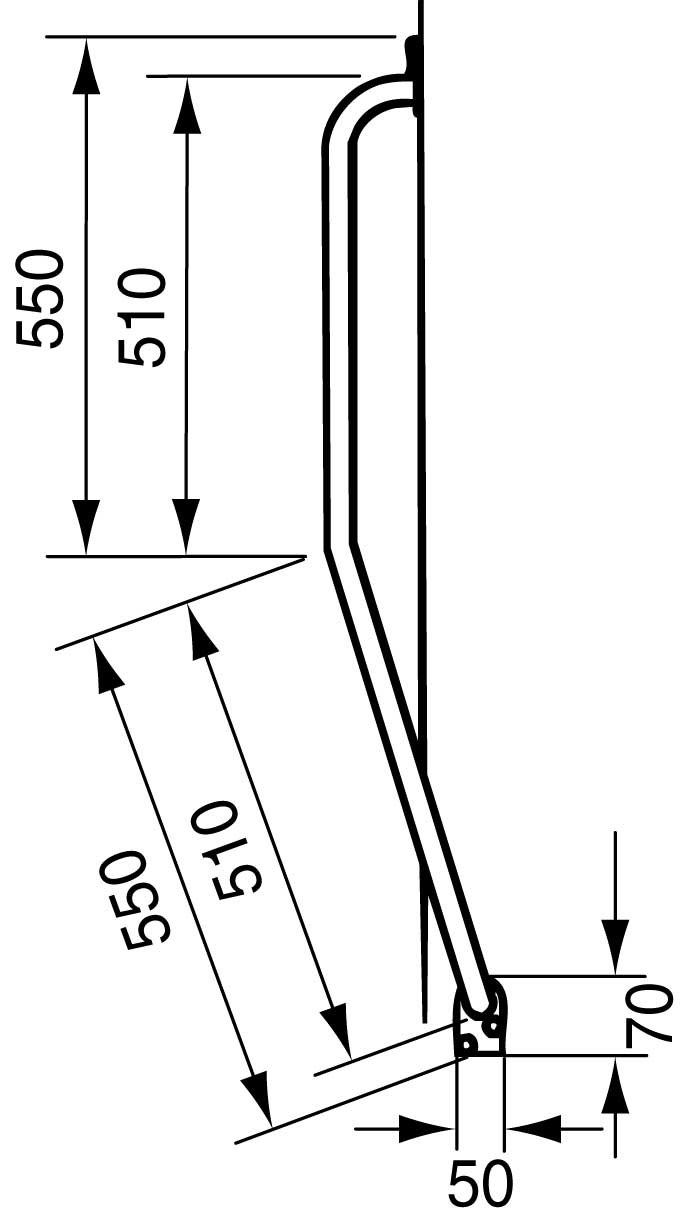

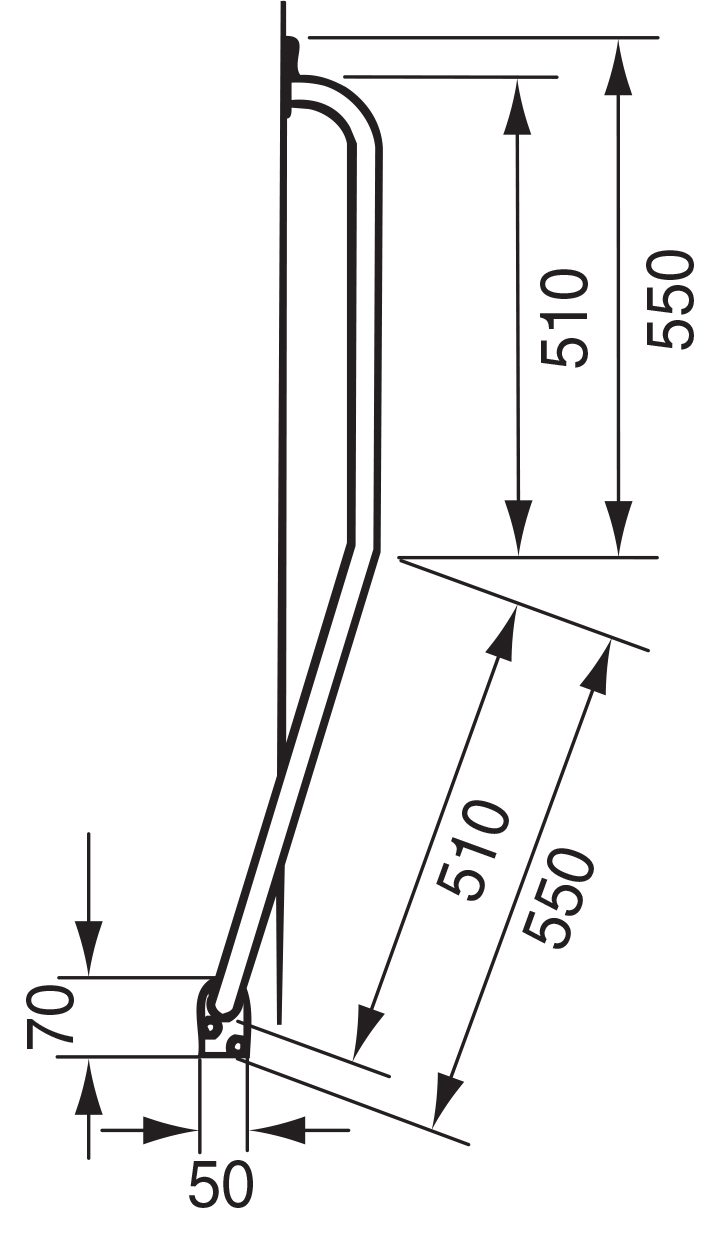

DescriptionFor right side stair newels or external corners of two walls, grip length 510 x 510 mm, incl. Insulation set M6 x 4For left side stair newels or external corners of two walls, grip length 510 x 510 mm, incl. Insulation set M6 x 4
Coated steel white: LI2611.0111-02Coated steel white: LI2611.0121-02
Polished stainless steel white plastic flanges and covers: LI2611.0112-00Polished stainless steel white plastic flanges and covers: LI2611.0122-00
Coated stainless steel white: LI2611.0114-02.Coated stainless steel white: LI2611.0124-02.
Total length1100 mm1100 mm
Tube diameter28-28.6 mm28-28.6 mm
Number of flanges22
Max. user weight150 kg150 kg
