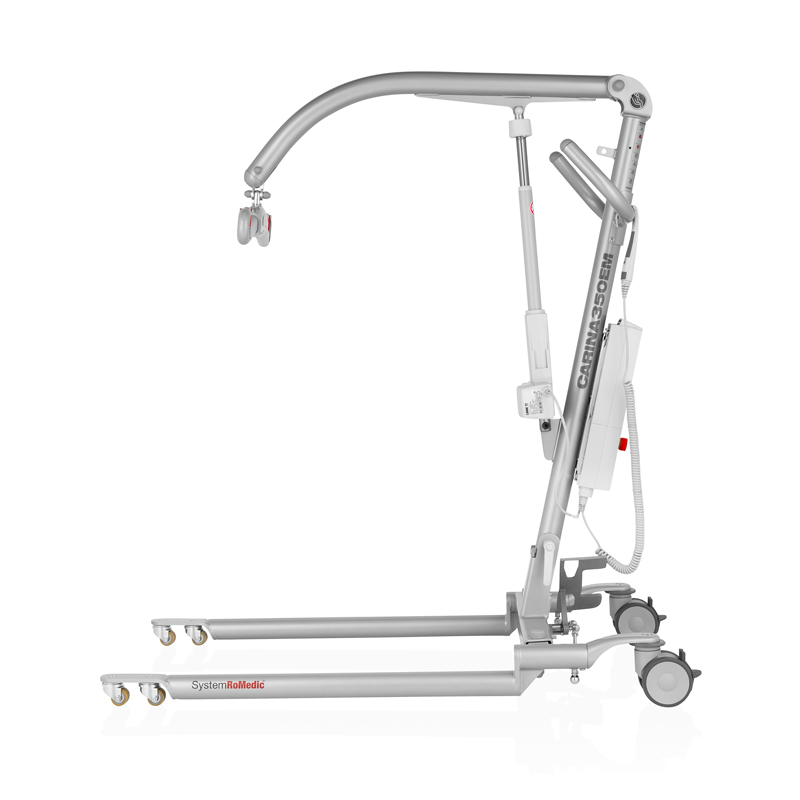

Carina350EM/EE

A versatile and economical solution for safe and easy lifting

Application areas
  • Positioning In Chair
  • Rising To Sitting Down
  • Standing Training
  • Supine Transfer
  • Support For Gait Training
  • Turning In Bed
  • From Bed To Commode
  • Up From The Floor
  • From Bed To Wheelchair
  • From Wheelchair To Toilet
  • Higher Up In Bed
  • Lying To Sitting
Model specification
Art. no.60600009606000116060001260600014
NameCarina350EECarina350EMCarina350EMCarina350EE
DescriptionMobile lift with electrical base wideningMobile lift with manual base wideningMobile lift with manual base widening and low legsMobile lift with electrical base widening and low legs
Safe working load165 kg165 kg165 kg165 kg
Total height1290-1840 mm1290-1840 mm1290-1840 mm1290-1840 mm
Base length1150 mm1150 mm1150 mm1150 mm
Base width, outer dimensions680-1080 mm680-1080 mm680-1080 mm680-1080 mm
Base width, inner dimensions560-940 mm560-940 mm560-940 mm560-940 mm
Total weight36 kg34.5 kg34.5 kg36 kg
Front castors, diameter100 mm100 mm35 mm35 mm
Rear castors, diameter100 mm100 mm100 mm100 mm

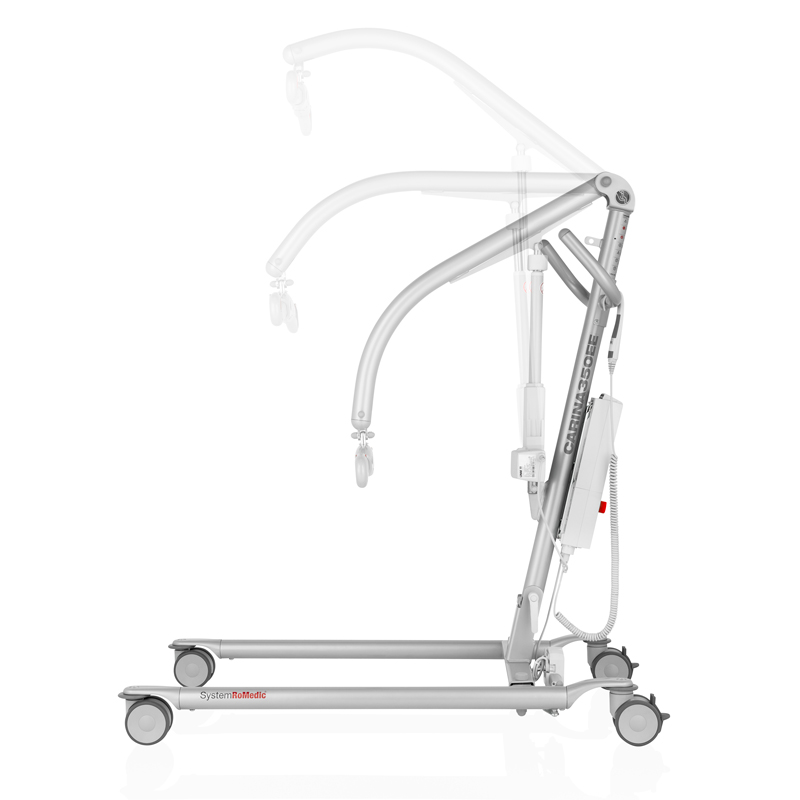

Lifting range580-1680 mm580-1680 mm580-1680 mm580-1680 mm
Lifting speed without load23 mm/s23 mm/s23 mm/s23 mm/s
Battery capacity2.9 Ah2.9 Ah2.9 Ah2.9 Ah

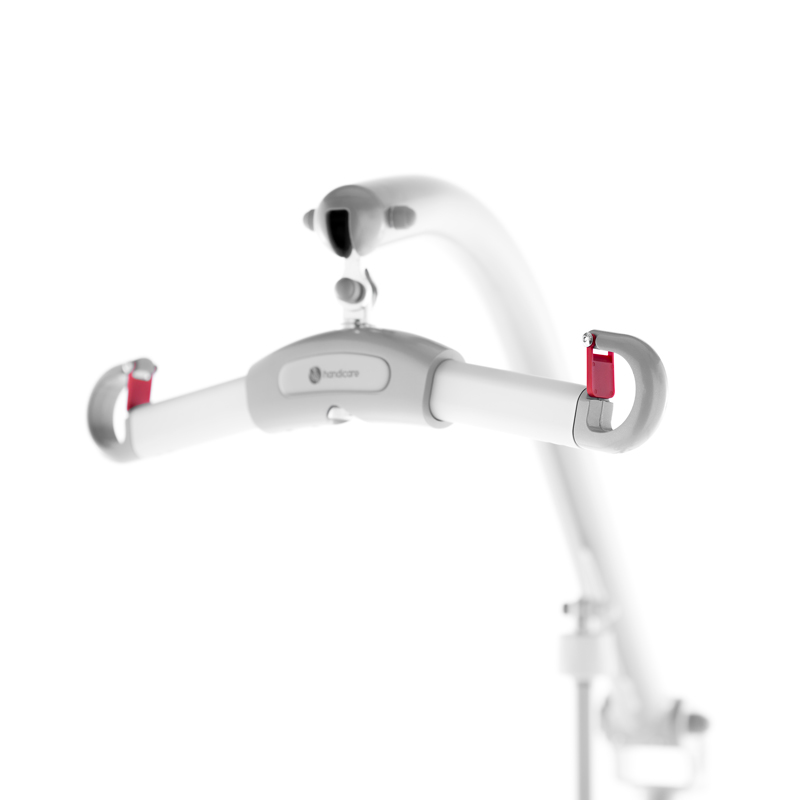

Sling bar width450 mm450 mm450 mm450 mm
Protection classIPX4 IPX4 IPX4 IPX4
Unit1 1 1 1
MaterialPowder-coated steelPowder-coated steelPowder-coated steelPowder-coated steel
Base wideningElectricalManualManualElectrical
Emergency loweringManual and electricalManual and electricalManual and electricalManual and electrical
Material, sling barAluminiumAluminiumAluminiumAluminium
