Handicare Commode Shower Chair Soft Seat

Commode/shower chair soft seat

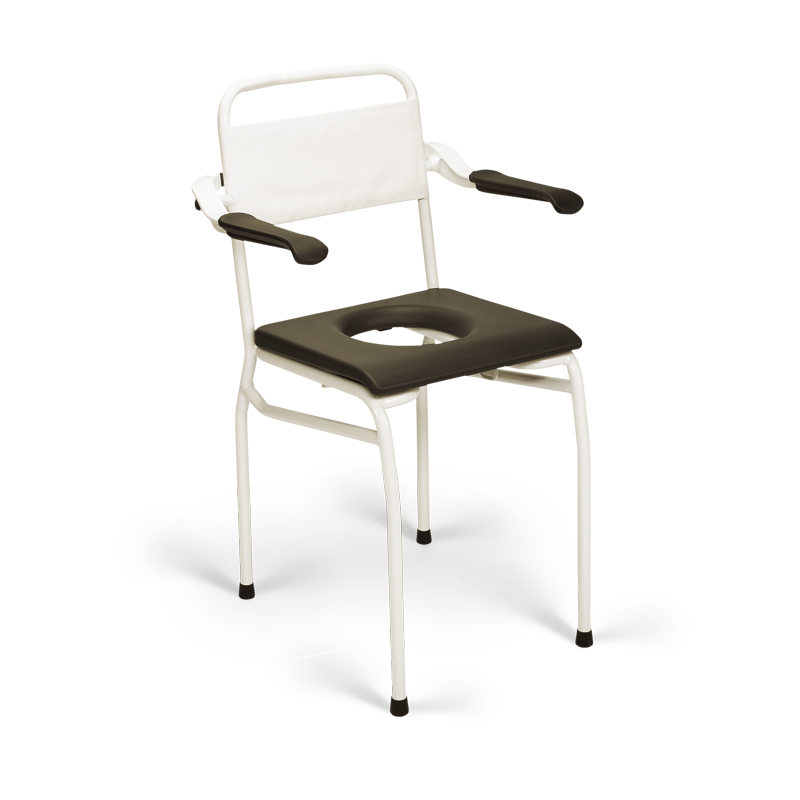

A freestanding commode/shower chair available in four variants

Model specification

Art. no.	LI2135.011x-xx	LI2135.021x-xx	LI2135.111x-xx	LI2135.121x-xx
Name	Commode/shower chair soft seat	Commode/shower chair soft seat	Commode/shower chair soft seat	Commode/shower chair soft seat
Description	Freestanding chair, toilet seat with closed front, seat height 610 mm, complete with toilet rails for bedpans or buckets with a diameter of 300-315 mm	Freestanding chair, toilet seat with open front, seat height 610 mm, complete with toilet rails for bedpans or buckets with a diameter of 300-315 mm	Freestanding chair, toilet seat with closed front, seat height 530 mm, complete with toilet rails for bedpans or buckets with a diameter of 300-315 mm	Freestanding chair, toilet seat with open front, seat height 530 mm, complete with toilet rails for bedpans or buckets with a diameter of 300-315 mm
Total width	625 mm	625 mm	625 mm	625 mm
Total height	1010 mm	1010 mm	960 mm	960 mm
Backrest width	450 mm	450 mm	450 mm	450 mm
Armrests length	415 mm	415 mm	415 mm	415 mm
Armrests width	60 mm	60 mm	60 mm	60 mm
Armrests height	250 mm	250 mm	250 mm	250 mm
Total depth	635 mm	635 mm	635 mm	635 mm
Seat height	610 mm	610 mm	530 mm	530 mm
Seat depth	450 mm	450 mm	450 mm	450 mm
Max user weight	200 kg	200 kg	200 kg	200 kg
Seat width	450 mm	450 mm	450 mm	450 mm
Max. load on armrest	100 kg	100 kg	100 kg	100 kg

Documents

Document name	Type	Size
User manual Commode/shower chair soft seat (multilingual)		2 MB
Technical drawing Commode/shower chair soft seat EN		114 KB
Order information Commode/shower chair soft seat EN INT		393 KB
