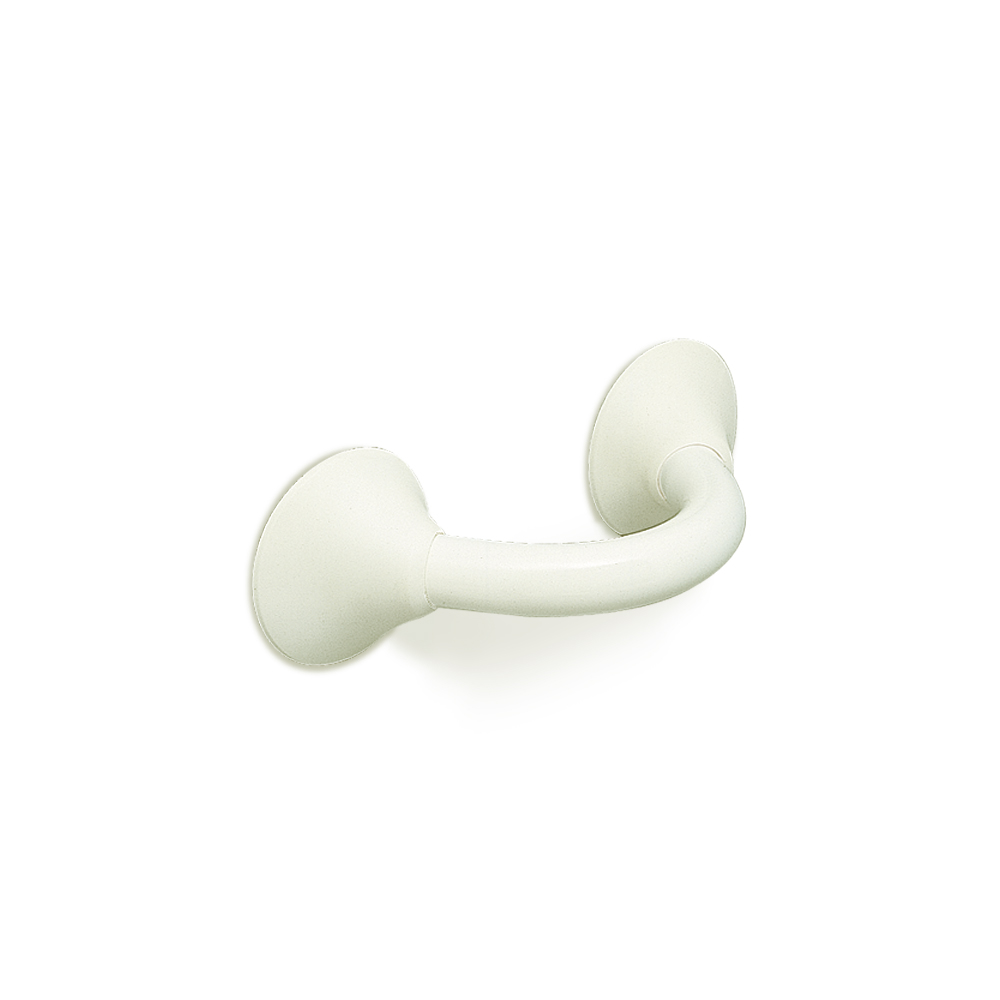

Handicare Ergogrip Straight 5

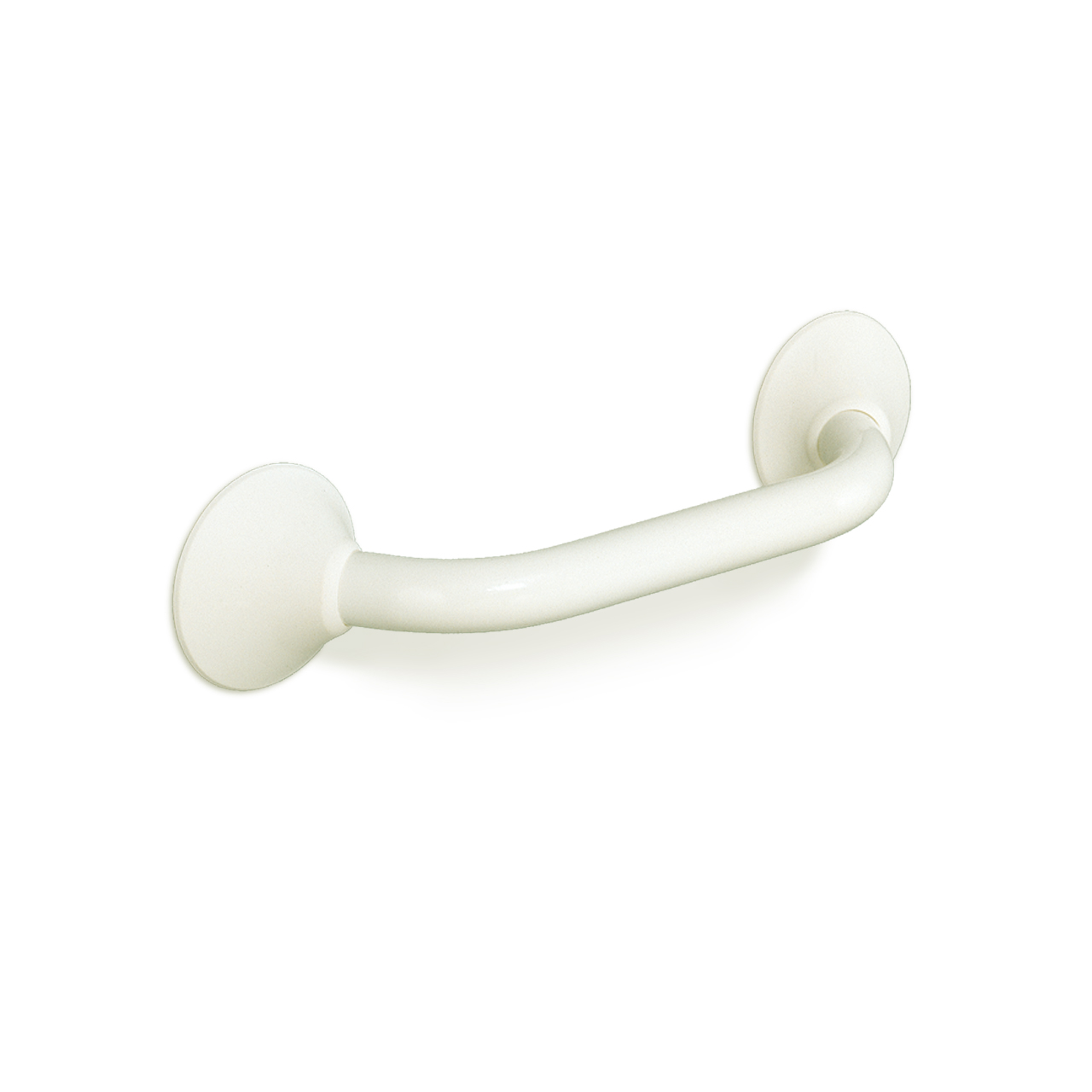

Handicare Ergogrip Straight 2

2611 020

2611 030 140

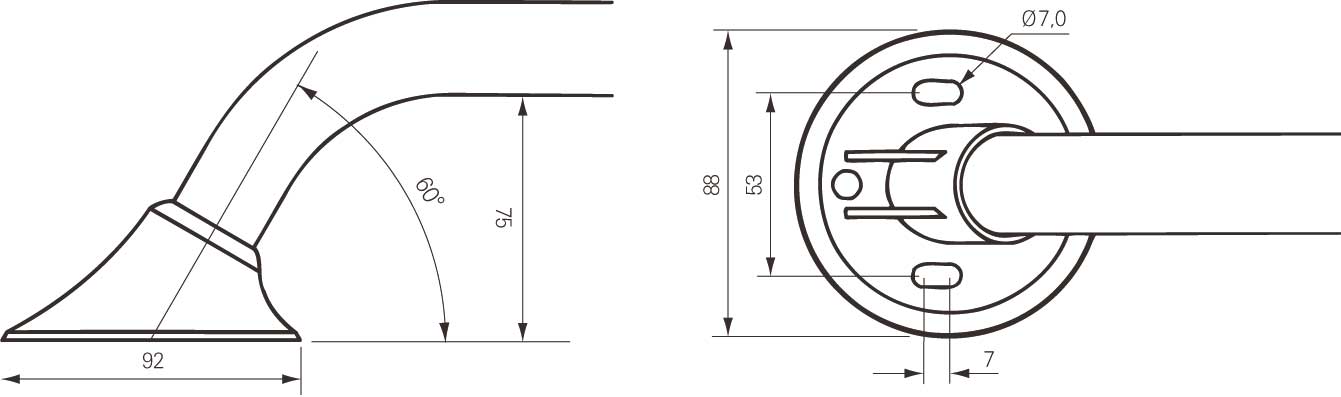

Ergogrip

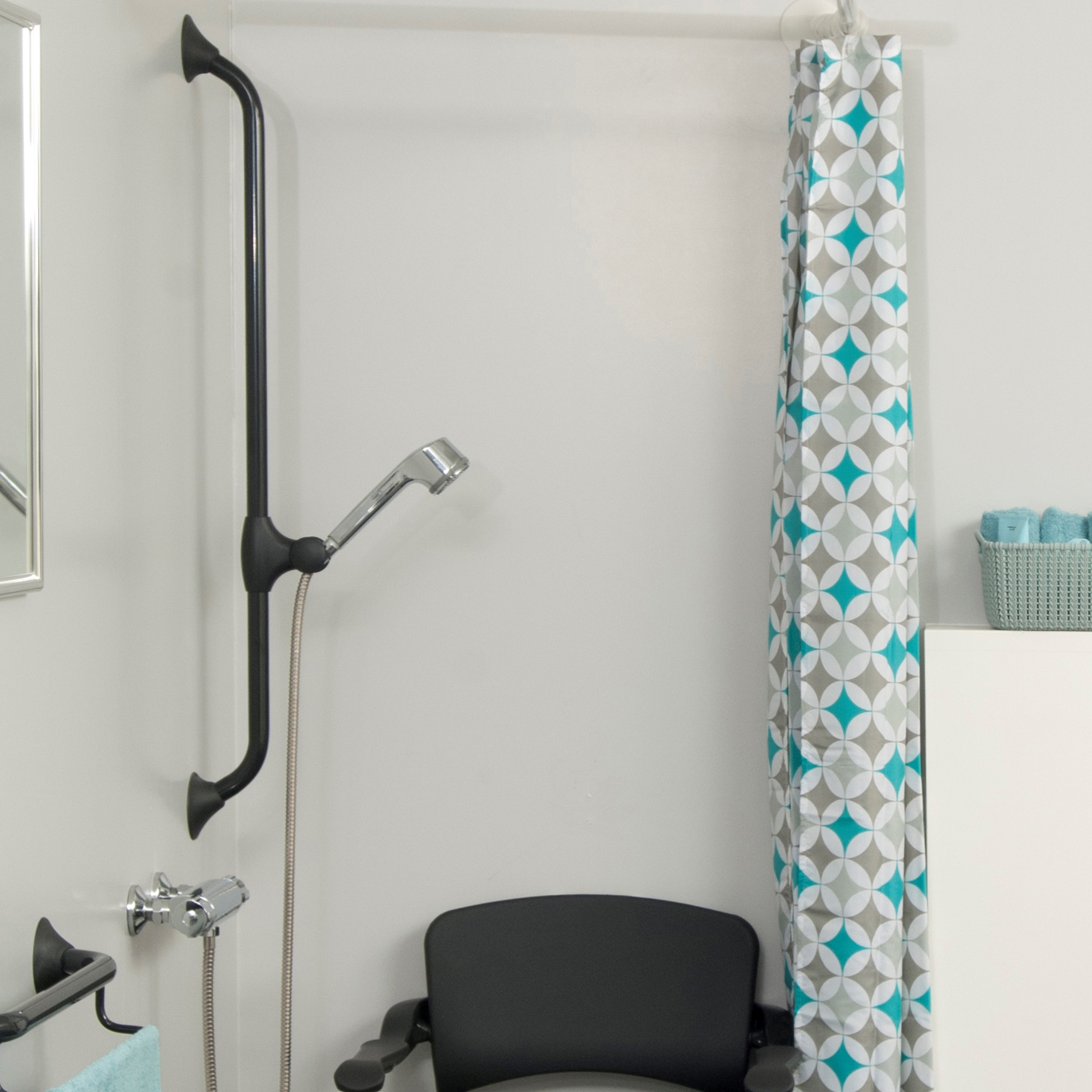

LI2611.0901-11 en LI2630.2006-11 omgeving.jpg

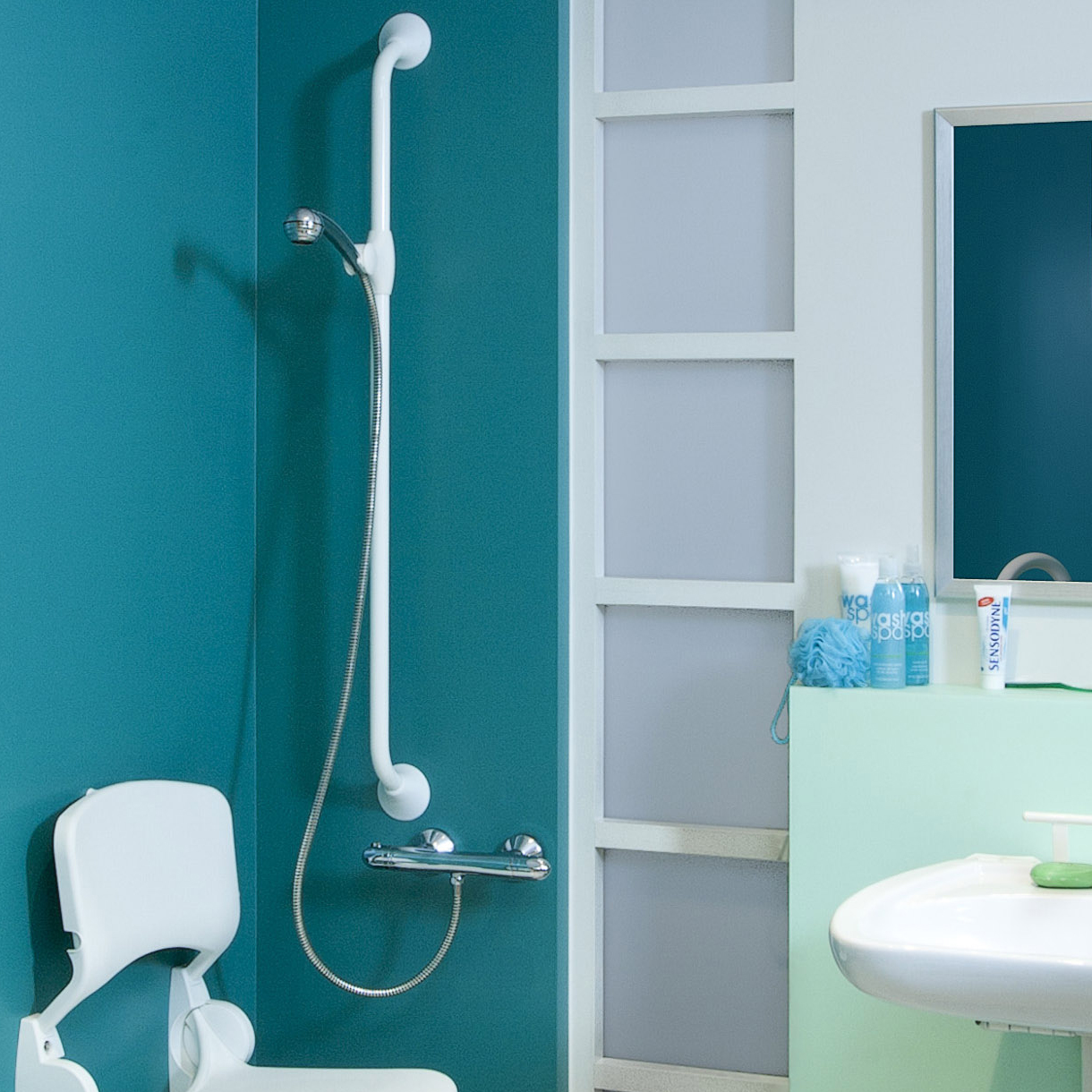

LI2611.0901-02 en LI2630.2006-02 omgeving.jpg

Ergogrip straight grab rails

For a firm, ergonomic grip and secure support in many locations

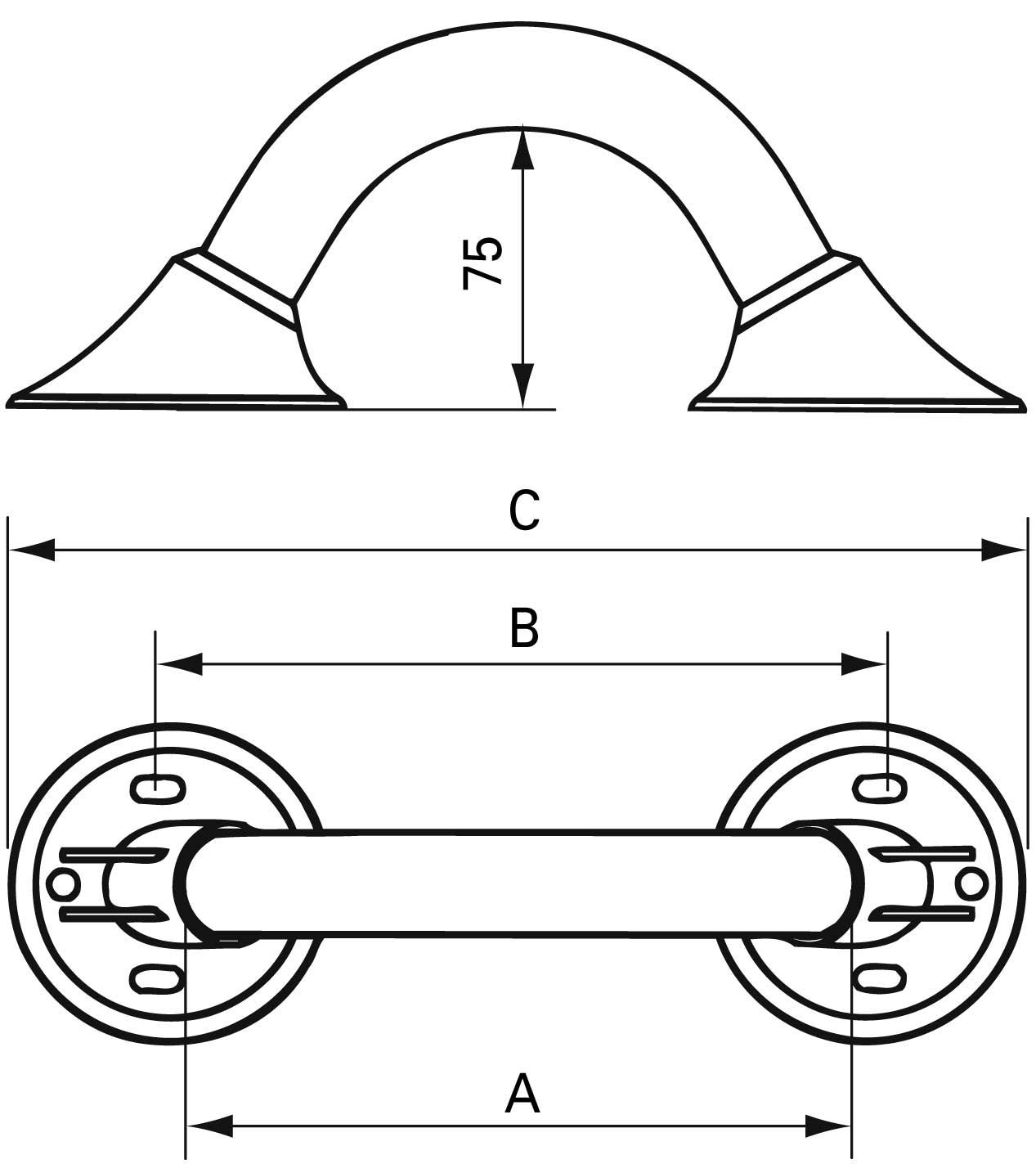

Model specification

Art. no.	LI2611.020x-xx	LI2611.030x-xx	LI2611.040x-xx	LI2611.050x-xx	LI2611.060x-xx	LI2611.070x-xx	LI2611.080x-xx	LI2611.090x-xx	LI2611.100x-xx	LI2611.120x-xx	LI2611.140x-xx
Name	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails	Ergogrip straight grab rails
Description	Straight grab rail, grip length 180 mm	Straight grab rail, grip length 300 mm	Straight grab rail, grip length 400 mm	Straight grab rail, grip length 500 mm	Straight grab rail, grip length 600 mm	Straight grab rail, grip length 700 mm	Straight grab rail, grip length 800 mm	Straight grab rail, grip length 900 mm	Straight grab rail, grip length 1000 mm	Straight grab rail, grip length 1200 mm	Straight grab rail, grip length 1400 mm
Total length	275 mm	405 mm	505 mm	605 mm	705 mm	805 mm	905 mm	1005 mm	1105 mm	1305 mm	1505 mm
Tube diameter	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm
Distance tube-wall	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Number of flanges	2	2	2	2	2	2	2	2	2	2	2
Max. user weight	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg

Documents

Document name	Type	Size
User manual Ergogrip grab rails, 3 flanges (multilingual)		2 MB
User manual Ergogrip grab rails, 2 flanges (multilingual)		1 MB
Technical data sheet EN		763 KB
