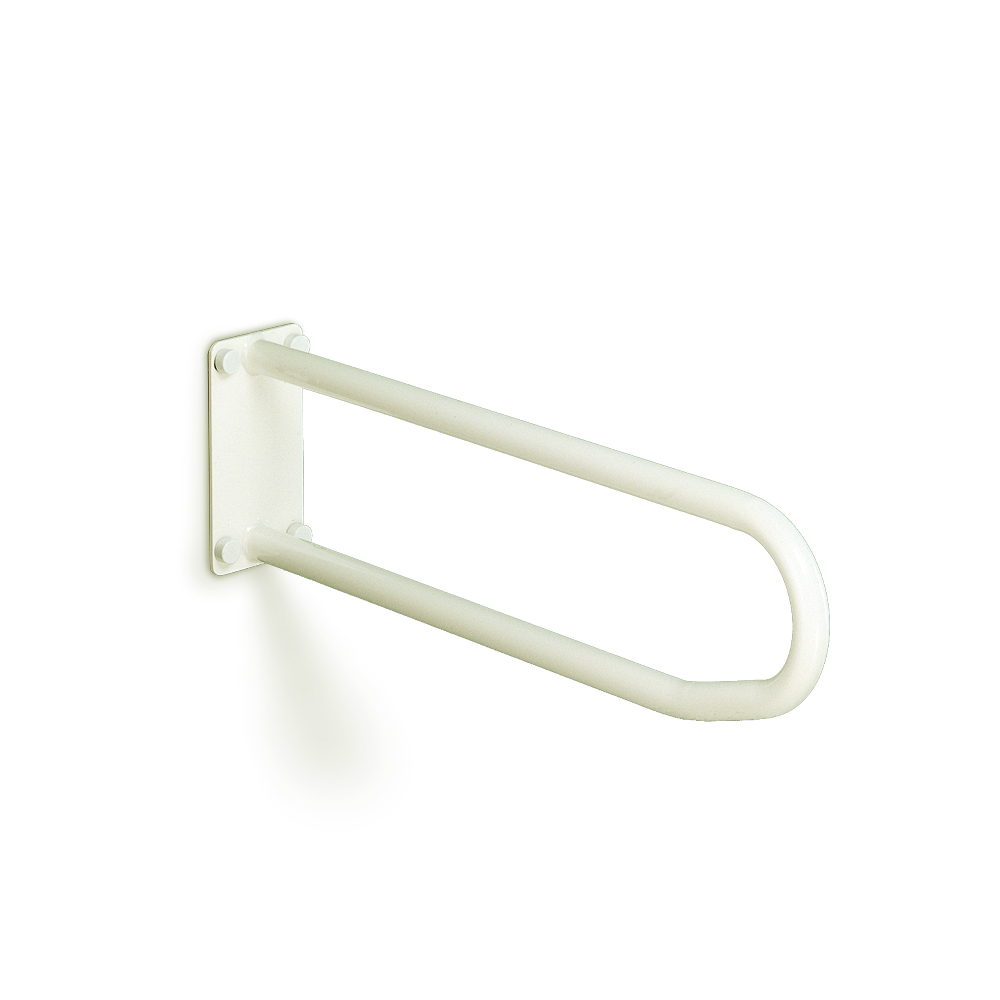

Handicare Fixed Armsupport2601 050 090 Fixed arm supports Reliable, fixed support beside the toilet or in the shower

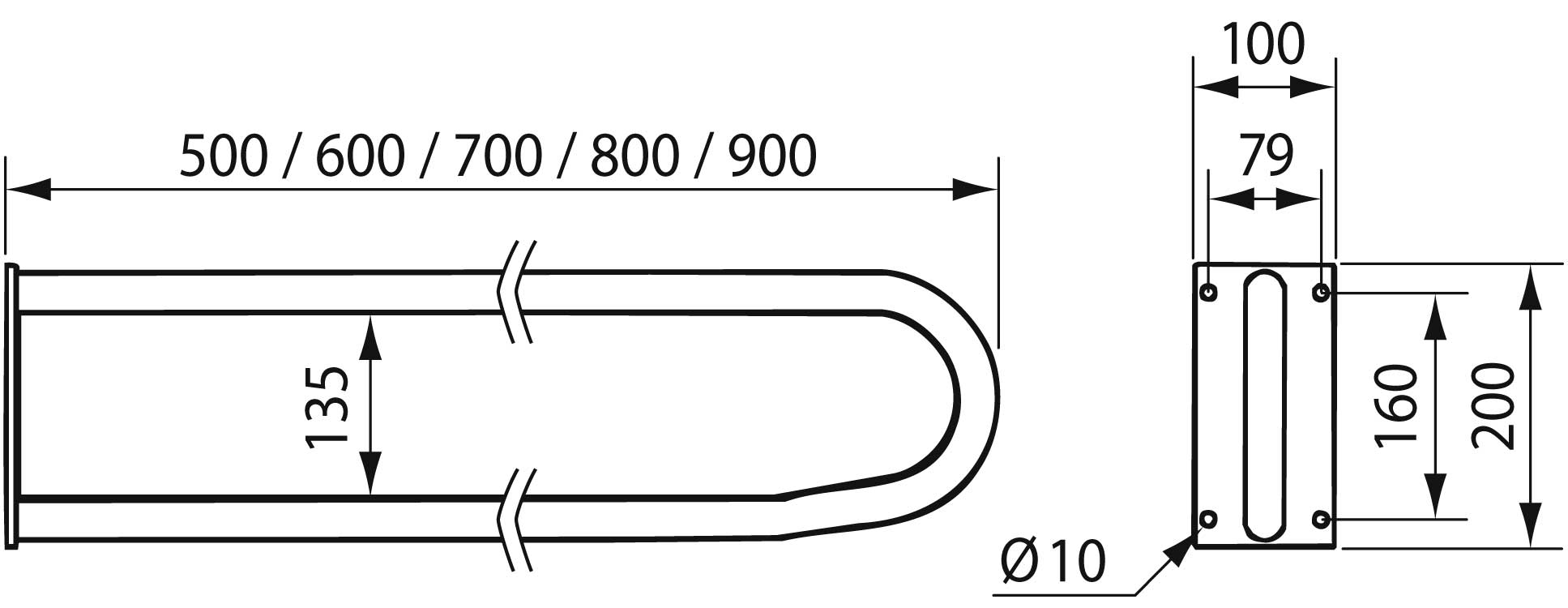

Model specification Documents Model specification Art. no.LI2601.050x-xxLI2601.060x-xxLI2601.070x-xxLI2601.080x-xxLI2601.090x-xxNameFixed arm supportsFixed arm supportsFixed arm supportsFixed arm supportsFixed arm supportsDescriptionFixed arm support, total length 500 mm, incl. Insulation set M8 x 4Fixed arm support, total length 600 mm, incl. Insulation set M8 x 4Fixed arm support, total length 700 mm, incl. Insulation set M8 x 4Fixed arm support, total length 800 mm, incl. Insulation set M8 x 4Fixed arm support, total length 900 mm, incl. Insulation set M8 x 4Total length500 mm600 mm700 mm800 mm900 mmTube diameter28-28.6 mm28-28.6 mm28-28.6 mm28-28.6 mm28-28.6 mmWall plate height200 mm200 mm200 mm200 mm200 mmWall plate width100 mm100 mm100 mm100 mm100 mmMax. user weight150 kg150 kg150 kg150 kg150 kgMax. sideways load100 kg100 kg100 kg100 kg100 kg Documents Document name Type Size Technical Drawings Fixed Arm Supports EN 147 KB User manual Fixed Arm supports (multilingual) 688 KB Handicare Bevestigingsadviezen Linidosolutions 22 KB Handicare Montageadvies Linidosolutions 85 KB Technical mounting advice EN INT 96 KB Ergonomic mounting advice EN INT 127 KB Care instructions EN INT 110 KB Product catalogue LinidoSolutions EN INT 11 MB
