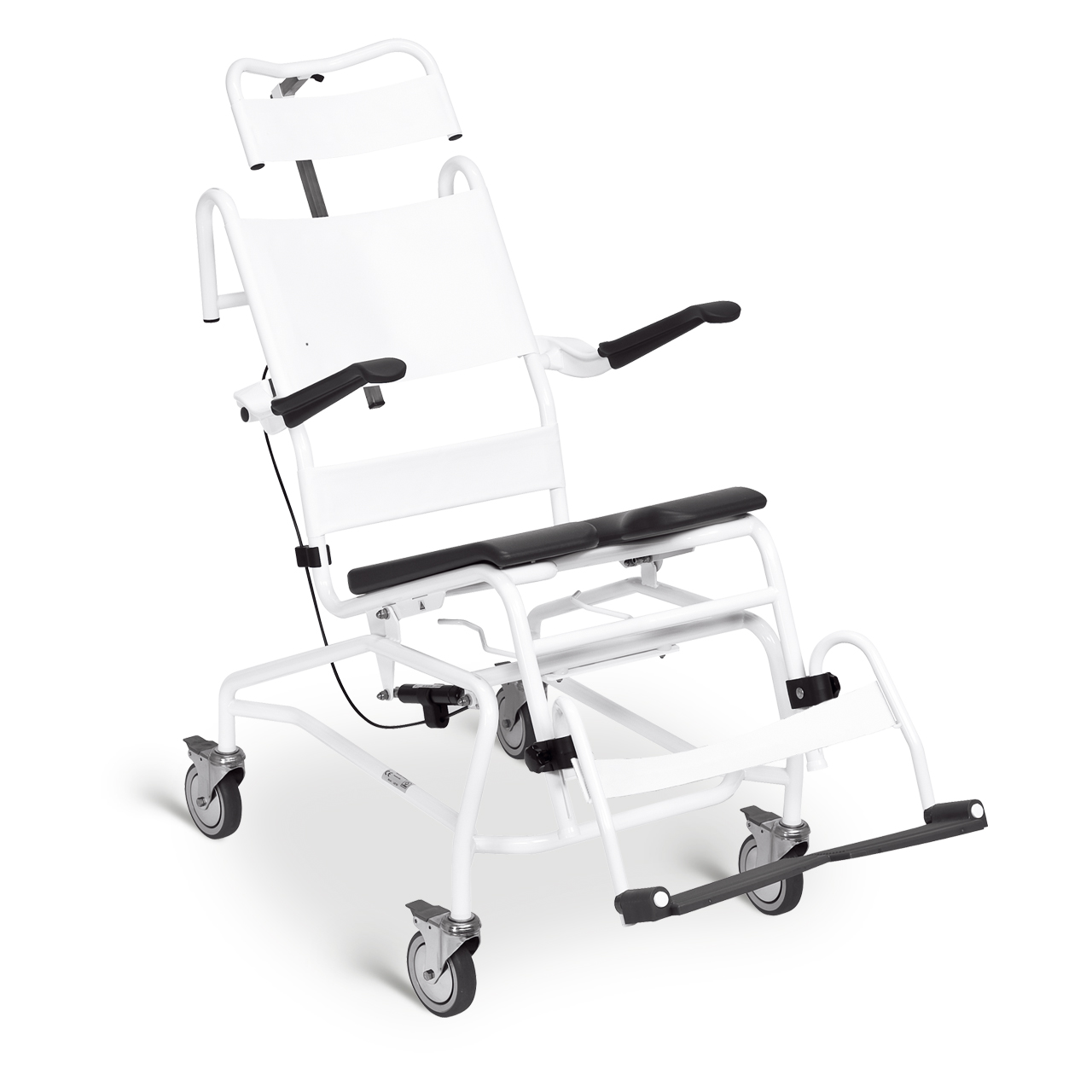

Tilting commode/shower chair

A reliable reclining chair for showering and toileting

Model specification

Art. no.	LI2150.0212-00	LI2150.0214-02
Name	Tilting commode/shower chair	Tilting commode/shower chair
Description	Polished stainless steel, complete with lumbar support, calf support and toilet rails for bedpans with a diameter of 300-315 mm	Coated stainless steel, white, complete with lumbar support, calf support and toilet rails for bedpans with a diameter of 300-315 mm
Total width	625 mm	625 mm
Total height	1140 mm	1140 mm
Backrest width	450 mm	450 mm
Armrests length	410 mm	410 mm
Armrests width	60 mm	60 mm
Armrests height	250 mm	250 mm
Unit	1	1
Total depth	685 mm	685 mm
Seat height	575 mm	575 mm
Seat depth	450 mm	450 mm
Max user weight	150 kg	150 kg
Seat width	450 mm	450 mm

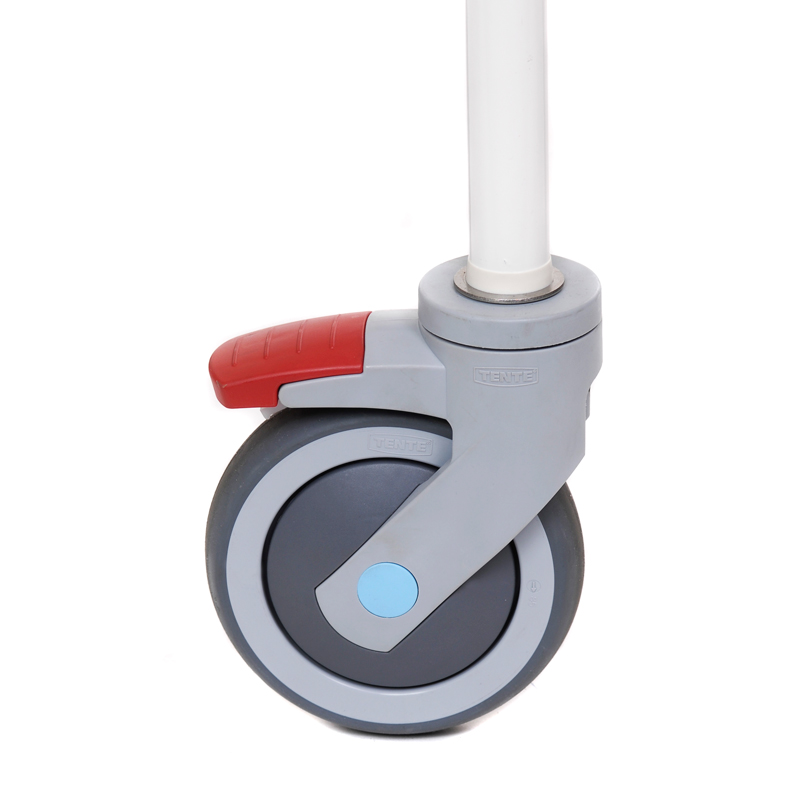

Castors diameter (Ø)	125 mm	125 mm
Max. load on armrest	75 kg	75 kg
Material, frame	Stainless steel	Stainless steel
Material, backrest	Textile; woven polyester with plastic coating	Textile; woven polyester with plastic coating
Material, seat	Polyurethane (PUR)	Polyurethane (PUR)

Documents

Document name	Type	Size
User manual Tilting commode/shower chair (multilingual)		613 KB
Technical Drawing Tilting commode/shower chair EN		100 KB
