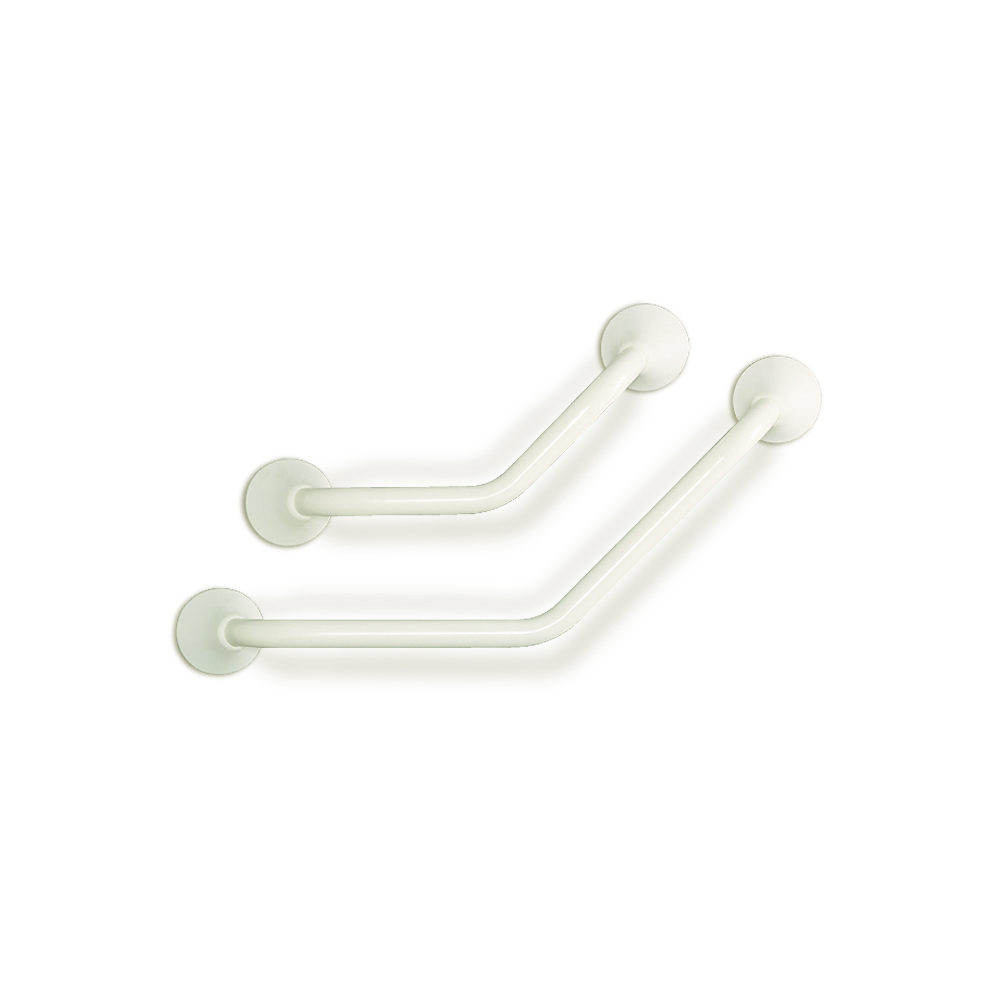

Handicare Ergogrip Angled 1

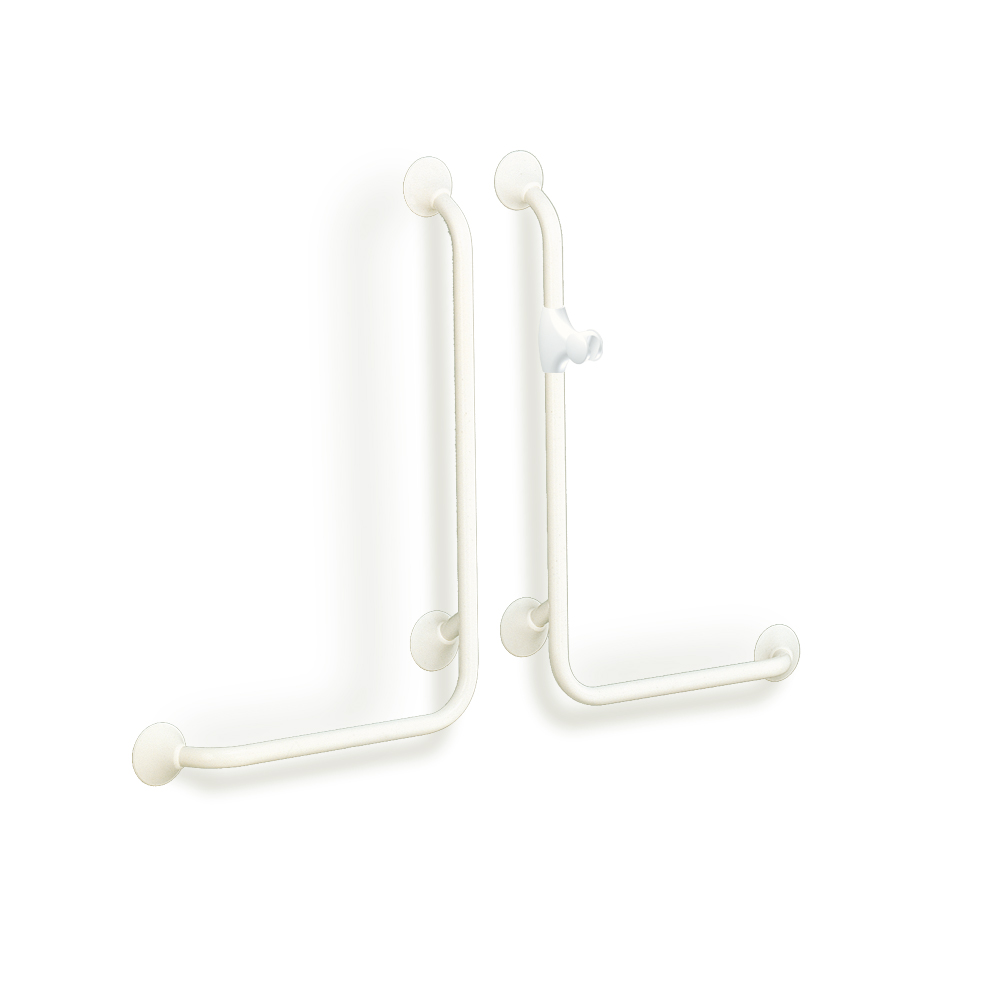

Handicare Ergogrip Angled 2

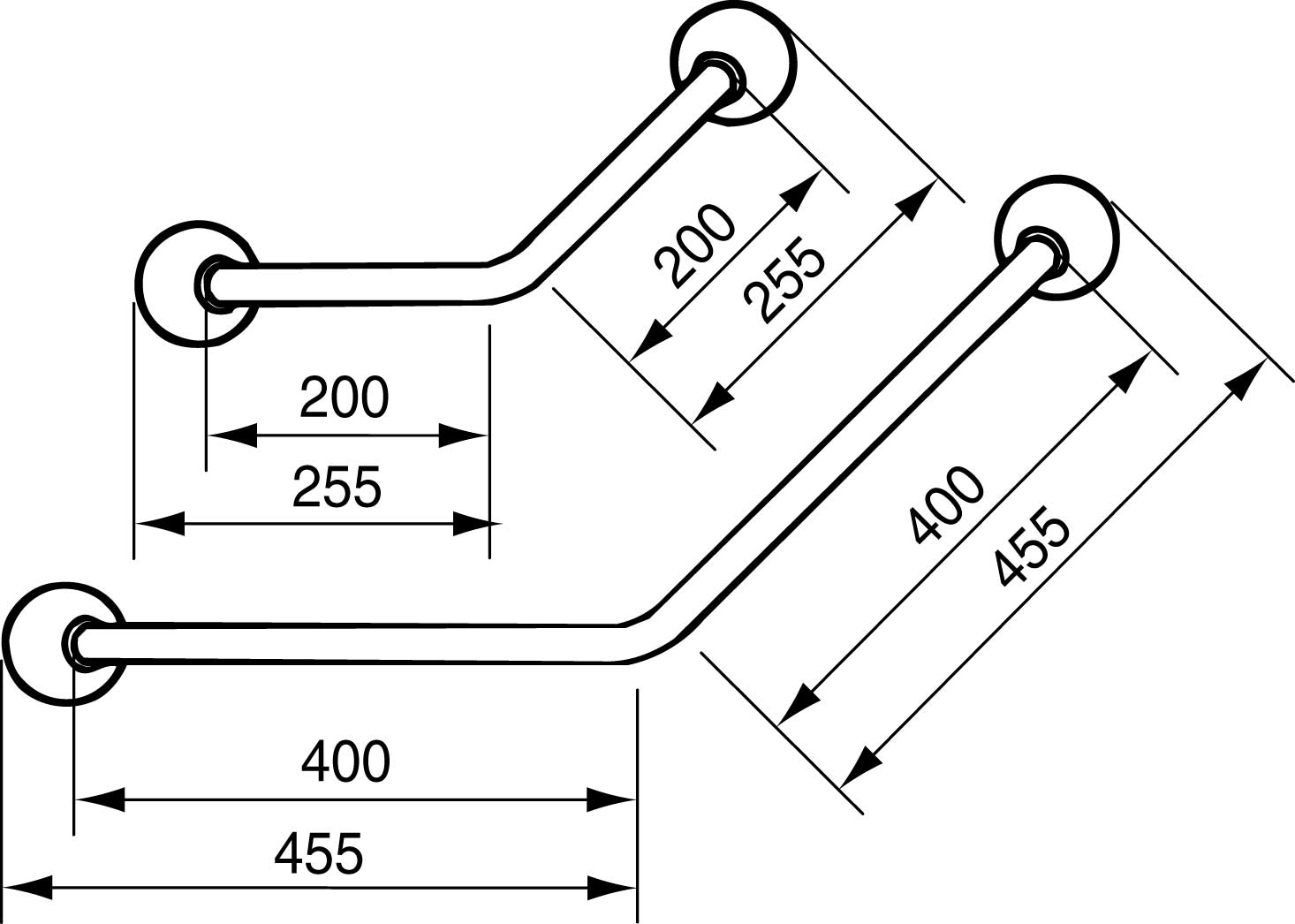

2611 007 008

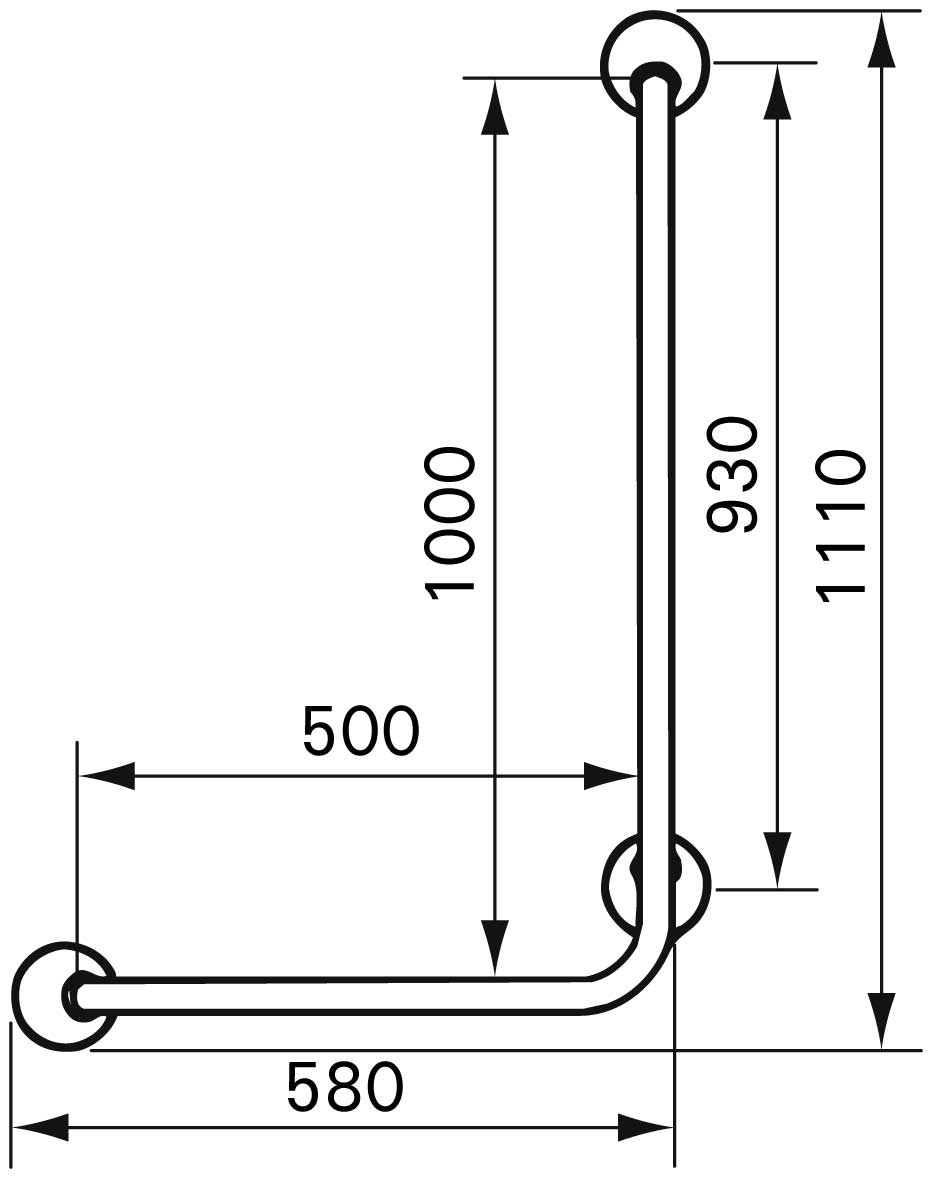

2611 003

Ergogrip 90° grab rails

90° angled grab rails for optimum support next to the toilet or bath and in the shower

Model specification

Art. no.	LI2611.003x-xx	LI2611.004x-xx	LI2611.007x-xx	LI2611.008x-xx	LI2611.023x-xx	LI2611.024x-xx
Name	Ergogrip angled grab rails	Ergogrip angled grab rails	Ergogrip angled grab rails	Ergogrip angled grab rails	Ergogrip angled grab rails	Ergogrip angled grab rails
Description	Left angled grab rail, 90°, grip length 500 x 1000 mm	Right angled grab rail, 90°, grip length 500 x 1000 mm	Angled grab rail, 45°, grip length 200 x 200 mm	Angled grab rail, 45°, grip length 400 x 400 mm	Left angled grab rail, 90°, grip length 560 x 1130 mm	Right angled grab rail, 90°, grip length 560 x 1130 mm
Total length	580x1100 mm	580x1100 mm	255x255 mm	455x455 mm	675x1243 mm	675x1243 mm
Tube diameter	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm	28-28.6 mm
Distance tube-wall	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm
Number of flanges	3	3	2	2	3	3
Max. user weight	150 kg	150 kg	150 kg	150 kg	150 kg	150 kg

Documents

Document name	Type	Size
User manual Ergogrip grab rails, 3 flanges (multilingual) (1)		2 MB
User manual Ergogrip grab rails, 2 flanges (multilingual)		1 MB
Technical data sheet EN		763 KB
Technical Drawings Ergogrip Angled Grab Rails
Technical mounting advice EN INT		96 KB
Ergonomic mounting advice EN INT		127 KB
Care instructions EN INT		110 KB
Product catalogue LinidoSolutions EN INT		11 MB
