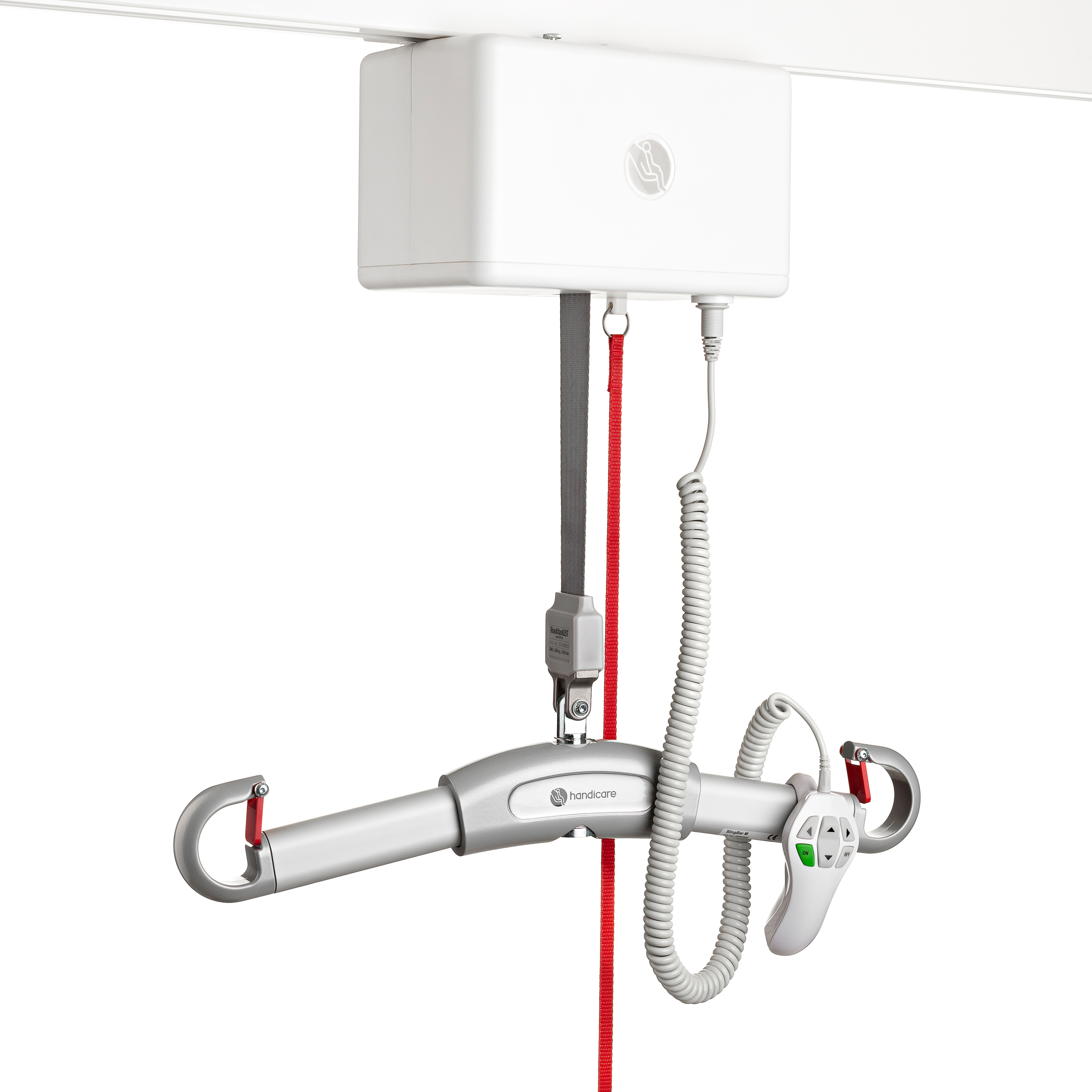

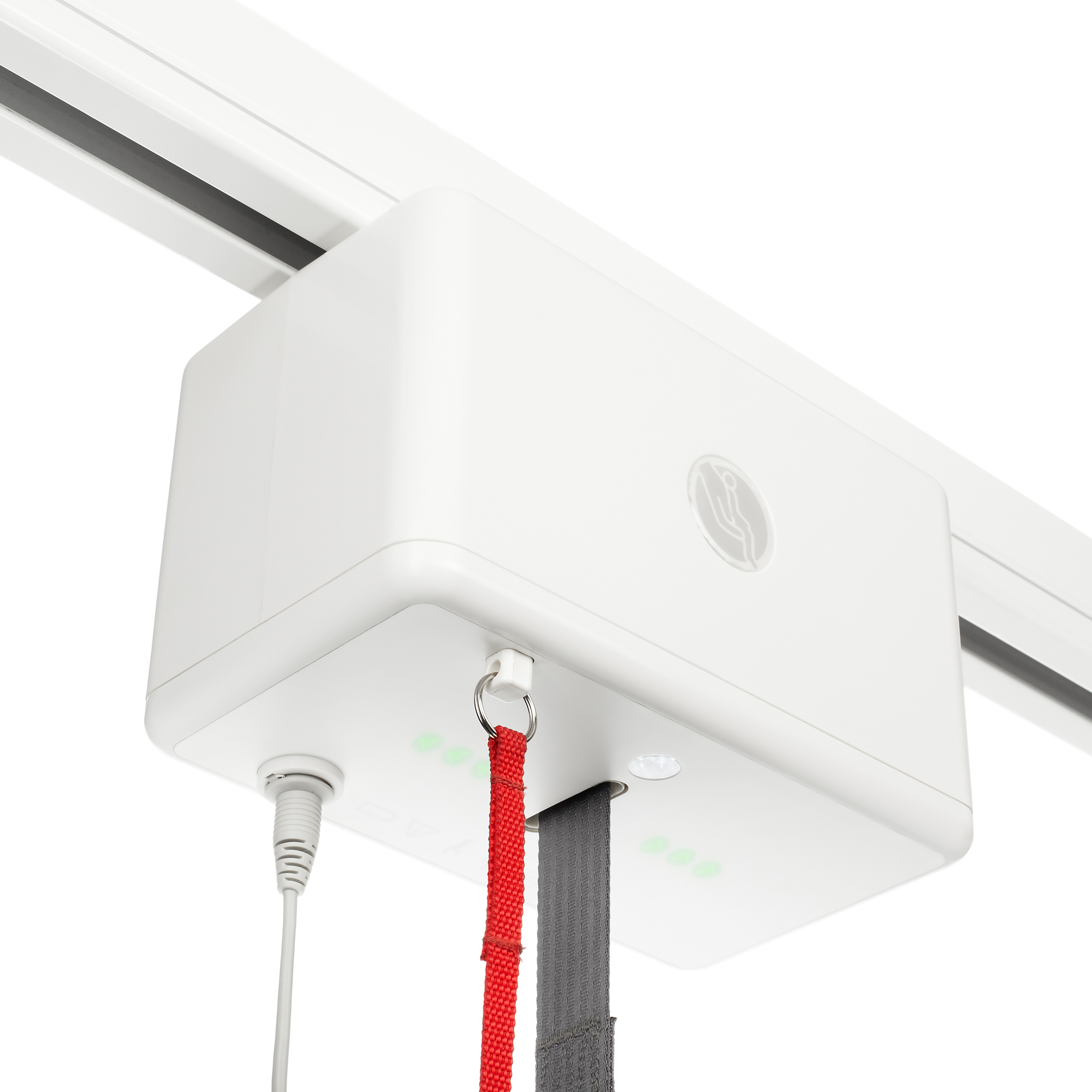

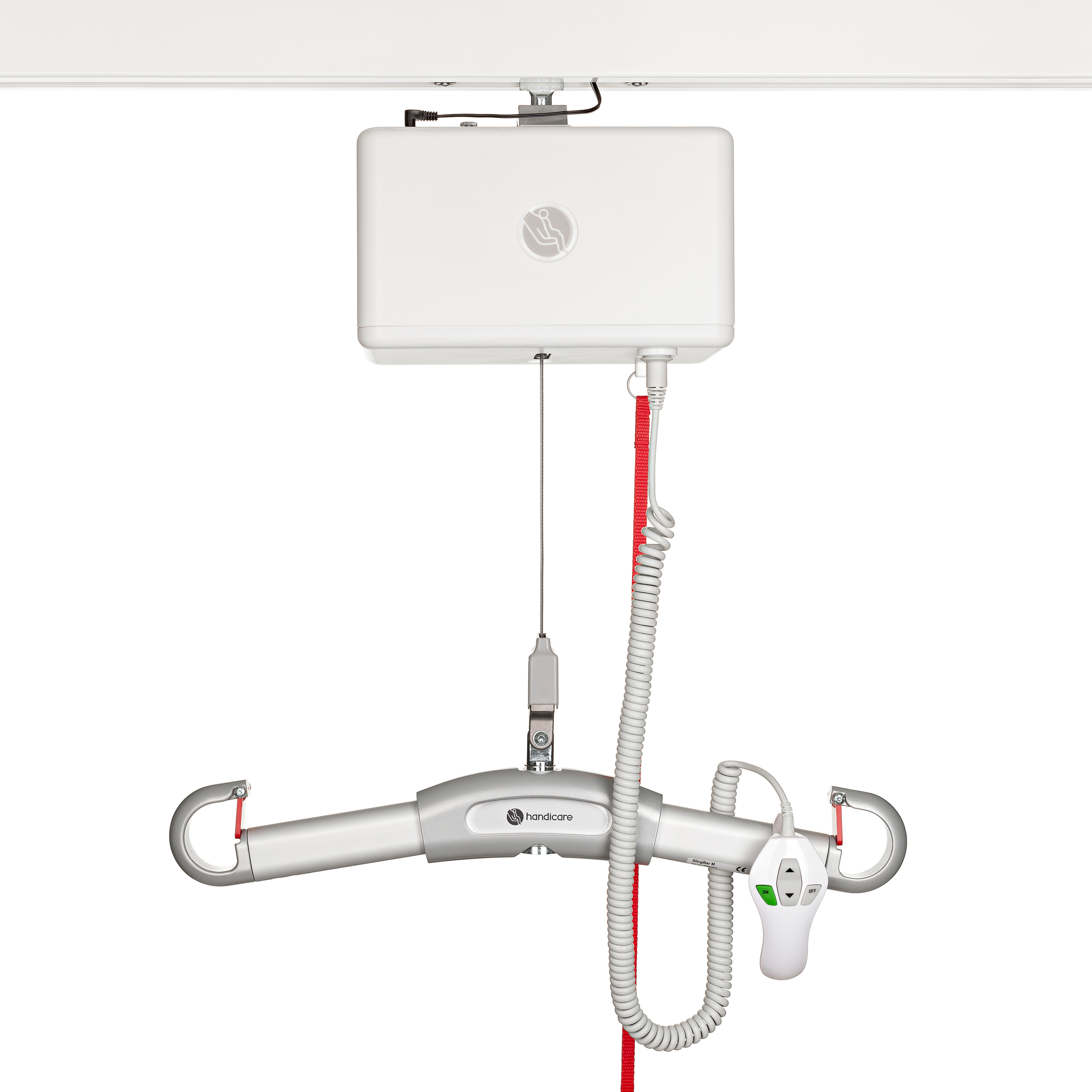

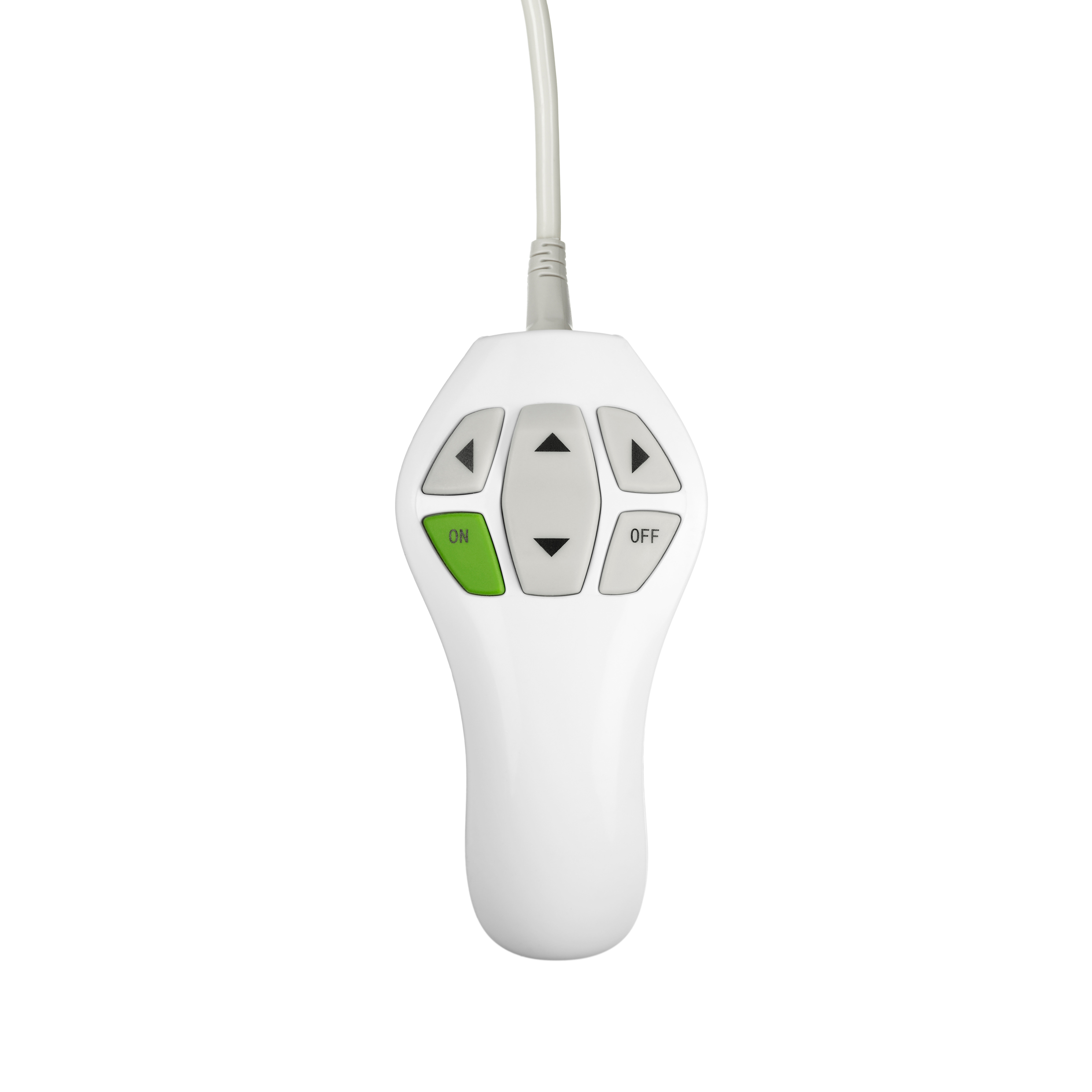

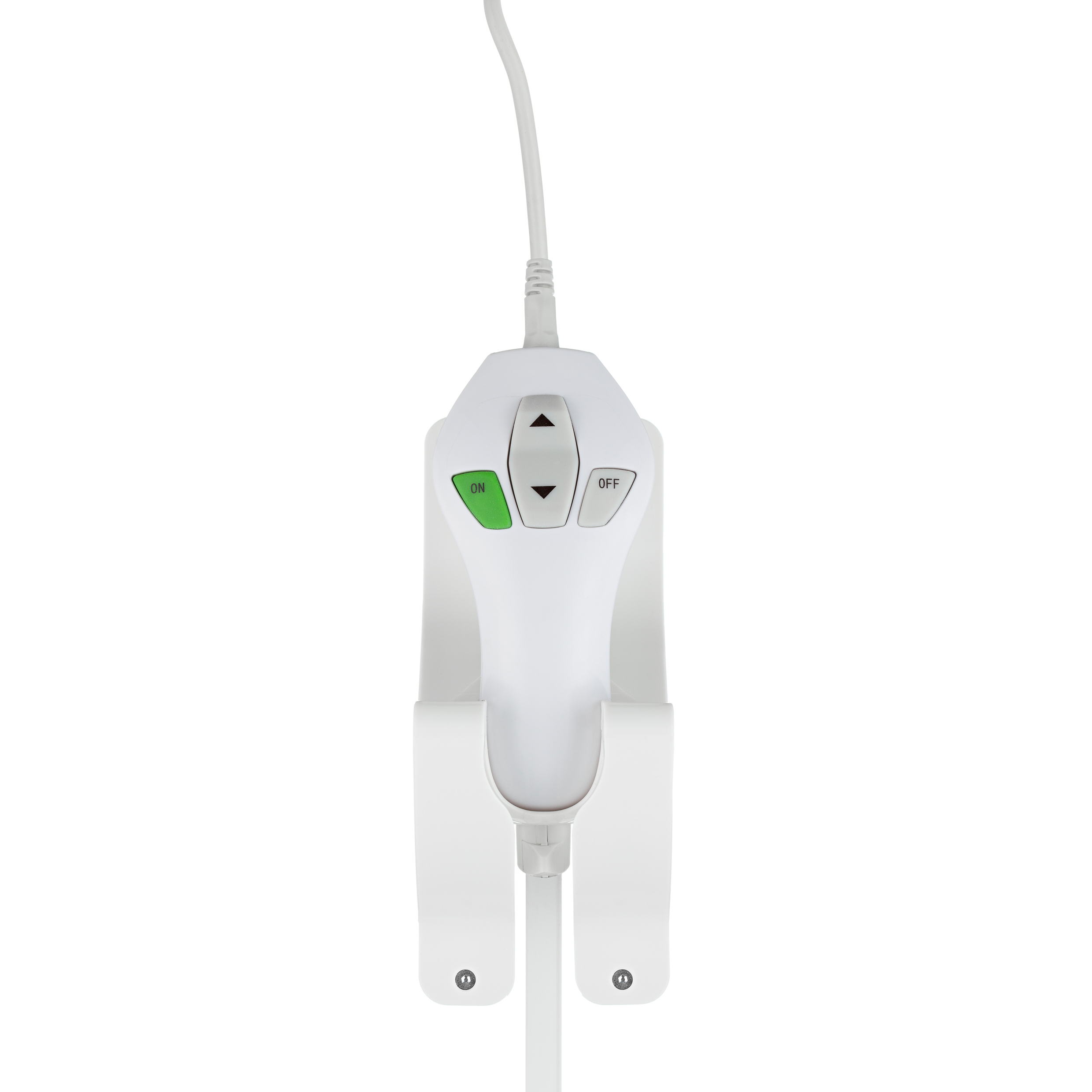

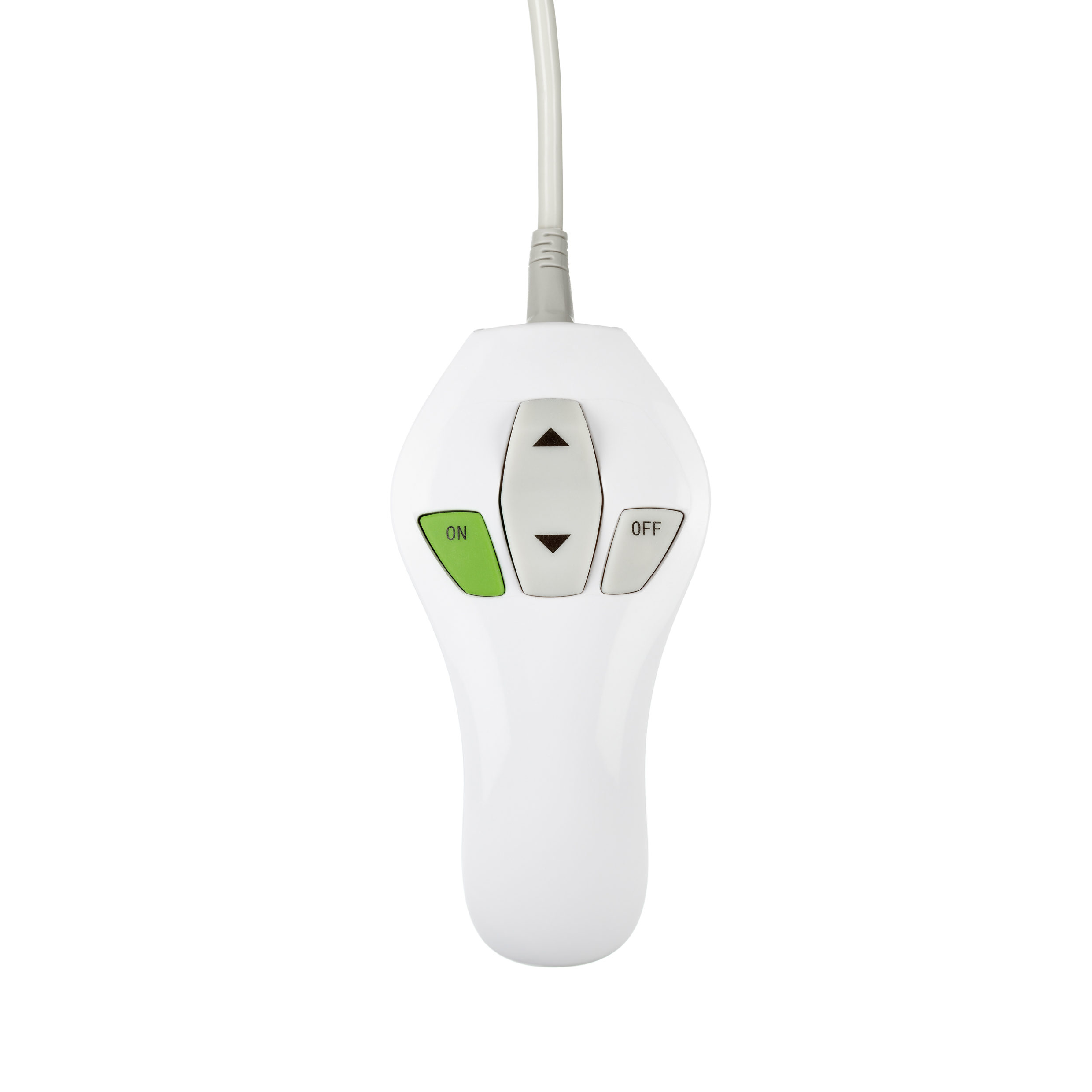

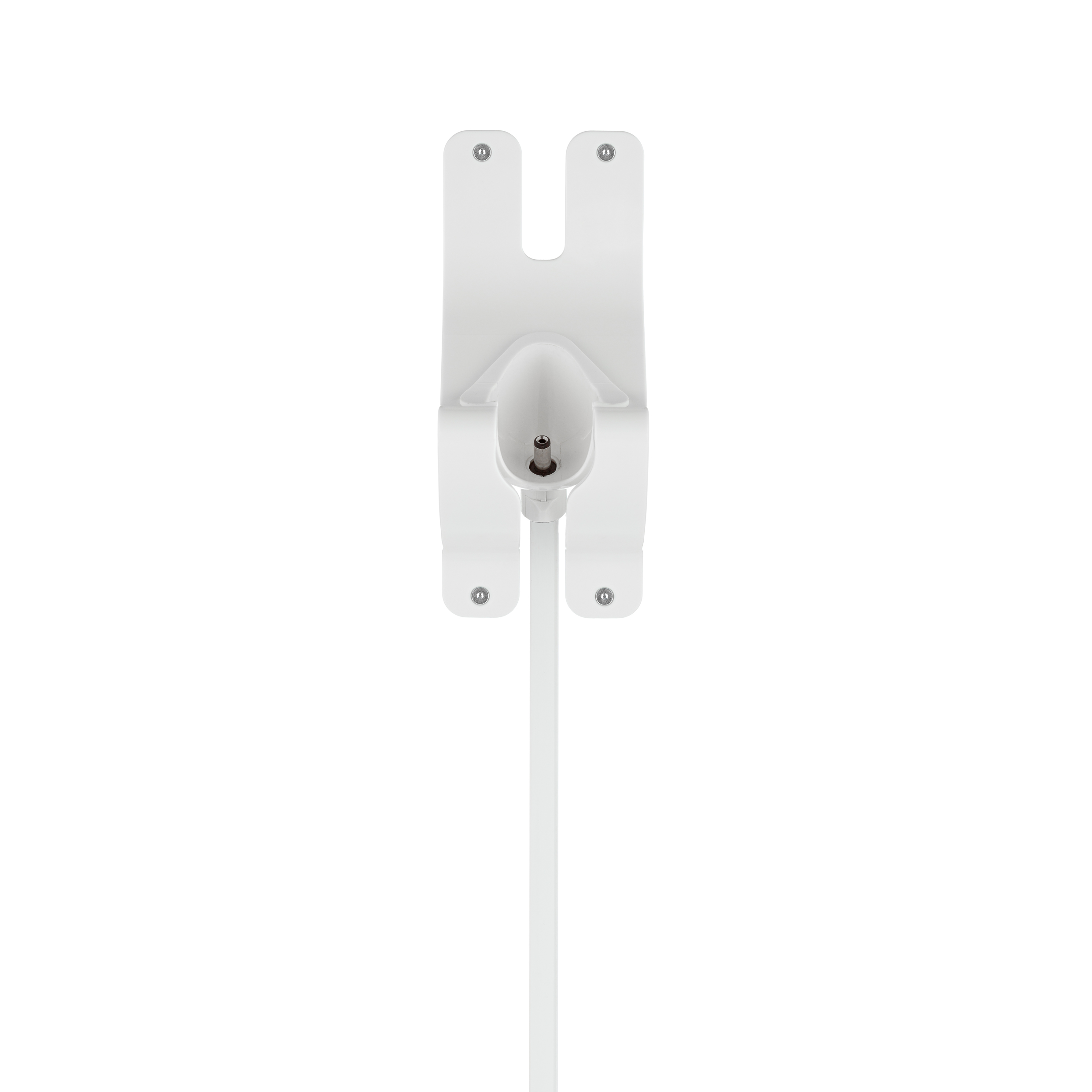

RiseAtlas625RiseAtlas625RiseAtlas625RiseAtlas625RiseAtlas625RiseAtlas625Hand control 4Hand control 6Handcontrol StationHandcontrol Station 4Handcontrol Station 6 Videos All videos RiseAtlas 625 Unlimited lifting solutions - for users weighing up to 285 kg/625 lbs
Application areas Model specification Documents Application areas From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Turning In Bed From Bed To Commode Up From The Floor Model specification Art. no.5010005950100060NameRiseAtlas625RiseAtlas625DescriptionWith QuickTrolleySystem. With hand control and charger. Sling bar is ordered separately.With hand control and charger. Sling bar is ordered separately.Total length266 mm266 mmTotal width151 mm151 mmTotal height156 mm156 mmTotal weight7.3 kg7.5 kgLifting range2400 mm2400 mmLifting speed without load50 mm/s50 mm/sLifting speed with load39 mm/s39 mm/sSound level with load55 db(A)55 db(A)BatteryNiMH 24V 3.2 Ah/768Wh NiMH 24V 3.2 Ah/768Wh Protection class, lift unitIP20 IP20 Protection class, hand controlIPX4 IPX4 Safe working load285 kg285 kgUnit1 1 Transfer speed without load140 mm/sTransfer speed with load120 mm/sMaterial, chassisAluminiumAluminiumMaterial, coverNon flammable ABS plasticNon flammable ABS plasticEmergency loweringElectrical and manualElectrical and manualEmergency stopManualManualHand controlElectrical, 4 buttonsElectrical, 6 buttonsHand control chargingStandardStandardIn-rail chargingOptional, accessoryOptional, accessoryEnd point chargingOptional, accessoryOptional, accessoryEfficient strap controlStandardStandardTransfer in railManualTransfer motor Documents Document name Type Size User manual RiseAtlas450T & 625T SmartPark EN INT 2 MB Care instructions (multilingual) 2 MB User manual RiseAtlas450T & 625T Multilingual 9 MB Safety information (multilingual) 2 MB User manual RiseAtlas625M QuickTrolley Multilingual 20 MB Product brochure RiseAtlas US 320 KB Technical data sheet RiseAtlas625M QT US 152 KB Technical data sheet RiseAtlas625T US 139 KB Technical data sheet RiseAtlas625T SP US 140 KB Technical information and accessories - overview (multilingual) 687 KB
