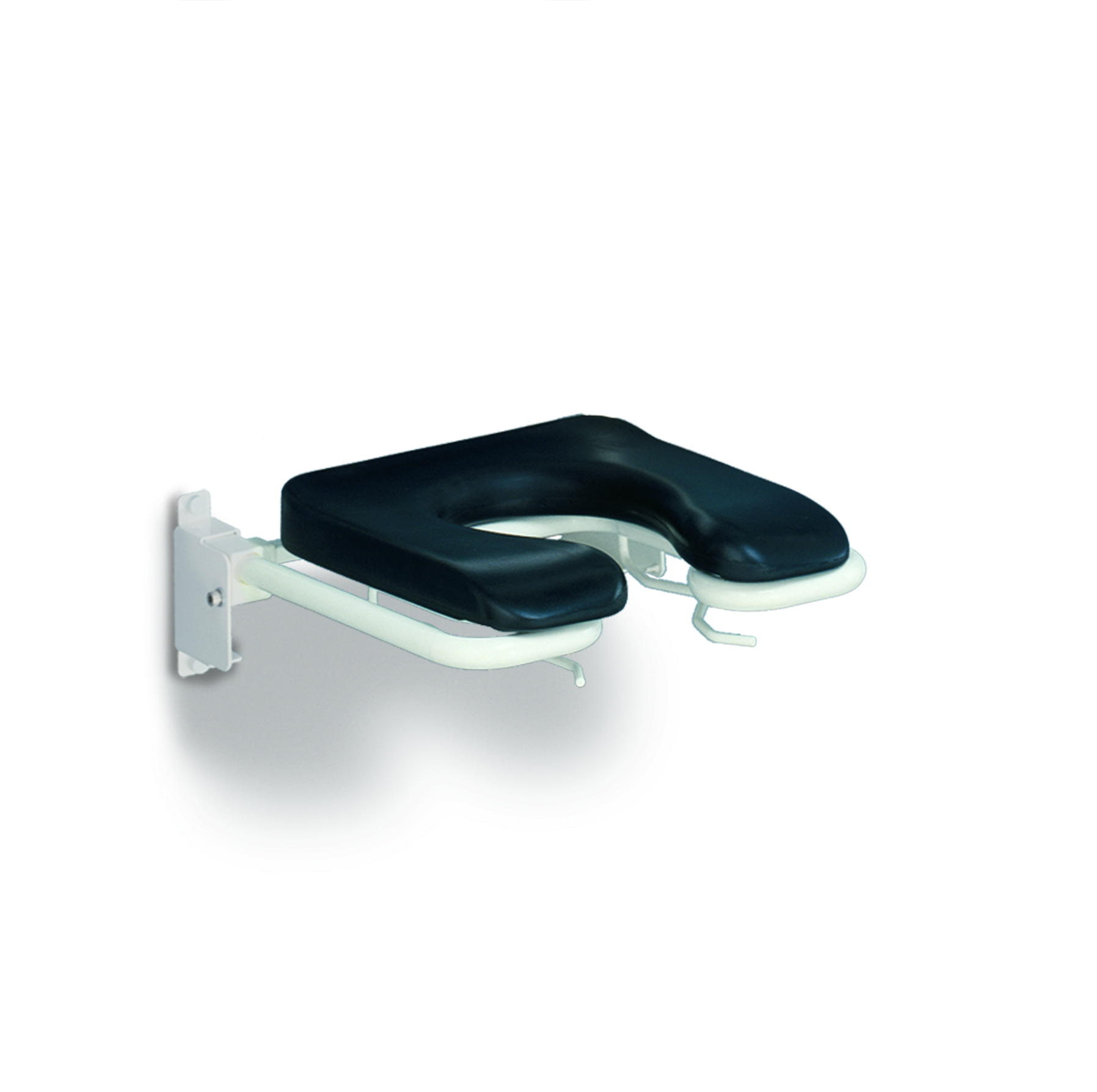

Handicare Soft Shower Seats

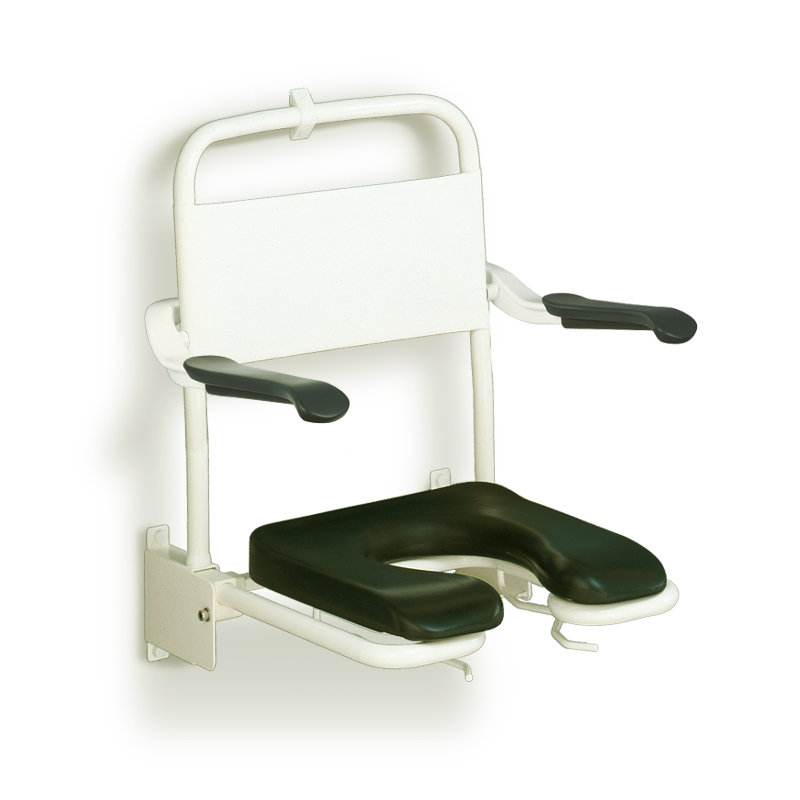

Handicare Soft Shower Seat 2

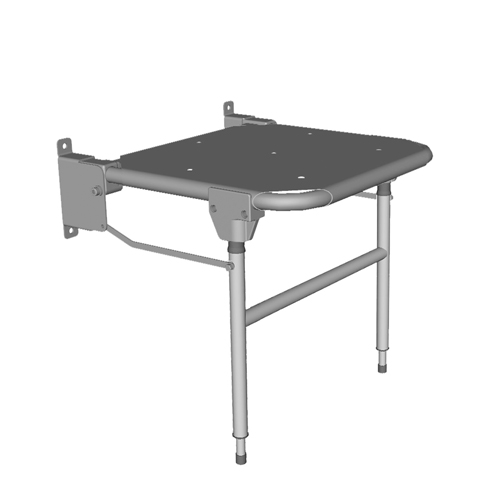

Handicare Floor Support

2223 021

Soft shower seats

Soft and comfortable toilet seat with open front

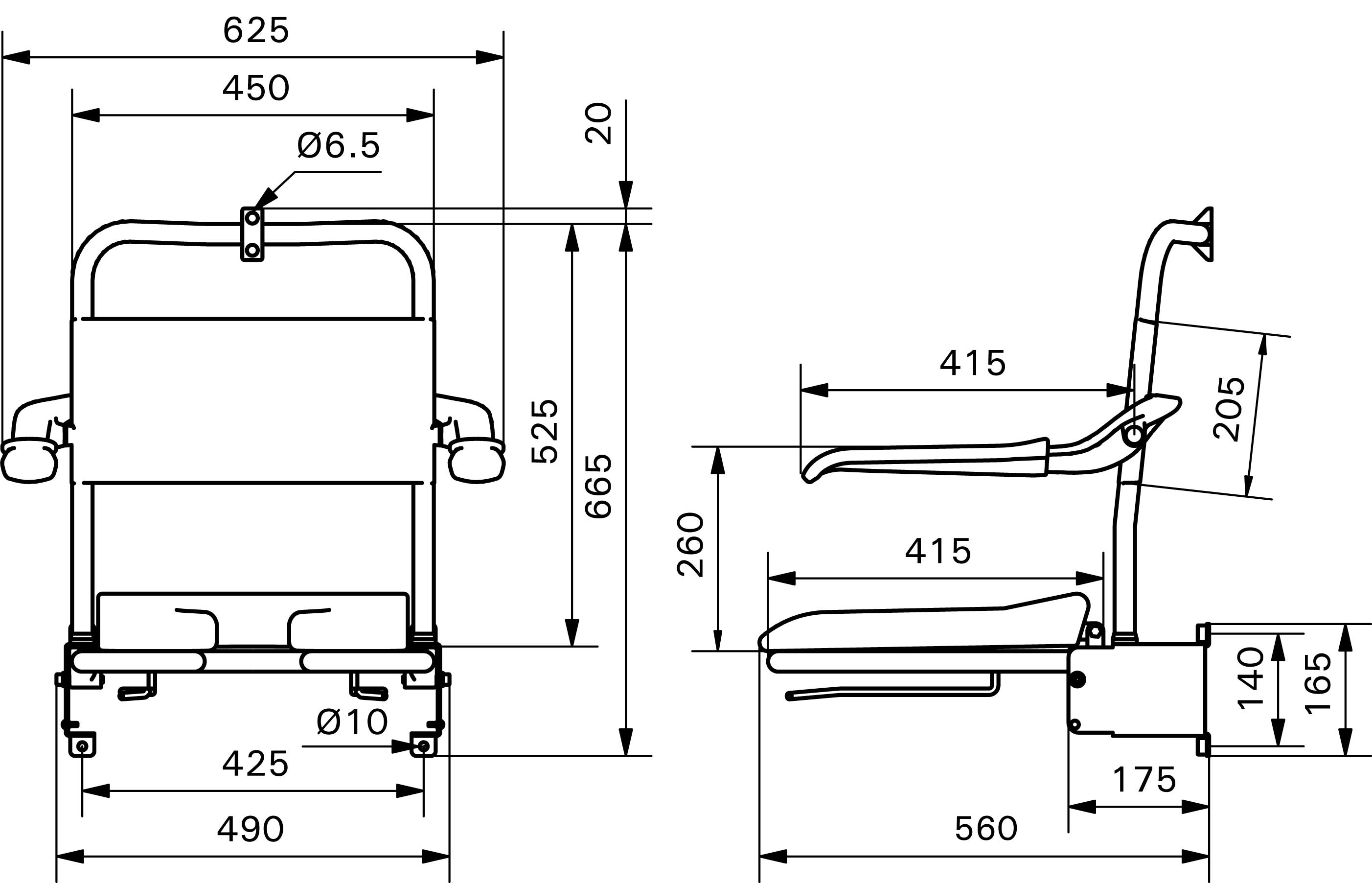

Model specification
Art. no.LI2221.021LI2223.021
NameSoft shower seatsSoft shower seats
DescriptionShower seat with soft toilet seat, incl. drill jig and Insulation set M8 x 4. With arm- & backrest.Shower seat with soft toilet seat, with backrest and armrests, incl. drill jig and Insulation set M8 x 5. Without arm- and backrest.
Total width490 mm625 mm
Seat width425 mm425 mm
Seat depth415 mm415 mm
Max. user weight150 kg150 kg
Max. load per armrest75 kg75 kg
Total depth487 mm560 mm
Total height665 mm
Backrest height525 mm
Backrest width450 mm
Armrest length415 mm
Documents
Document name Type Size
Technical Drawings Soft Shower Seats EN 306 KB
User manual Soft shower seats (multilingual) 1 MB
Technical mounting advice EN INT 96 KB
Ergonomic mounting advice EN INT 127 KB
Care instructions EN INT 110 KB
Product catalogue LinidoSolutions EN INT 11 MB
