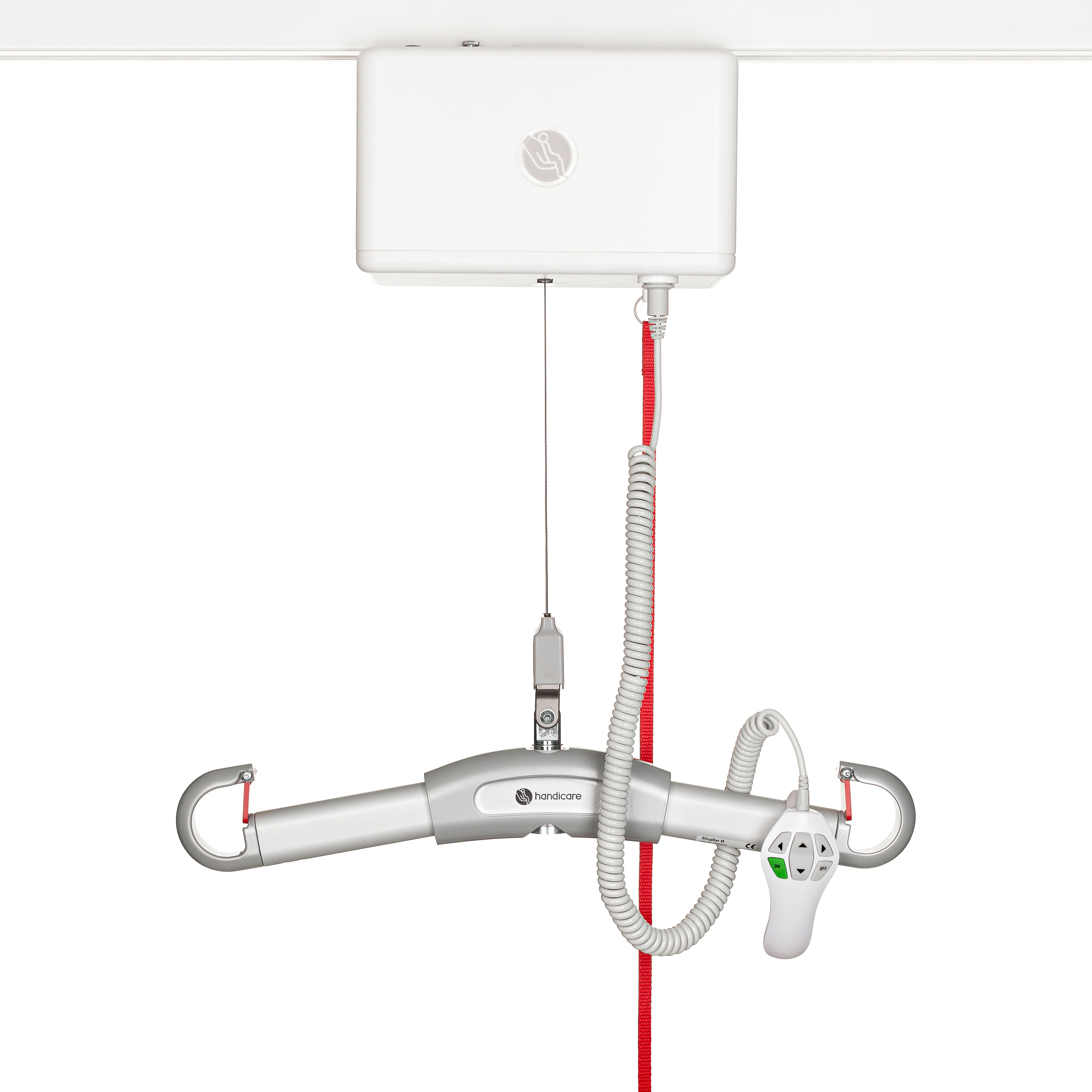

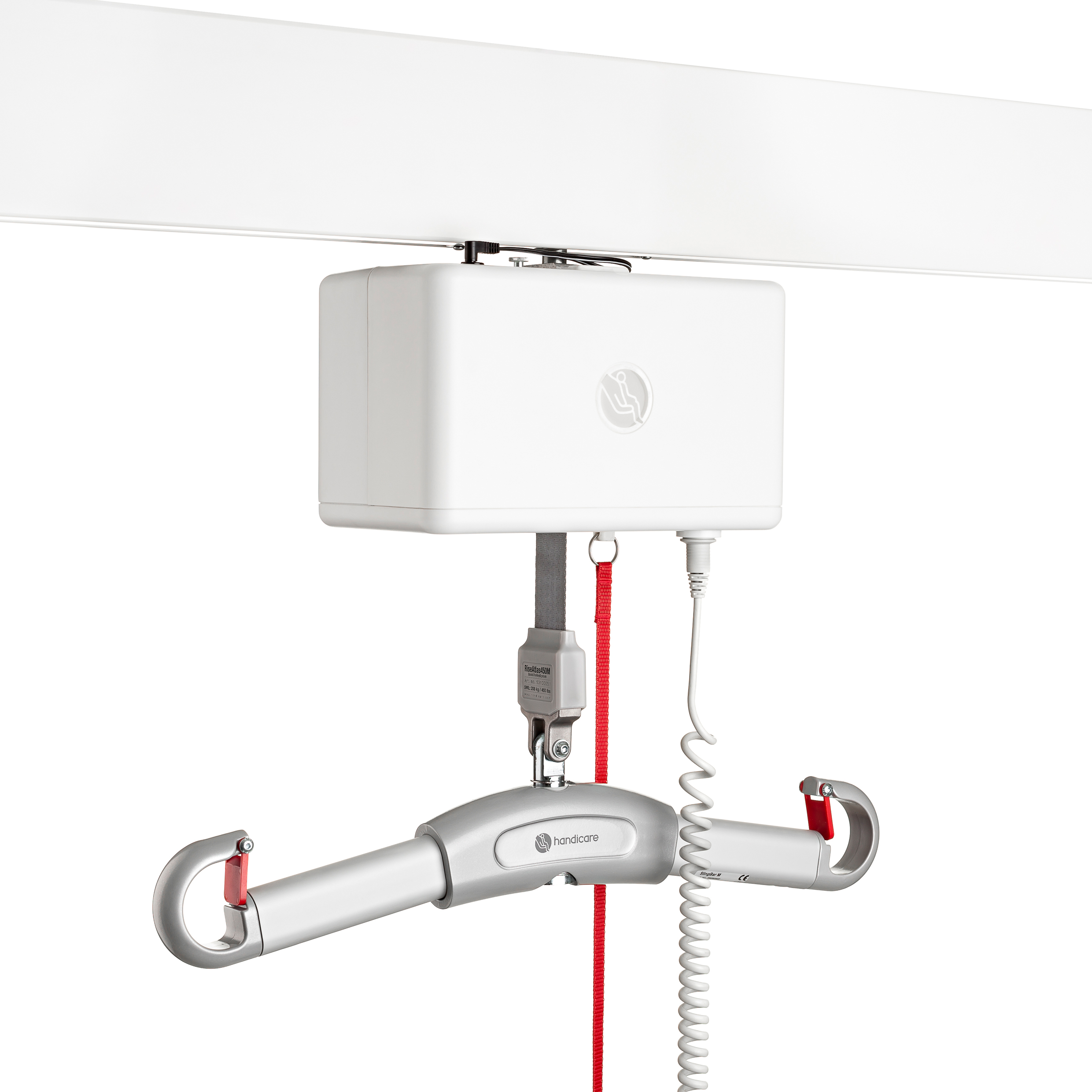

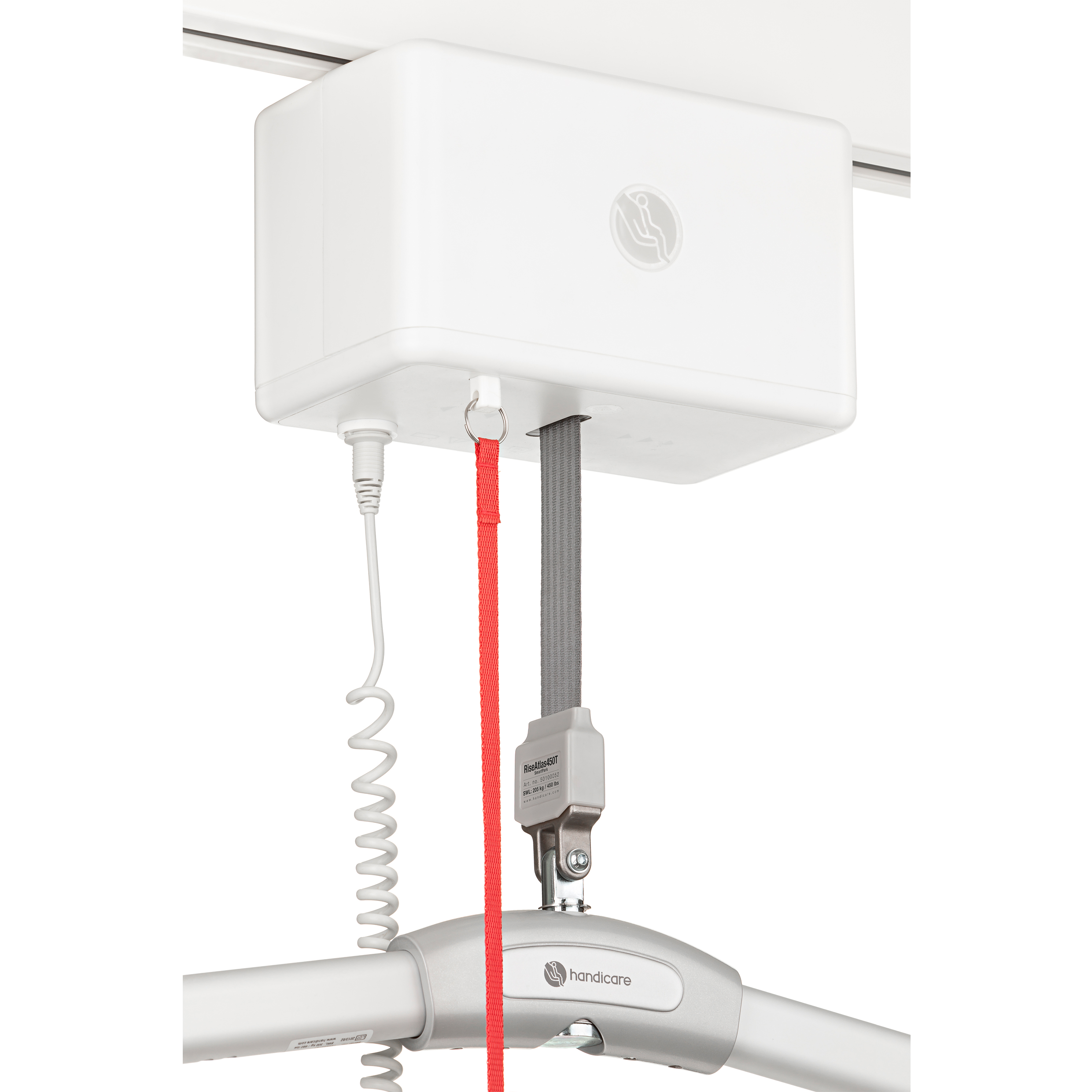

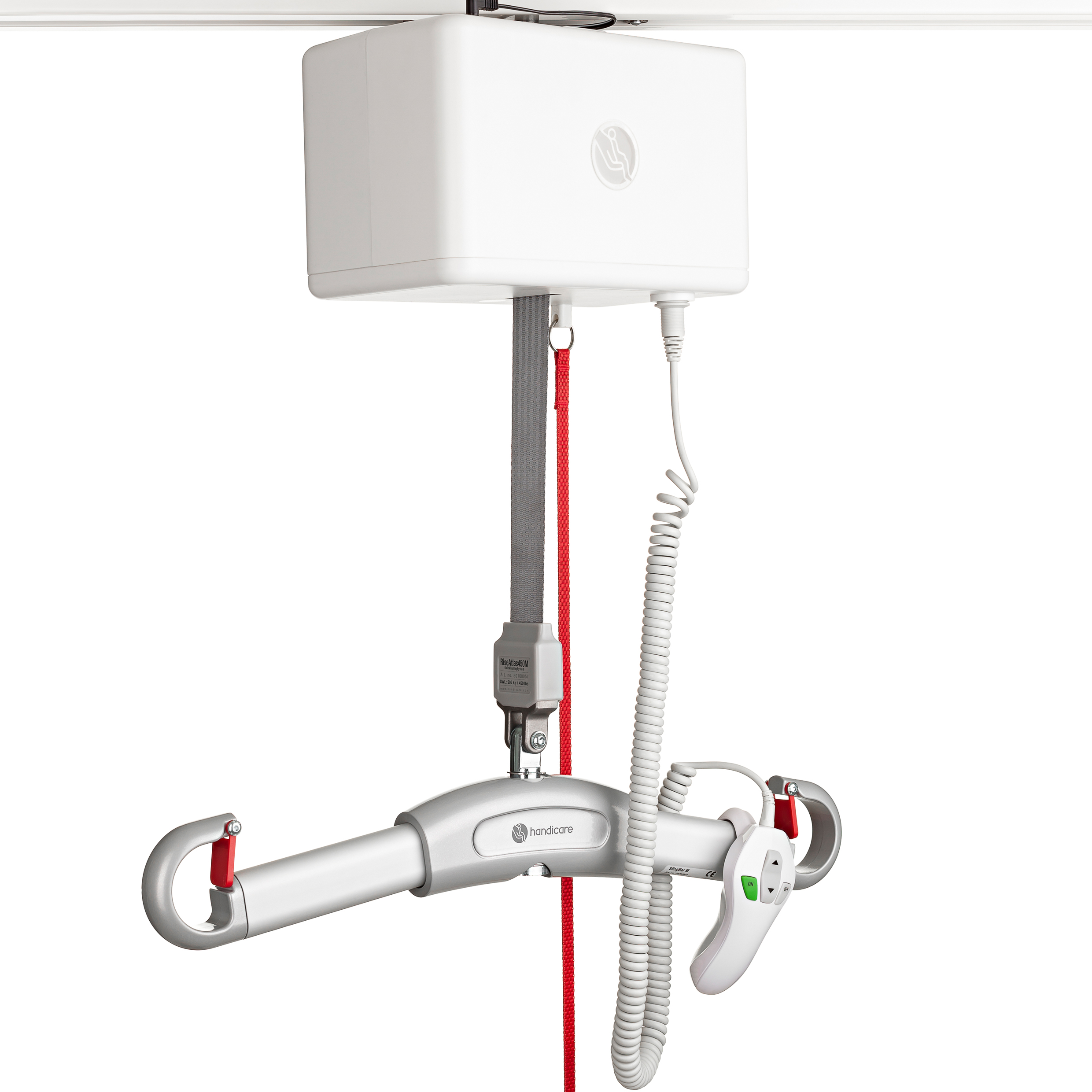

RiseAtlas 450

Unlimited lifting solutions - for users weighing up to 205 kg/450 lbs

Application areas
  • Positioning In Chair
  • Rising To Sitting Down
  • Standing Training
  • Supine Transfer
  • Support For Gait Training
  • Turning In Bed
  • From Bed To Commode
  • Up From The Floor
  • From Bed To Wheelchair
  • From Wheelchair To Toilet
  • Higher Up In Bed
  • Lying To Sitting
Model specification
Art. no.501000515010005750100058
NameRiseAtlas450RiseAtlas450RiseAtlas450
DescriptionWith QuickTrolleySystem, high humidity. With hand control and charger. Sling bar ordered separately.With QuickTrolleySystem. With hand control and charger. Sling bar ordered separately.With hand control and charger. Sling bar ordered separately.
Total length266 mm266 mm266 mm
Total width151 mm151 mm151 mm
Total height156 mm156 mm156 mm
Total weight7.3 kg7.2 kg7.5 kg
Lifting range2400 mm2400 mm2400 mm
Lifting speed without load50 mm/s50 mm/s50 mm/s
Lifting speed with load39 mm/s39 mm/s39 mm/s
Sound level with load55 db(A)55 db(A)55 db(A)
BatteryNiMH 24V 3.2 Ah/768Wh NiMH 24V 3.2 Ah/768Wh NiMH 24V 3.2 Ah/768Wh
Protection class, lift unitIPX4 IP20 IP20
Protection class, hand controlIPX4 IPX4 IPX4
Safe working load205 kg205 kg205 kg
Item No.50100051 50100057 50100058
Unit1 1 1
Transfer speed without load140 mm/s
Transfer speed with load120 mm/s
Material, chassisAluminiumAluminiumAluminium
Material, coverNon flammable ABS plasticNon flammable ABS plasticNon flammable ABS plastic
Emergency loweringElectrical and manualElectrical and manualElectrical and manual
Emergency stopManualManualManual
Hand controlElectrical, 4 buttonsElectrical, 4 buttonsElectrical, 6 buttons
Hand control chargingNoStandardStandard
In-rail chargingOptional, standardOptional, accessoryOptional, accessory
End point chargingOptional, standardOptional, accessoryOptional, accessory
Efficient strap controlStandardStandardStandard
Transfer in railManualManualTransfer motor
