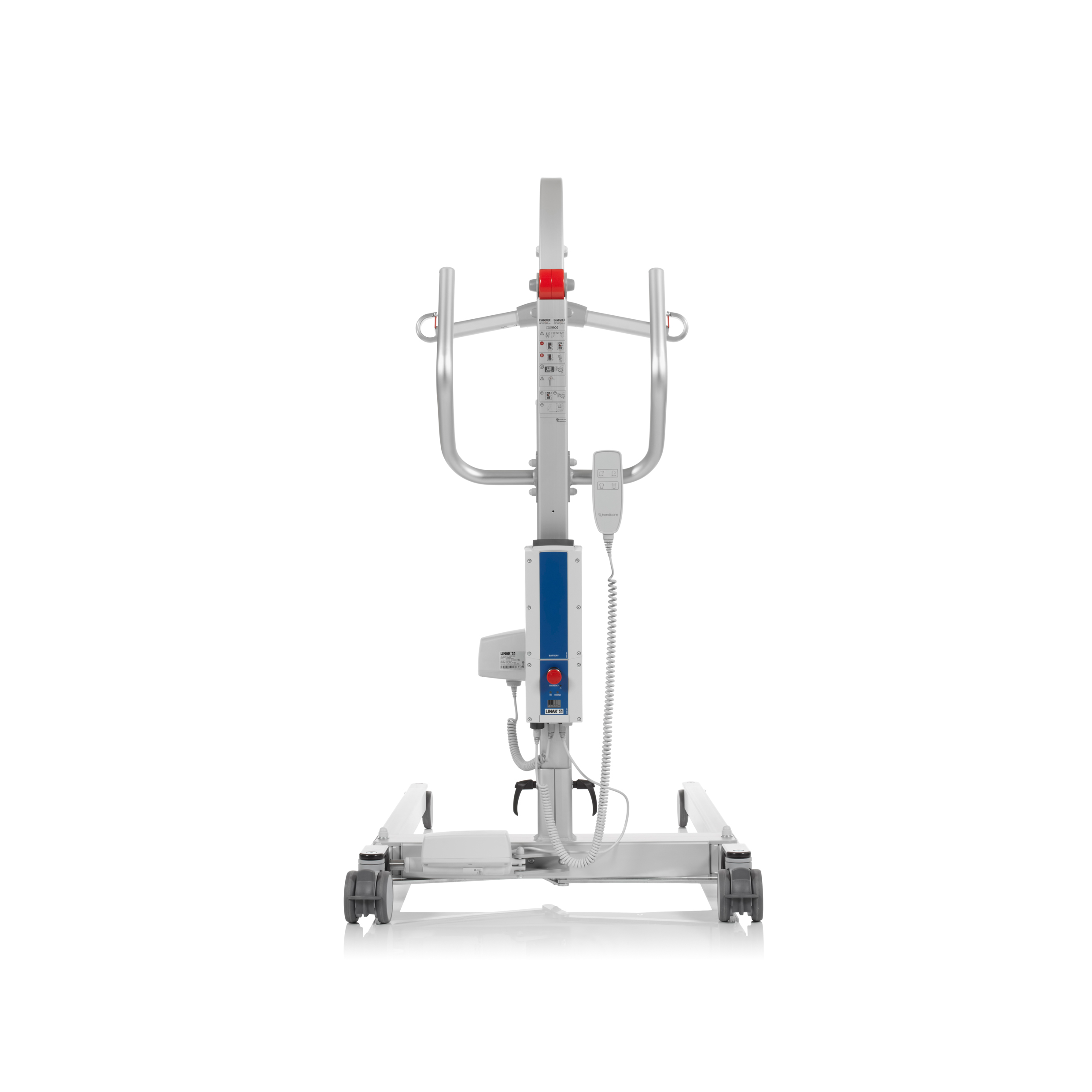

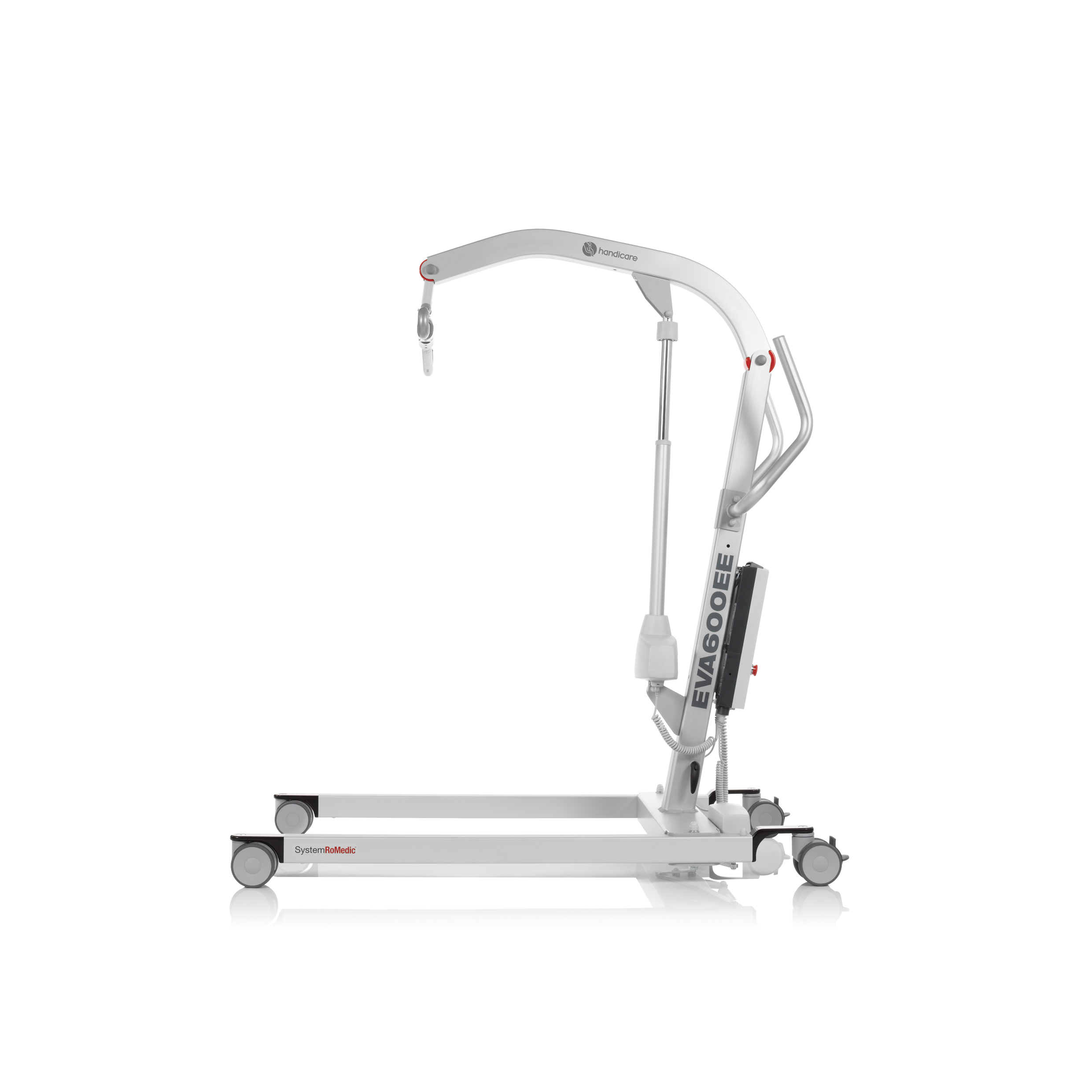

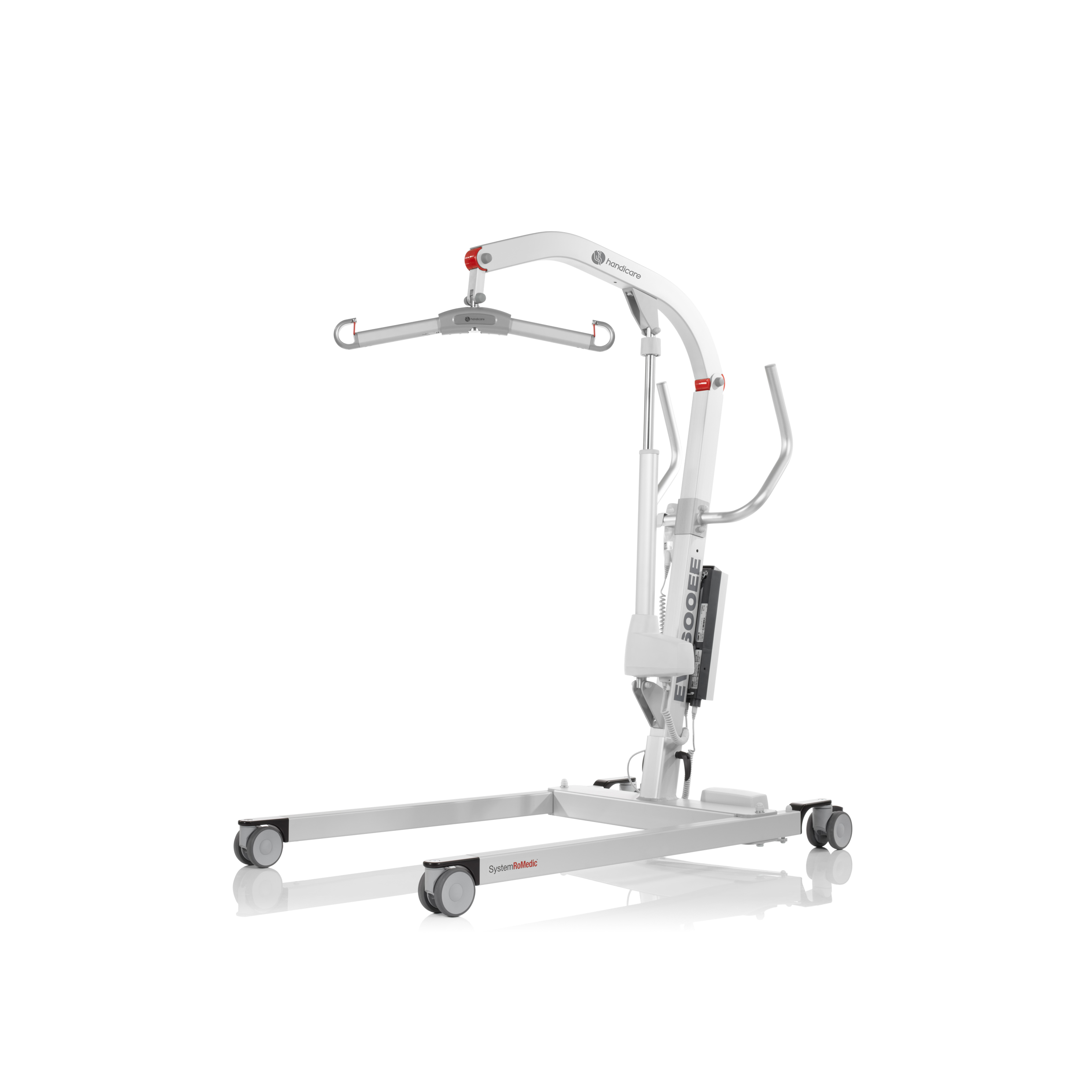

Eva600EEEva600EEEva600EEHandkontroll 4Knappar 1503 Videos All videos Eva600EE Extra strong and safe, for heavier users Eva600EE is a versatile mobile patient lift for all lifting situations, especially for heavier users weighing up to 270 kg/600 lbs. When used with Handicare’s functional and easy-to-use lifting accessories, Eva600EE is the right choice for lifting in connection with transfers to and from the floor, chair or bed, as well as for horizontal lifting and gait training. Special version with low legs Eva600EE is also available in a special version with low legs for use with lower beds. Both variants of Eva600EE are supplied complete and ready to use, fitted with a wider sling bar (600 mm/23.6″), providing a more open sling which is ideal for larger users, and a hand control. Extra strong and stable, SWL 270 kg/600 lbs Aluminium for low weight – easy to manoeuvre Mast adjustable to three height positions – large lifting range Height-adjustable handle bars – comfortable and ergonomic working positions Stable aluminium sling bar with reliable safety latches Wider sling bar providing a more open lifting sling – ideal for larger users Available with regular height or low legs for use with lower beds Encapsulated twin castors – easy rolling and maintenance-free The special version with low legs is fitted with double front castors with a diameter of 35 mm/1.4″ Electrical base widening Electrical emergency stop button readily available on the control box Electrical and manual emergency lowering High capacity battery with long service life Built-in charging Quick guide on the lift Many accessories for safe, easy and individually adapted lifting of users Both variants of Eva600 comply with requirements of the Medical Devices Directive for Class 1 products (MDD93/42/EEC). Handicare lifting slings and other accessories To create optimal solutions for users with different needs, Eva600EE can be used in combination with lifting slings and many clever and functional lifting accessories in Handicare’s Lifting range. AmbulationArm, for example, is an accessory which can be employed as armrests by the user during gait training but they can also be used by the carer for manoeuvring the lift. Click “Accessories” hereunder for more information. Send a messageName*Email* Country*MessageNameThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Turning In Bed From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Model specificationArt. no.6010000360100010NameEva600EEEva600EEDescriptionMobile lift with electrical base widening, complete with sling bar and hand controlMobile lift with electrical base widening, with low legs, complete with sling bar and hand controlBase width, outer dimensions750-1150 mm750-1150 mmBase width, inner dimensions650-1050 mm650-1050 mmTotal weight39 kg39 kgLifting range500-1810 mm500-1810 mmLifting speed without load35 mm/s35 mm/sBattery capacity2.9 Ah2.9 AhSling bar width600 mm600 mmProtection classIPX4IPX4SWL270 kg270 kgUnit11Front castors, diameter100 mm35 mmRear castors, diameter100 mm100 mmMaterialAluminiumAluminiumBase wideningElectricalElectricalEmergency loweringManual and electricalManual and electricalMaterial, sling barAluminiumAluminium DocumentsDocument nameTypeSize User Manual Eva (multilingual) 10 MB Care instructions (multilingual) 2 MB Re-conditioning EVA600EE EN 157 KB Safety information (multilingual) 2 MB Technical sheet Eva600EE high 965 KB Technical sheet Eva600EE Low legs 969 KB
