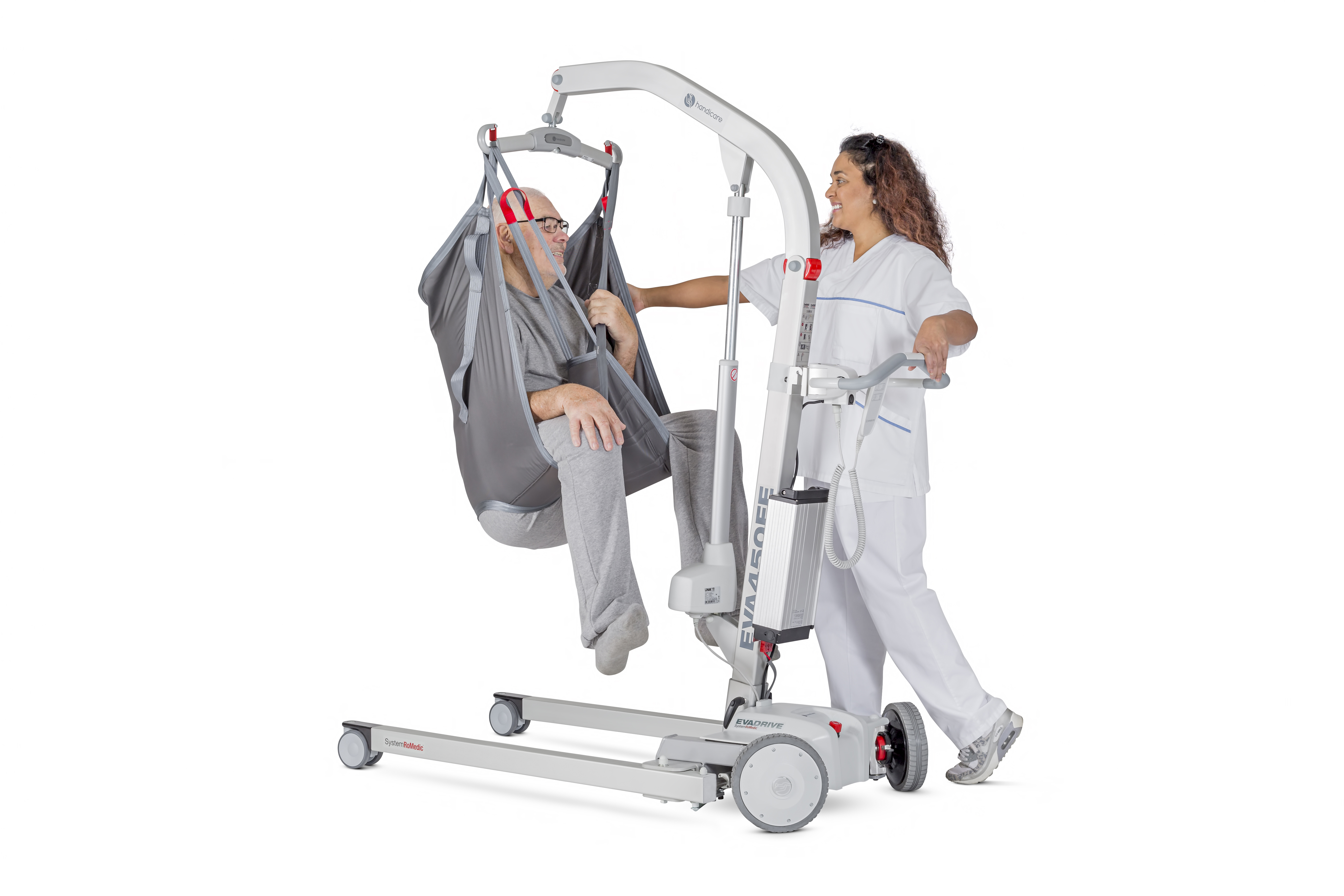

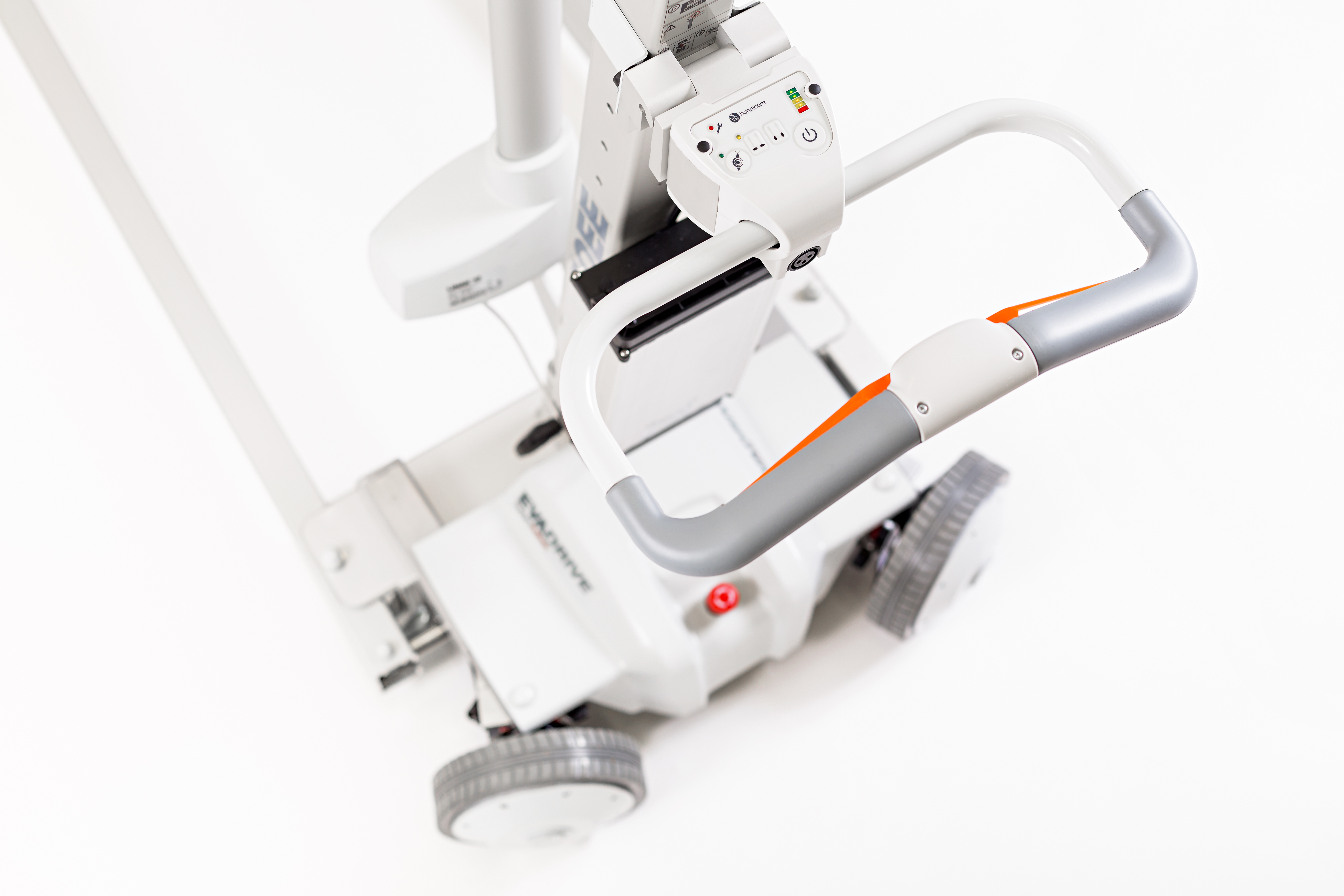

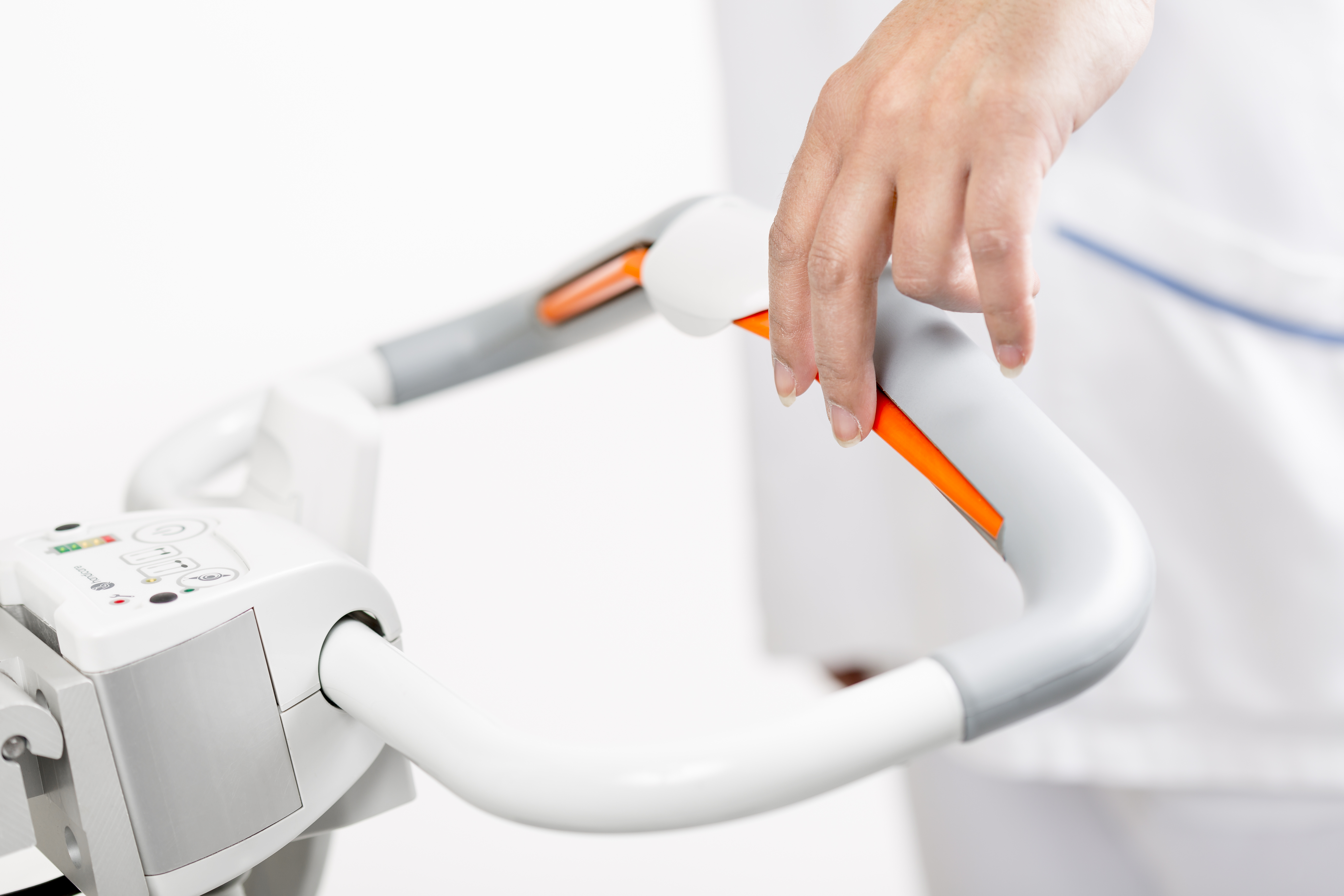

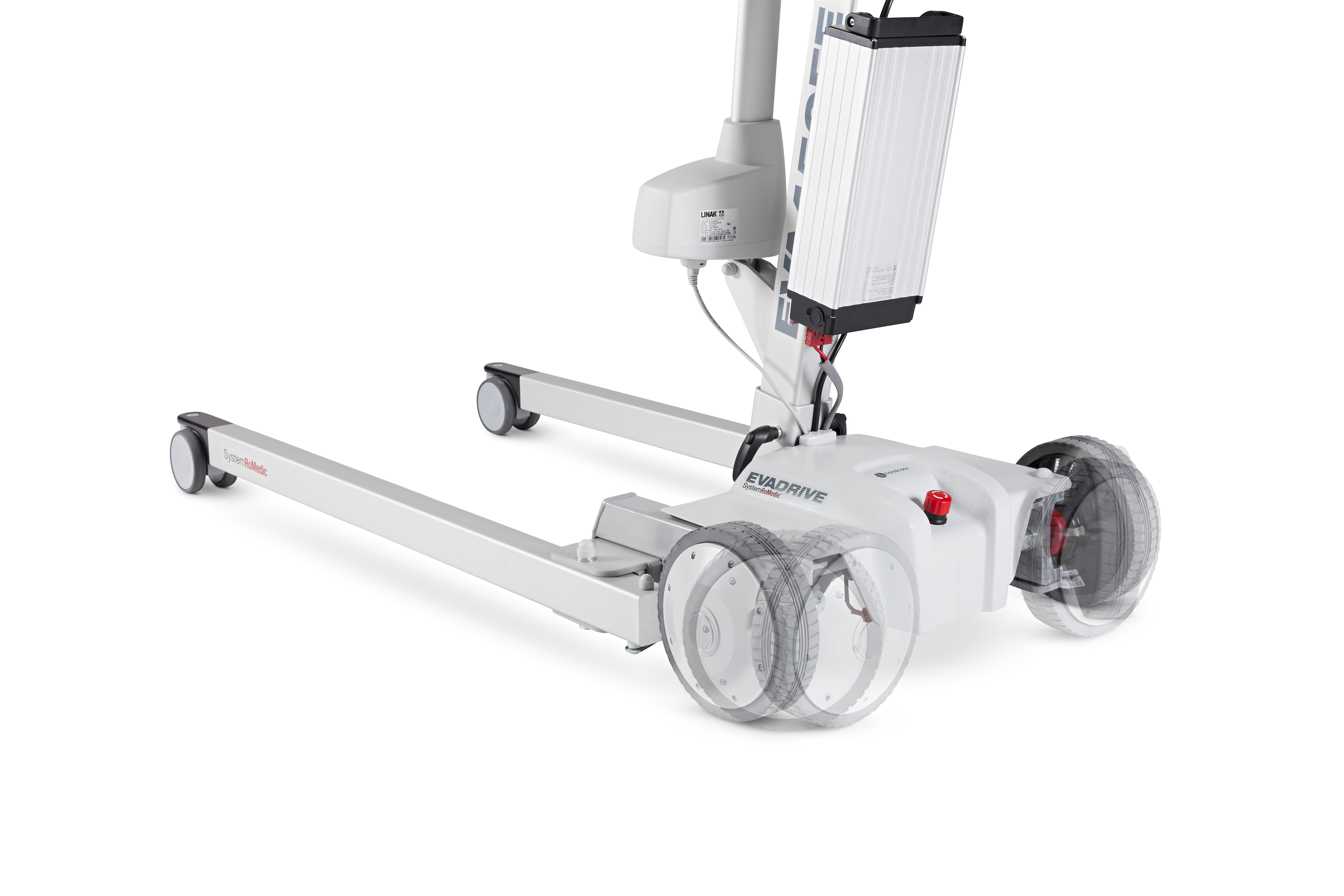

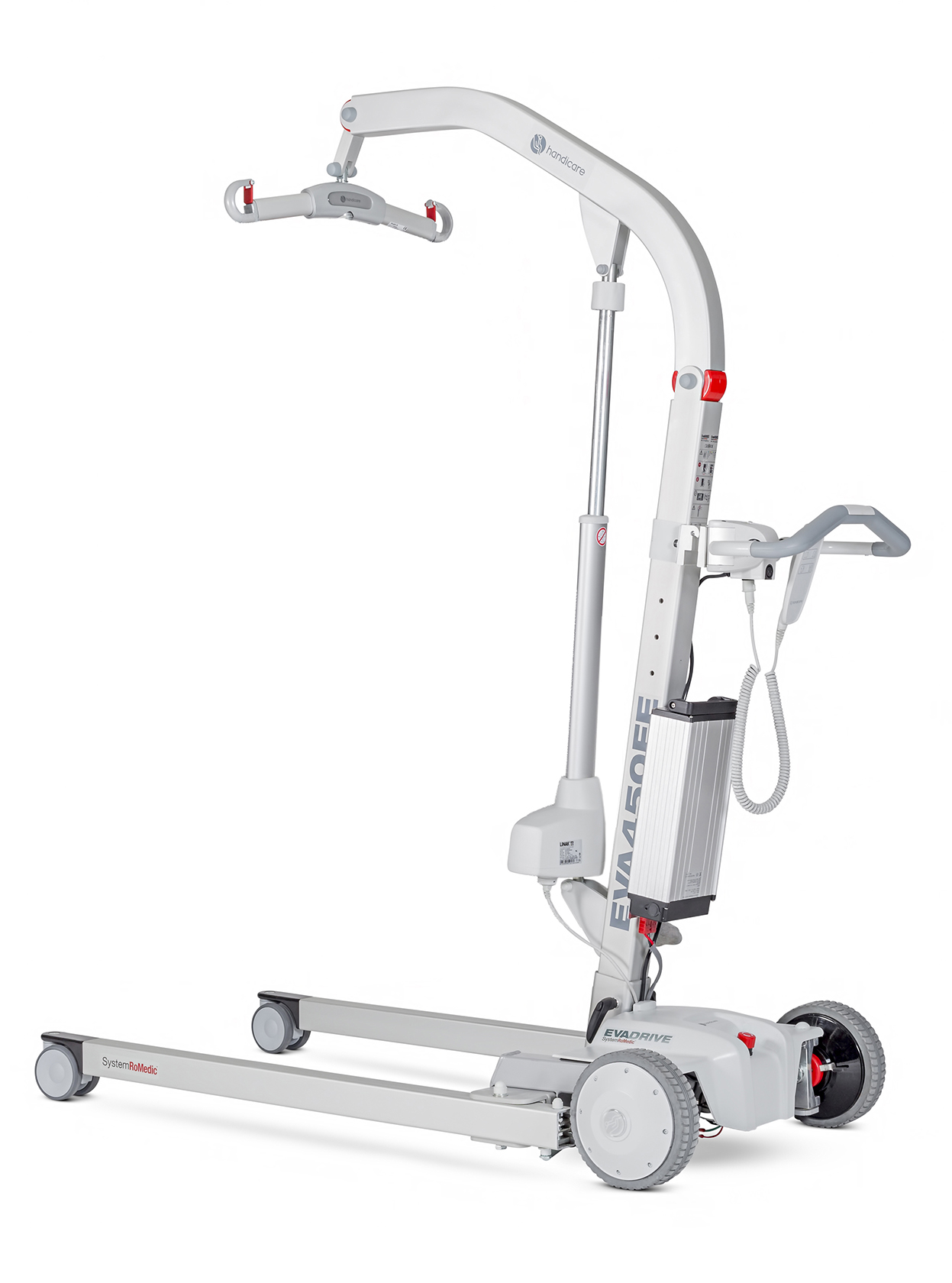

HA151203-017fix.jpgHA151203-037_pa.jpgHA151203-059.jpgHA151203-066.jpgHA151203-112-Funktion_NY_pa.jpgHA151203-126.jpg Videos All videos EvaDrive in use EvaDrive product presentation EvaDrive EvaDrive – a new innovative mobile lift which reduces the risks for carers and eliminates load injuries. EvaDrive is a new motorised lift which drastically reduces the force required for transfer and lifting of patients. Operating EvaDrive requires minimal strength and effort even in the narrowest of spaces. EvaDrive is operated intuitively with very little force. The control handle responds to gentle fingertip movements and is sufficiently precise to easily manoeuvre EvaDrive in very narrow spaces, for instance when repositioning patients in small hospital rooms. A gentle touch of the control handle and EvaDrive turns, reverses and moves forward with minimal effort. EvaDrive understands where you want to go – and takes you there. A single carer can easily operate the lift even with plus-size patients. Adapt your EvaDrive to fit your needs EvaDrive is available in two models: the Eva450Drive which is intended for patients weighing up to 450 lb and the Eva600Drive for patients weighing up to 600 lb. Both models are easily converted with our conversion kit, which can be mounted in under 20 minutes. Features Intuitive control panel Sensitive control handle Forceful lithium battery Turnable back wheels Why EvaDrive was created The costs associated with manual-handling incidents, especially back injuries, within the health care sector, are increasing with the number of patients who require transfer assistance. Additional causes for the high number of load injuries are inadequate budgets, reduced care packages and the increase in plus-size patients. Our goal is to reduce the risk for carers and avoid load injuries, which is why we created EvaDrive; a new, innovative lifting aid. Handicare lift slings and other equipment In combination with the Handicare lift slings and other equipment, EvaDrive is the optimal choice for lifting and transferring patients as well as for horizontal repositioning and gait training. Send a messageName*Email* Country*MessageEmailThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Turning In Bed From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Model specificationArt. no.6090000260900003NameEva450DriveEva600DriveDescriptionEvaDrive is a motorized mobile lift which greatly reduces the force required to maneuver the patient while in the lift. EvaDrive runs almost effortless, even in narrow spaces. EvaDrive operates intuitively and almost without force.SWL205 kg270 kgBase width, outer dimensions685-980 mm750-1150 mmBase width, inner dimensions585-880 mm650-1050 mmTotal weight58 kg64 kgTotal weight excluding batteries54 kg60 kgTotal weight including batteries58 kg64 kgFront castors, diameter100 mm100 mmRear castors, diameter200 mm203 mmLifting speed without load35 mm/s35 mm/sDriving speed7 km/hBattery24 V, 17,6 Ah Li-Ion24 V, 17,6 Ah Li-IonSling bar width450 mm600 mmProtection classIP X4IP X4Unit11MaterialAliminium/steelEmergency loweringManual DocumentsDocument nameTypeSize EvaDrive_EN_INT_8sid_1601_low.pdf 385 KB EvaDrive_SE_8sid_1604_low.pdf 387 KB EvaDrive manual 7 MB
