Fixed arm supports

Reliable, fixed support beside the toilet or in the shower

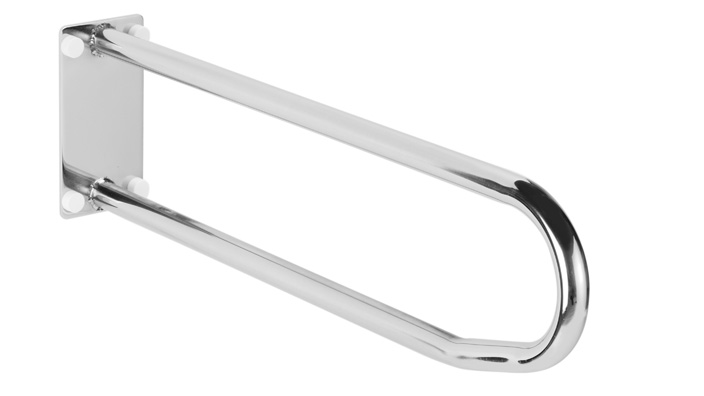

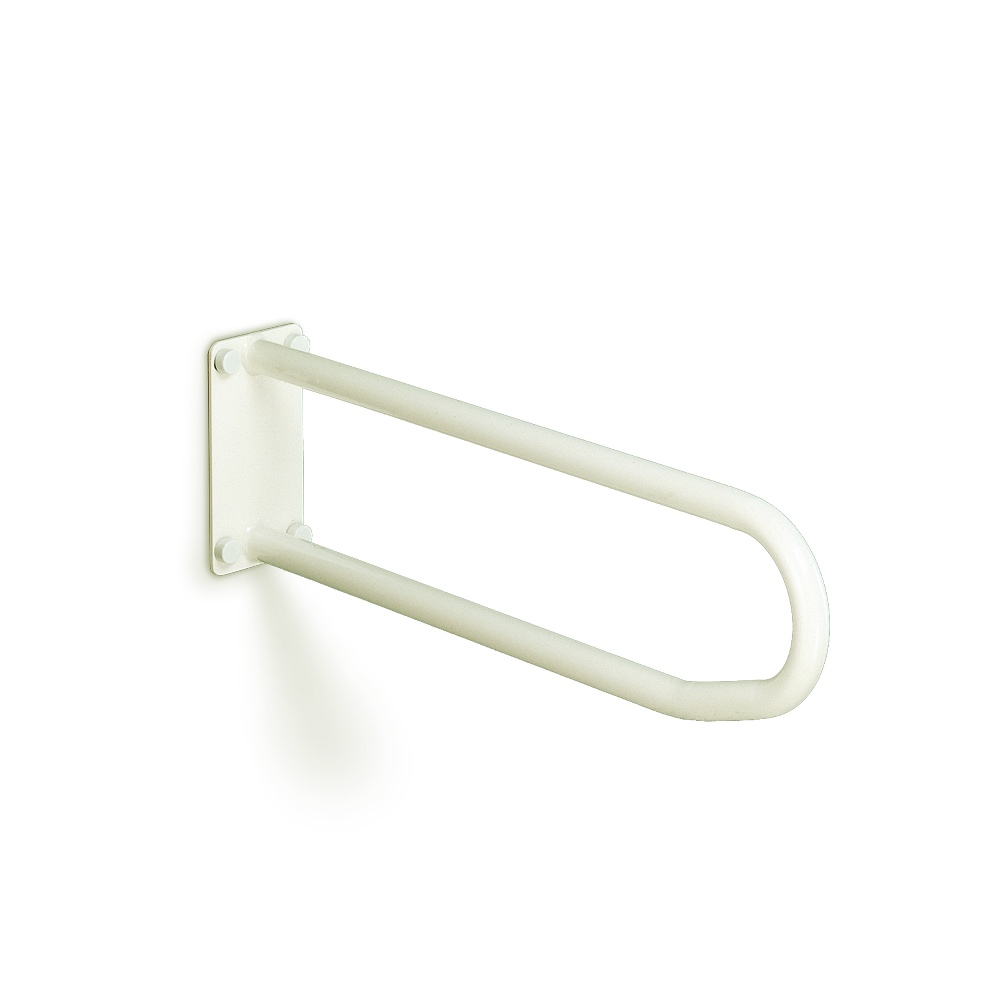

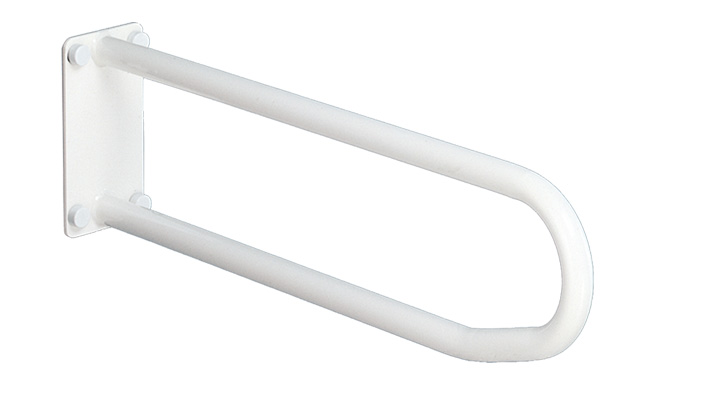

The fixed arm support of Handicare, which is available in five different lengths, provides extremely secure support beside the toilet as well as in the shower. The arm support features a watertight construction with a high static and sideways load capacity and can withstand heavier loads than, for example, the armrests of most shower seats.

Handicare’s Fixed arm support features a clean design with a looped double tube with a round shape and an ergonomic diameter providing a firm grip for both large and small hands. The looped double tube makes it easier for the user to reach, grip and hold onto the front of the arm support during a forward transfer and prevents the hand from slipping off the rail. This design also prevents clothing from getting caught by the tube.

Fixed arm support is used for support when sitting down on or getting up from a toilet or shower seat and for support while standing or while adjusting clothing. The arm support is always in the same, horizontal position, which provides some users with an additional sense of security.

Order information

The fixed arm support is available in five different lengths and in several materials; coated steel  and coated stainless steel and polished stainless steel. The fixed arm support is only available in the color white. For complete article numbers, please consult the Order information document which is available as a pdf in the “Documentation” section hereunder.

  • 5 different lengths, from 500 mm to 900 mm, enable the perfect fit for the depth of any toilet while leaving room enough for the various tasks to be performed
  • Extremely secure support beside the toilet and in the shower, on both or either side
  • Always in the same, horizontal position, providing support for sitting and standing
  • Looped double tube provides several gripping options
  • Ergonomic diameter; 28.6 mm (steel) and 28 mm (stainless steel), provides a secure grip
  • Durable steel or stainless steel
  • Watertight construction
  • Hygienic design with rounded shapes and sleek surfaces
  • Very easy to install, Wall mounting set (art. no. LI2806.0000-00) is available as an accessory
  • Supplied complete with Insulation set M8 x 4 (art.no. LI2880.0006-02), which provides for electrical insulation and covering of fixing points for a stylish look and to make the arm support easy to keep clean
  • Extremely secure, provides reliable support for users weighing up to 150 kg
  • Maximum sideways load: 100 kg
  • The surface area of the stainless steel wall plate ensures that the load is well distributed

Combinations and accessories for indiviually adapted bathroom solutions

Handicare’s range offers a wide choice of safe and comfortable assistive devices and practical accessories; products that can be supplied in several materials and colours and that can be combined in an endless number of ways to provide for increased versatility and usability and for the creation of individually adapted support solutions for different locations and user needs. For example, all variants of Fixed arm support can be fitted with a toilet roll holder, which is available as an accessory. The Soft armrest accessory provides extra comfort and an improved anti-slip grip.

Send a message

  • This field is for validation purposes and should be left unchanged.
Model specification
Art. no.LI2601.050x-xxLI2601.060x-xxLI2601.070x-xxLI2601.080x-xxLI2601.090x-xx
NameFixed arm supportsFixed arm supportsFixed arm supportsFixed arm supportsFixed arm supports
DescriptionFixed arm support, total length 500 mm, incl. Insulation set M8 x 4Fixed arm support, total length 600 mm, incl. Insulation set M8 x 4Fixed arm support, total length 700 mm, incl. Insulation set M8 x 4Fixed arm support, total length 800 mm, incl. Insulation set M8 x 4Fixed arm support, total length 900 mm, incl. Insulation set M8 x 4
Coated steel white: LI2601.0501-02Coated steel white: LI2601.0601-02Coated steel white: LI2601.0701-02Coated steel white: LI2601.0801-02Coated steel white: LI2601.0901-02
Polished stainless steel white plastic flanges and covers: LI2601.0502-00Polished stainless steel white plastic flanges and covers: LI2601.0602-00Polished stainless steel white plastic flanges and covers: LI2601.0702-00Polished stainless steel white plastic flanges and covers: LI2601.0802-00Polished stainless steel white plastic flanges and covers: LI2601.0902-00
Coated stainless steel white: LI2601.0504-02.Coated stainless steel white: LI2601.0604-02.Coated stainless steel white: LI2601.0704-02.Coated stainless steel white: LI2601.0804-02.Coated stainless steel white: LI2601.0904-02.

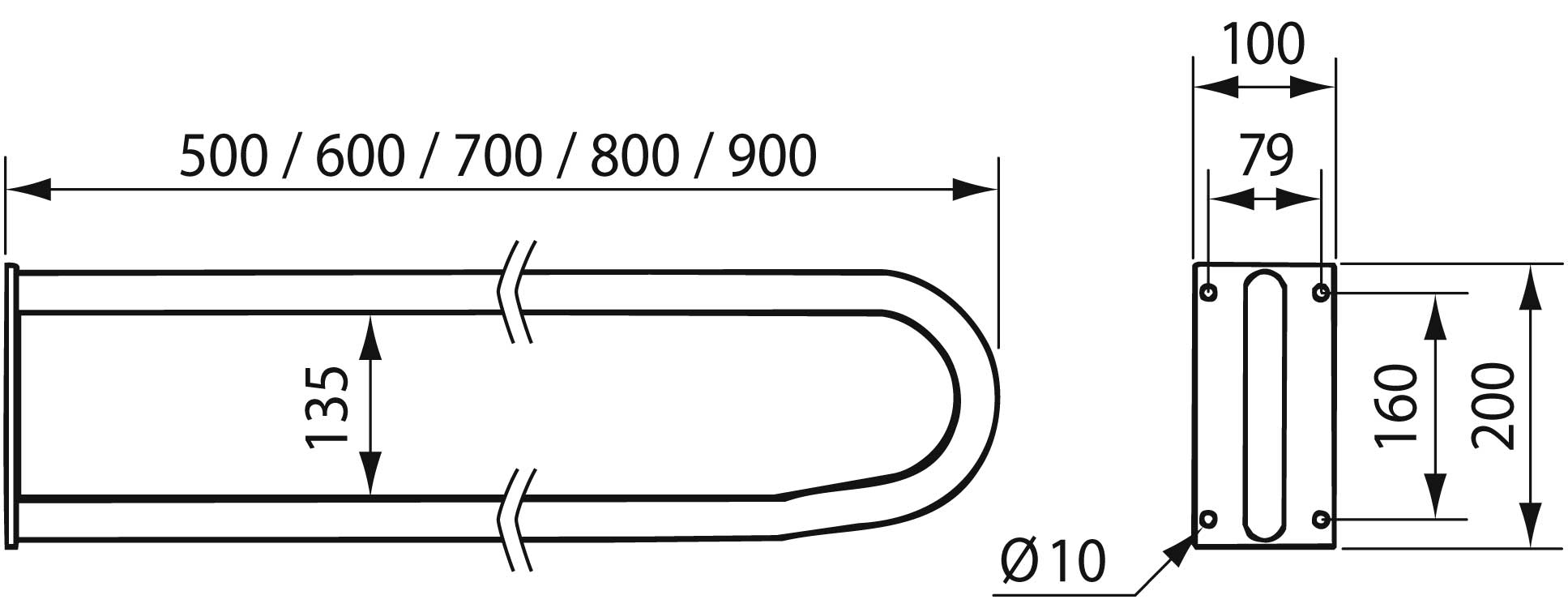

Total length500 mm600 mm700 mm800 mm900 mm
Tube diameter28-28.6 mm28-28.6 mm28-28.6 mm28-28.6 mm28-28.6 mm
Wall plate height200 mm200 mm200 mm200 mm200 mm
Wall plate width100 mm100 mm100 mm100 mm100 mm
Max. user weight150 kg150 kg150 kg150 kg150 kg
Max. sideways load100 kg100 kg100 kg100 kg100 kg
