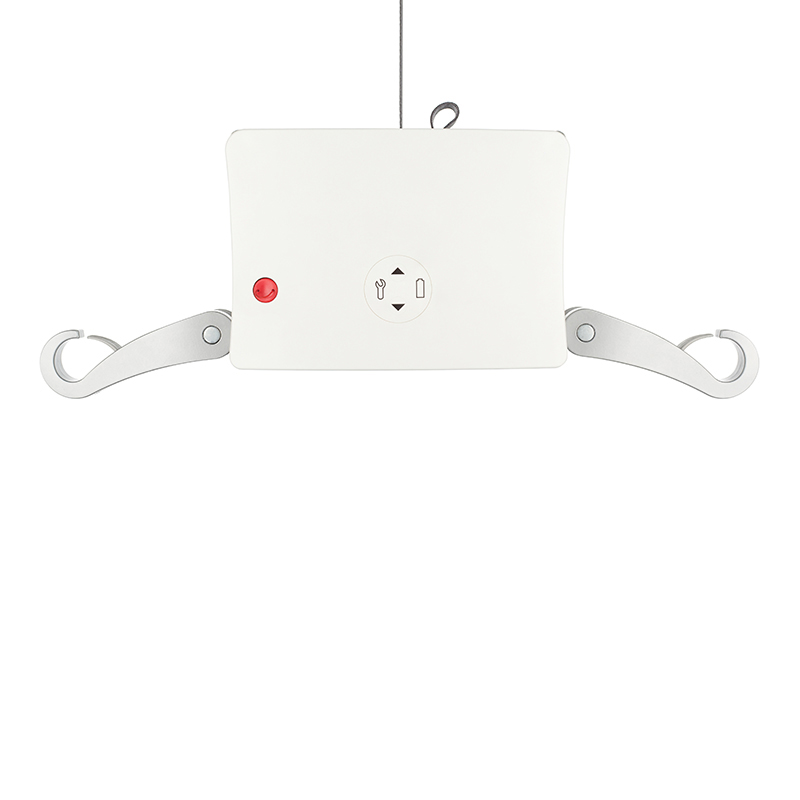

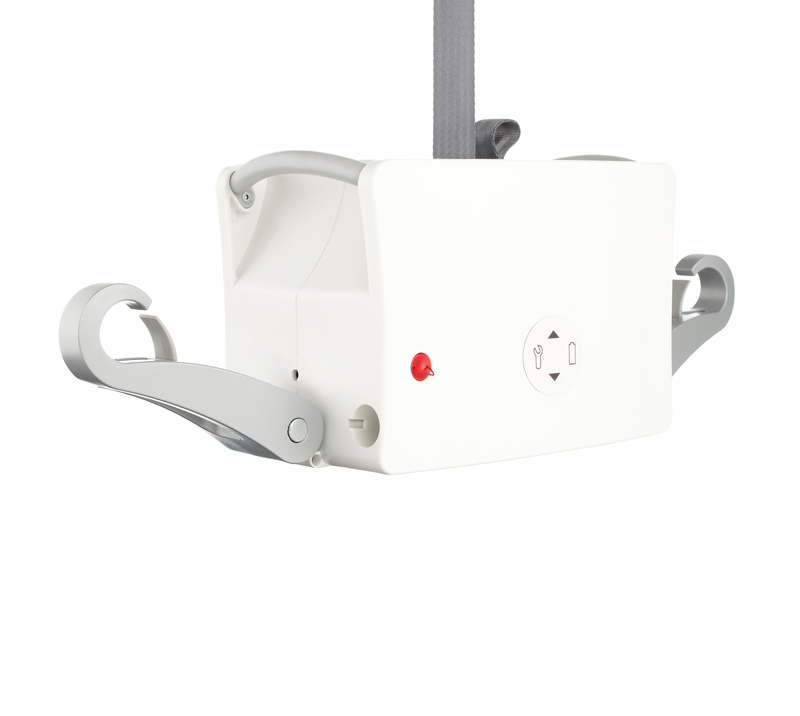

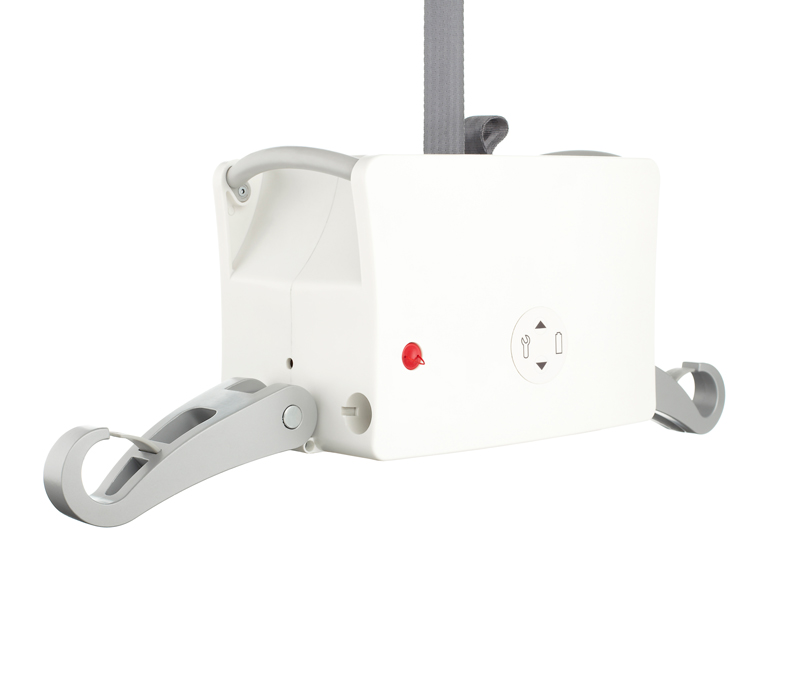

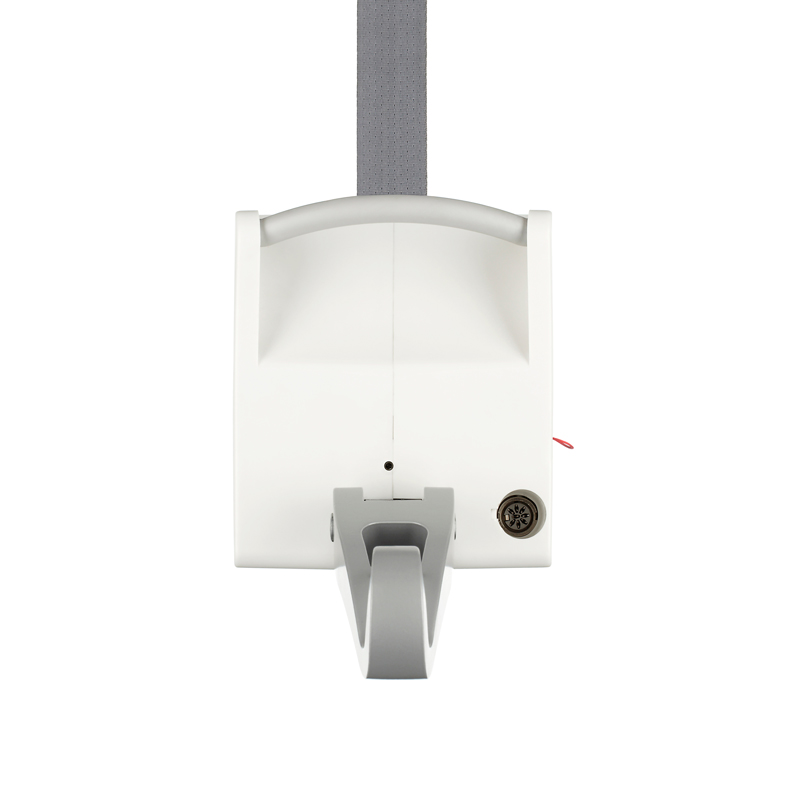

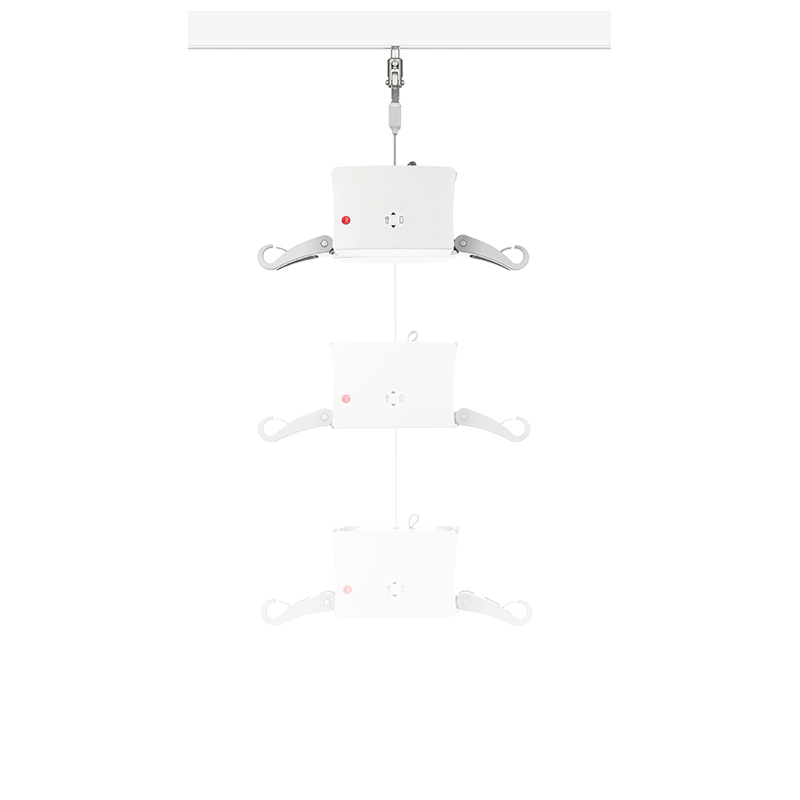

RisePortoRisePorto 1RisePorto 2RisePorto 3RisePorto 4RisePorto 5RisePorto 6RisePorto 7RisePorto 8 RisePorto 300/450 Safe and flexible lifting solutions for all settings and situations Discountinued RisePorto is a portable ceiling lift unit featuring unusally small measurements and extremely low weight. At the same time, it is both strong and safe. When used with the appropriate lifting accessories, RisePorto provides secure, comfortable and individually adapted lifting of users in connection with seated or horizontal transfers to and from the bed, wheelchair or toilet. RisePorto offers a large lifting range and the possibility of both very low and very high lifting, making it an excellent solution also for lifting from the floor and for gait training and standing training. RisePorto can also be used for convenient transfer of users from one room to another. Anywhere and everywhere RisePorto can be used in all settings and in all types of rooms, both on permanent rail systems and on freestanding lift stands. A handle for mounting, which is available as an accessory, facilitates mounting and dismantling of the lift unit on the rail system, making it easy to transfer RisePorto between different rail systems and rooms. As the same lift unit can be used in many locations and for several users, RisePorto also provides a high degree of utilization which, in turn, prevents manual lifting and work-related injuries and accidents. The design and features of RisePorto make it the perfect assistive device for home care, institutional care and other forms of residential care, but RisePorto actually functions equally well in all settings. In small rooms, where space is limited, RisePorto is a perfect solution. Attractive and clever RisePorto features unusually small measurements, extremely low weight and a design which is not only attractive but also clever and functional. The handy size offers many practical advantages. Combined with the modern and elegant design of the lift unit, it also contributes to the creation of professional and highly functional care environments with a harmonic and human atmosphere. RisePorto is a modern and stylish alternative providing safe and flexible lifting solutions characterized by performance, simplicity and comfort. Two models with different lifting capacity RisePorto is available in two models with different lifting capacity. RisePorto300 is intended for users weighing up to 140 kg/300 lbs and RisePorto450 is intended for users weighing up to 205 kg/450 lbs.Both models are supplied complete with hand control and charger. The trolley is ordered separately. The next generation is here The new versions of RisePorto offer a number of new features and advantages, for example a new hook for easy mounting and dismantling. The hook is fitted with a new plastic casing which effectively prevents the lift strap from jamming. The new versions are also fitted with a new, safer and even more easy-to-use emergency stop button. In addition to this, both models of RisePorto still offer the following features and advantages: Portable, compact and light-weight Integrated, foldable sling bar with flexible safety latches Integrated handle bars Room transfer loop Moves silently and gently Very easy to use Ergonomic and easy-to-use hand control Control panel on the lift unit Manual emergency stop Electrical and manual emergency lowering Overload protection Over speed protection Efficient strap control Slack strap switch High capacity, environmentally friendly NiMH battery Many accessories for safe, easy and individually adapted lifting of users Handicare lifting slings and other accessories To create optimal solutions for users with different needs, both models of RisePorto can be used in combination with lifting slings and many clever and functional lifting accessories in Handicare’s Lifting range. Click “Accessories” and “See also” hereunder for more information. RisePorto meets the requirements of the Medical Devices Directive for Class 1 products 93/42/EEC. Send a messageName*Email* Country*MessageNameThis field is for validation purposes and should be left unchanged.

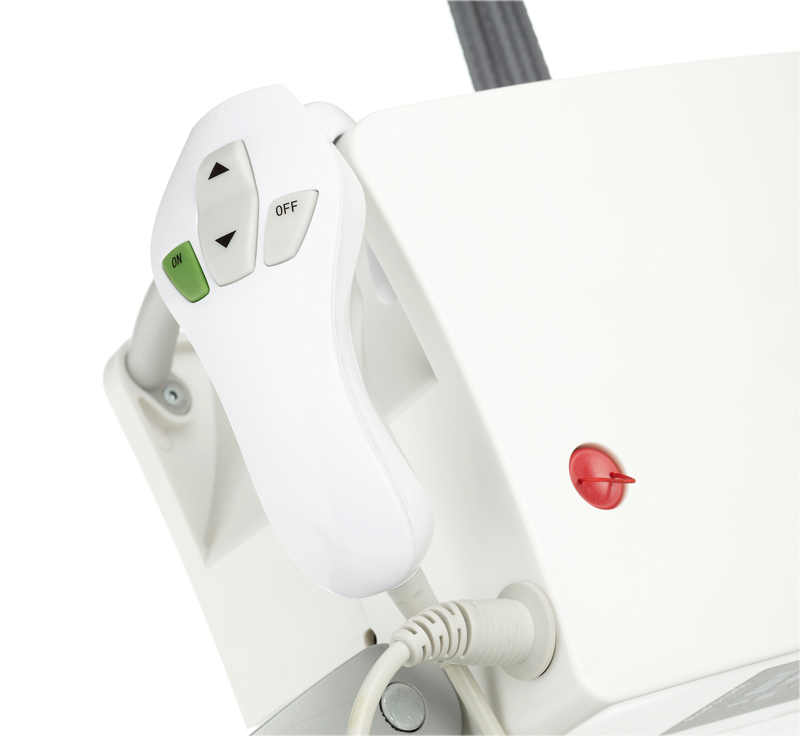

Application areas Model specification Documents Application areas Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Turning In Bed From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Positioning In Chair Model specificationArt. no.5020001550200016NameRisePorto300/450RisePorto300/450DescriptionPortable ceiling lift unit with integrated sling bar, complete with hand control and charger. Trolley ordered separately.Portable ceiling lift unit with integrated sling bar, complete with hand control and charger. Trolley ordered separately.SWL205 kg140 kgTotal length288 mm288 mmTotal width152 mm152 mmTotal height153 mm153 mmTotal weight5.8 kg5.8 kgLifting range1700 mm1700 mmLifting speed without load30 mm/s30 mm/sLifting speed with load18 mm/s23 mm/sSound level with load57 db(A)57 db(A)BatteryNiMH 26.4V 2.7AhNiMH 26.4V 2.7AhSling bar width458 mm458 mmProtection class, lift unitIPX3IPX3Protection class, hand controlIPX4IPX4Unit11Material, chassisAluminiumAluminiumMaterial, coverNon flammable ABS plasticNon flammable ABS plasticTransfer in railManualManualEmergency loweringElectrical and manualElectrical and manualEmergency stopManualManualHand controlElectrical, 4 buttonsElectrical, 4 buttonsMaterial, sling barAluminiumAluminiumEfficient strap controlStandardStandard DocumentsDocument nameTypeSize Product brochure RisePorto EN INT 357 KB Care instructions (multilingual) 2 MB Technical data sheet RisePorto300 EN INT 127 KB Safety information (multilingual) 2 MB Technical data sheet RisePorto450 EN INT 136 KB User manual RisePorto (multilingual).pdf 9 MB Product catalogue SystemRoMedic EN INT
