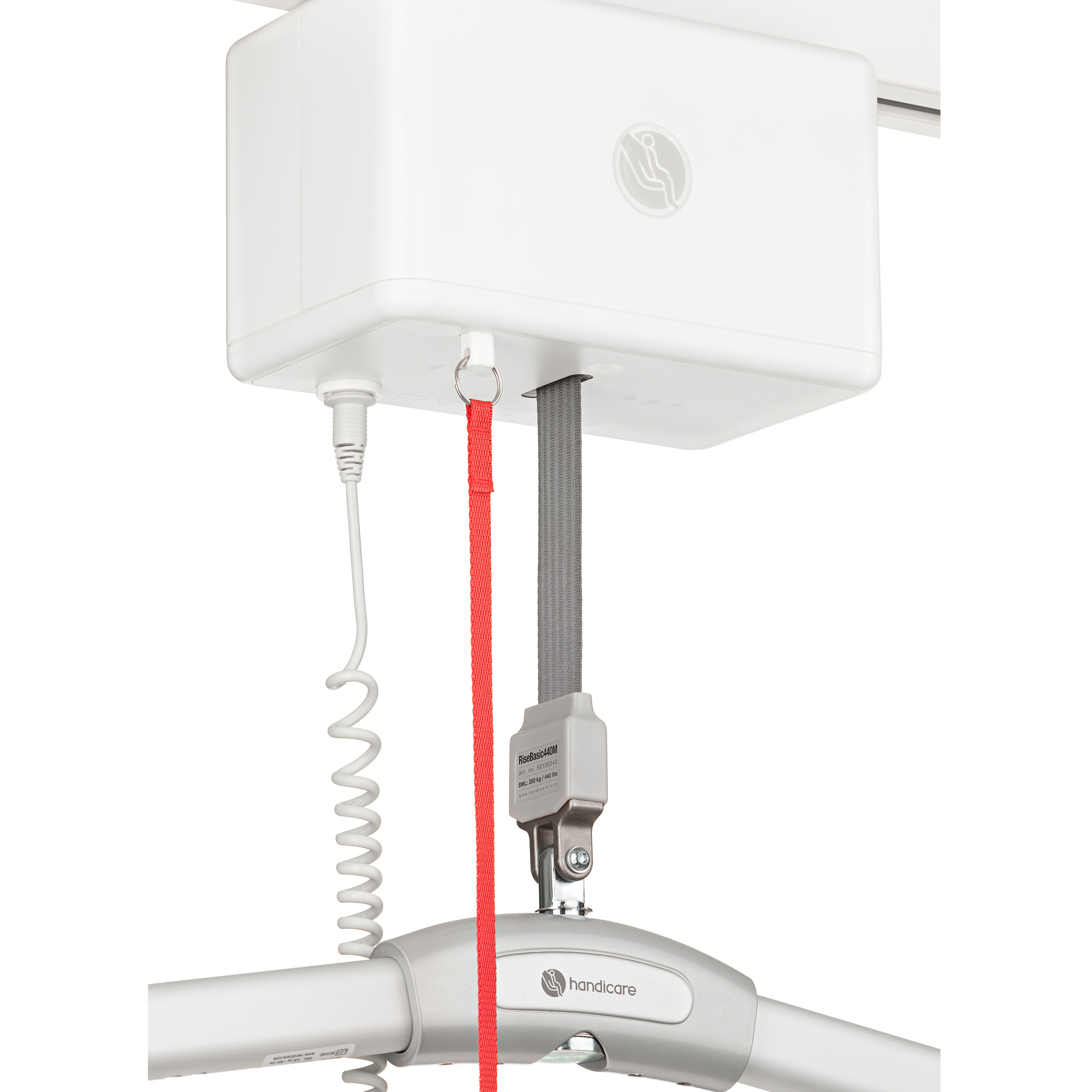

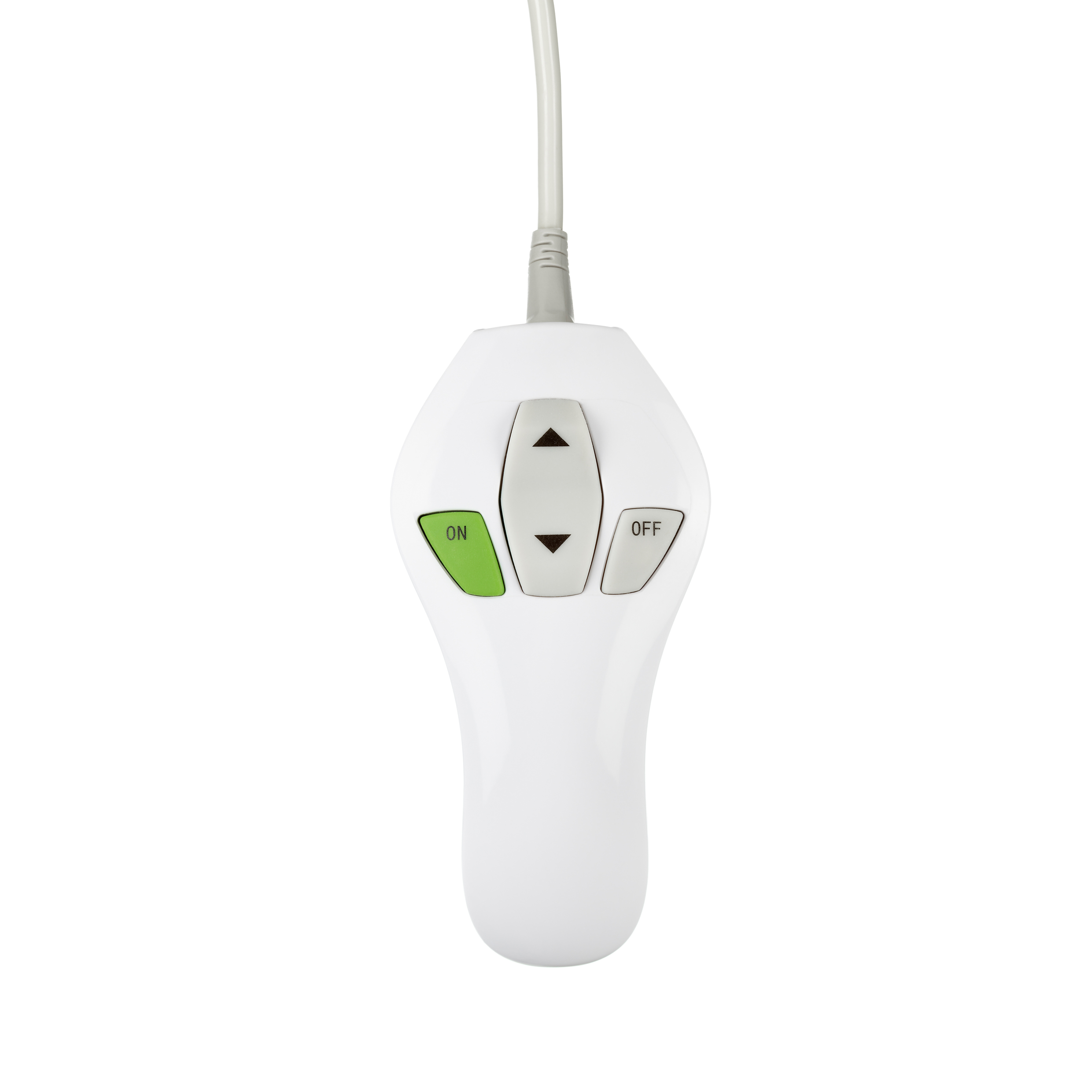

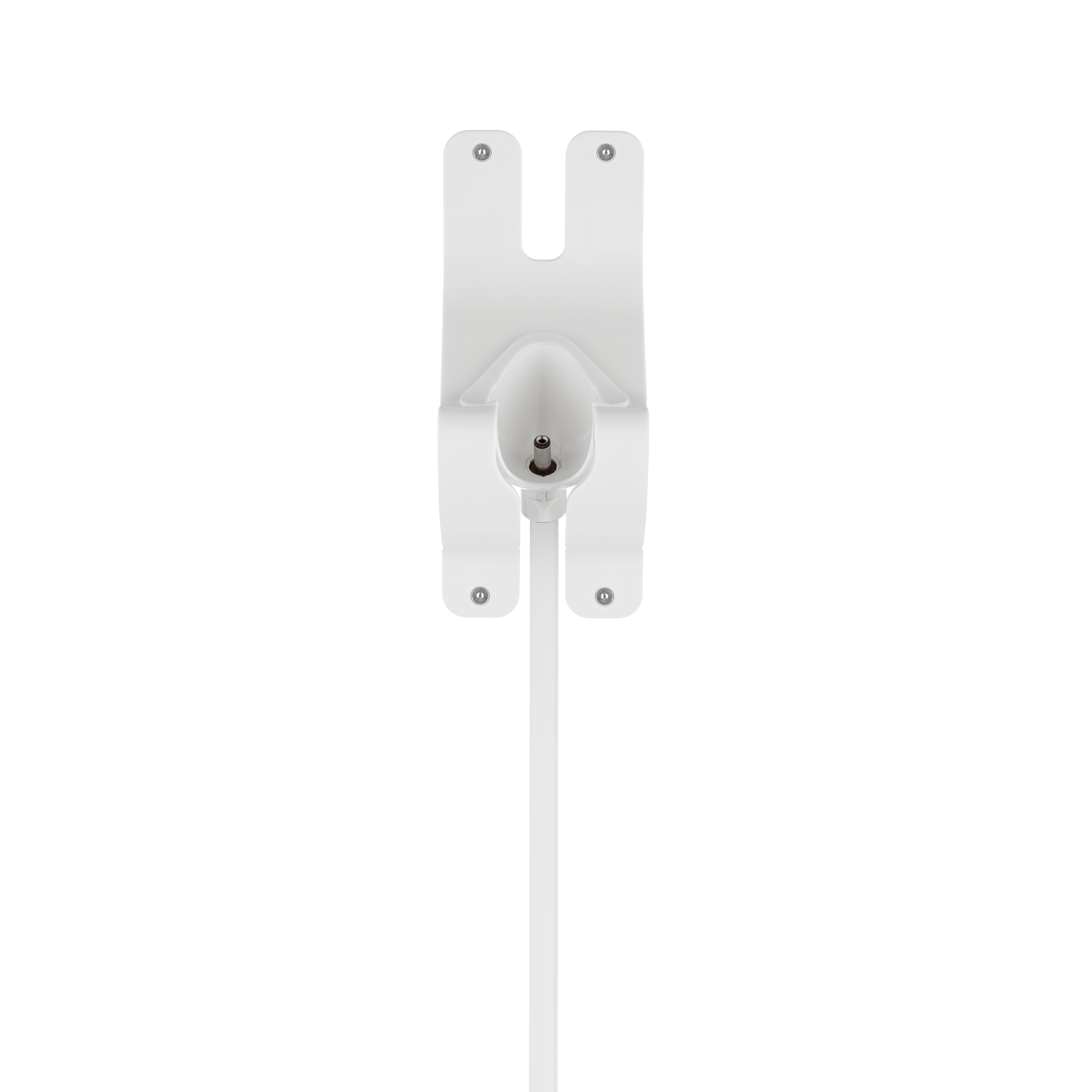

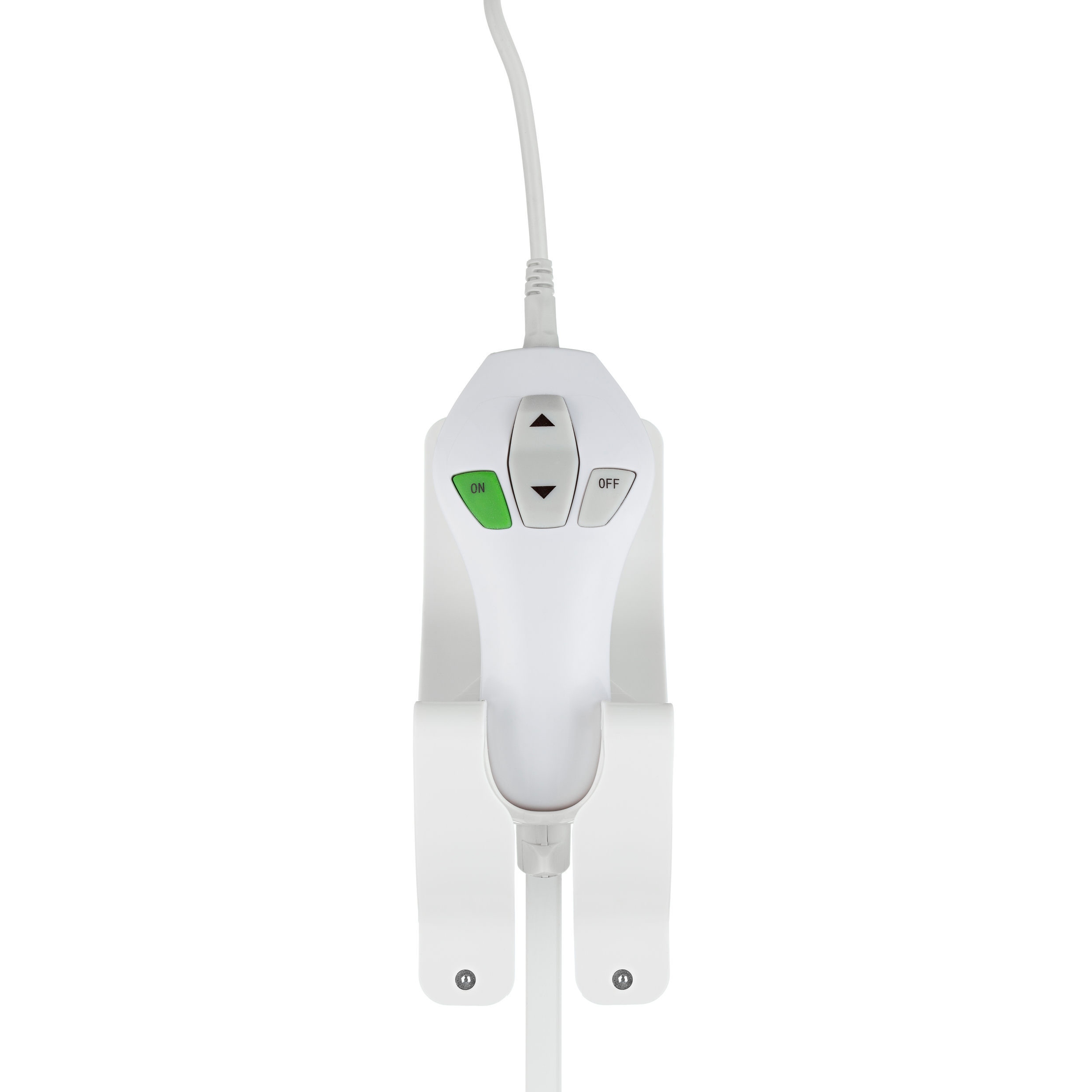

RiseBasicRiseBasicRiseBasicRiseBasicRiseBasic Hand controlHand control chargingHand control charging RiseBasic 300M/440M Safe and easy lifting in all situations RiseBasic is a modern and stylish stationary ceiling lift unit featuring many functions that maximize comfort and security during lifting, both for the user and for the caregiver. When used with the appropriate lifting accessories, RiseBasic provides secure, comfortable and individually adapted lifting of users in connection with seated or horizontal transfers to and from the bed, wheelchair or toilet. RiseBasic offers a large lifting area and the possibility of both very low and very high lifting, making it an excellent solution also for lifting from the floor and for gait training and standing training. RiseBasic can also be used for convenient transfer of users from one room to another. Two models with different lifting capacity RiseBasic is available in two models; RiseBasic300M, with a lifting capacity of 138 kg/300 lbs, and RiseBasic440M, with a lifting capacity of 200 kg/440 lbs. For all rail systems Both models of RiseBasic are manually transfered along the rail (M for manual) and can be used on all types of rails, both permanent rail systems and portable, freestanding lift stands. Switch manoeuvring As an optional extra, RiseBasic can also be equipped with electrical switch manoeuvring for increased convenience and ease-of-use. With this accessory, the caregiver is able to manoeuvre turntables in the rail system using the hand control. Hand control charging RiseBasic features easy and convenient hand control charging as standard. The charging station is integrated in a small and discreet holder and parking place for the hand control. The holder is easily installed on the wall, in convenient proximity of the ceiling lift unit’s parking place. In-rail and end point charging As an optional extra, RiseBasic can be equipped with a unique charging solution, with one trolley for two charging options. With this accessory, the ceiling lift unit can be set to function either with end point charging or with in-rail charging. If necessary, the settings can easily be altered. Compact and light-weight RiseBasic features unusually small measurements and extremely low weight. The handy size offers many practical advantages. And combined with the modern and elegant design of the ceiling lift unit, it also contributes to the creation of professional and highly functional environments with a harmonic and human atmosphere. Compact and extremely light-weight Modern, elegant and hygienic design Very easy to use, providing safe working conditions and allowing the caregiver to remain close to the user throughout the entire lifting procedure Moves silently and gently, soft start and stop Ergonomic and easy-to-use hand control On/Off-button on the hand control prevents unauthorized use of lift functions Switch manoeuvring, for manoeuvring of turntables using the hand control, is available as an accessory Manual emergency stop Electrical and manual emergency lowering Overload protection Over speed protection Slack strap switch Efficient strap control preventing accidental twisting of the lift strap High capacity, long lasting batteries and an energy-saving electric motor Easy and convenient hand control charging as standard A unique charging solution, with one trolley for two charging options (in-rail/end point charging) is available as an accessory Discreet information panel Easy to service Diagnostics, a special software available as an accessory allows a PC to access further information about the ceiling lift unit Many accessories for safe, easy and individually adapted lifting of users Handicare lifting slings and other accessories To create optimal solutions for users with different needs, both models of RiseBasic can be used in combination with lifting slings and many clever and functional lifting accessories in Handicare’s Lifting range. Click “Accessories” and “See also” hereunder for more information. RiseBasic meets the requirements of the Medical Devices Directive for Class 1 products 93/42/EEC. Send a messageName*Email* Country*MessageCommentsThis field is for validation purposes and should be left unchanged.
Application areas Model specification Documents Application areas Turning In Bed From Bed To Commode Up From The Floor From Bed To Wheelchair From Wheelchair To Toilet Higher Up In Bed Lying To Sitting Positioning In Chair Rising To Sitting Down Standing Training Supine Transfer Support For Gait Training Model specificationArt. no.5010003950100040NameRiseBasic300MRiseBasic440MDescriptionWith hand control and charger. Sling bar ordered separately.With hand control and charger. Sling bar ordered separately.Item No.5010005950100040SWL138 kg200 kgUnit11Total length266 mm266 mmTotal width151 mm151 mmTotal height156 mm156 mmTotal weight6.8 kg6.8 kgLifting range2400 mm2400 mmLifting speed without load30 mm/s30 mm/sLifting speed with load20 mm/s20 mm/sSound level with load51 db(A)51 db(A)Batteries2 x 12V 2.9 Ah2 x 12V 2.9 AhProtection class, lift unitIP20IP20Protection class, hand controlIPX4IPX4Material, chassisAluminiumAluminiumMaterial, coverNon flammable ABS plasticNon flammable ABS plasticEmergency loweringElectrical and manualElectrical and manualEmergency stopManualManualHand controlElectrical, 4 buttonsElectrical, 4 buttonsHand control chargingStandardStandardIn-rail chargingOptional, accessoryOptional, accessoryEnd point chargingOptional, accessoryOptional, accessoryEfficient strap controlStandardStandardTransfer in railManualManual DocumentsDocument nameTypeSize Product brochure RiseBasic EN INT 1 MB Technical data sheet RiseBasic300M EN INT 559 KB Safety information (multilingual) 2 MB Technical data sheet RiseBasic440M EN INT 519 KB Technical information and accessories - overview (multilingual) 687 KB RiseBasic User Manual v13 multilingual 10 MB
